Concord transformer pro [12/19] _ securing the child with the three point belt from 15 to 36 kg

pressedwhilstmovingtheheadsection(01) into the

requiredposition.TheCONCORDTRANSFORMER

canbecontinuouslyadjustedtotherightsizeandis

lockedintothecurrentpositionwhentheadjustment

button (04) is released.

4746

The shoulder belt guide (06)shouldbeslightlyabovethetop

ofthechild‘sshoulder.Atthesametime,theshoulderbelt

shouldpasscentrallybetweenthechild‘sneckandtheouter

edge of the shoulder.

To adjust the CONCORD

TRANSFORMER to the size of

thechild,gentlypressthehead

section (01) down. Now press the

sizeadjustmentbutton(04) on the

back of the backrest and keep it

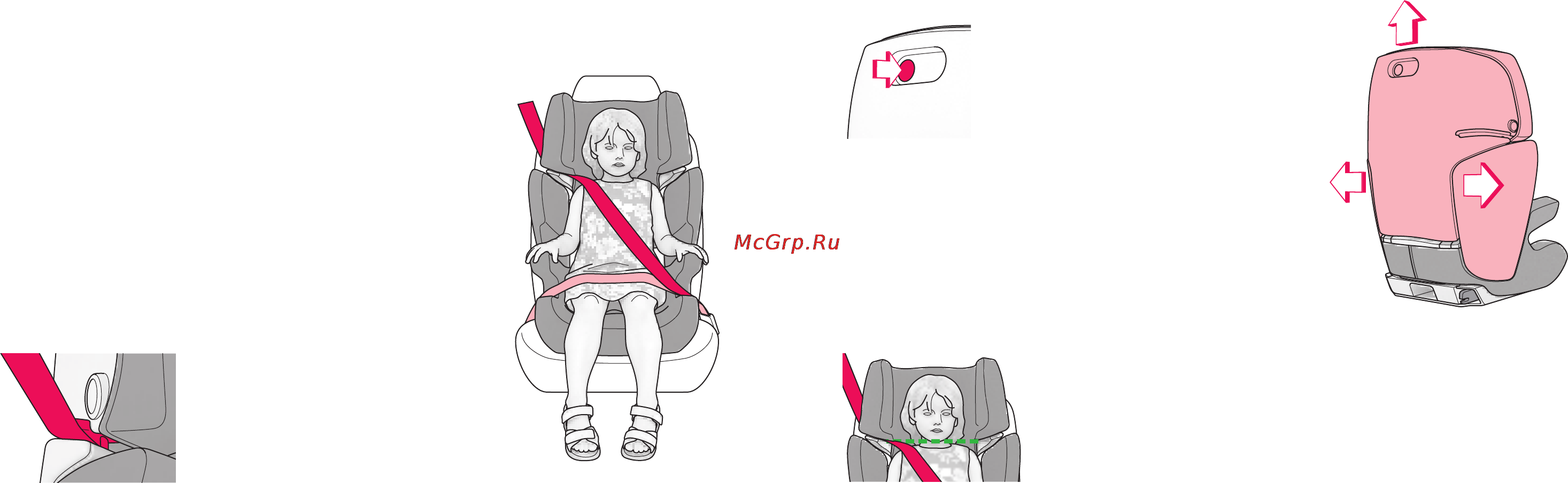

_ SECUriNG THE CHiLD WiTH THE THrEE-POiNT bELT

(FrOM 15 TO 36 KG)

Seatyourchildwellbackintheseatingarea.Passthe

three-point belt across the front of the child to the seat

beltlock,andfastenitinthesamewayasforanadult.

(Theremustbeanaudibleclick.)

Now position the belts. Pass the lap belt across both

sides and the diagonal belt on the side of the seat belt

lock through the lap belt guide (03).

Finally,passthediagonalbeltthroughtheprovided

shoulder belt guide (06).

Make sure the belt passes

inside the securing hook.
