Leave at least 10cm of space at the front and rear of the hub for

ventilation.

Install the Switch on a sturdy, level surface that can support its weight,

or in an EIA standard-size equipment rack. For information on rack

installation, see the next section, Rack Mounting.

When installing the Switch on a level surface, attach the rubber feet to

the bottom of each device. The rubber feet cushion the hub and

protect the hub case from scratching.

Rack Mounting

The switch can be mounted in an EIA standard-size, 19-inch rack,

which can be placed in a wiring closet with other equipment. Attach

the mounting brackets at the switch’s front panel (one on each side),

and secure them with the provided screws.

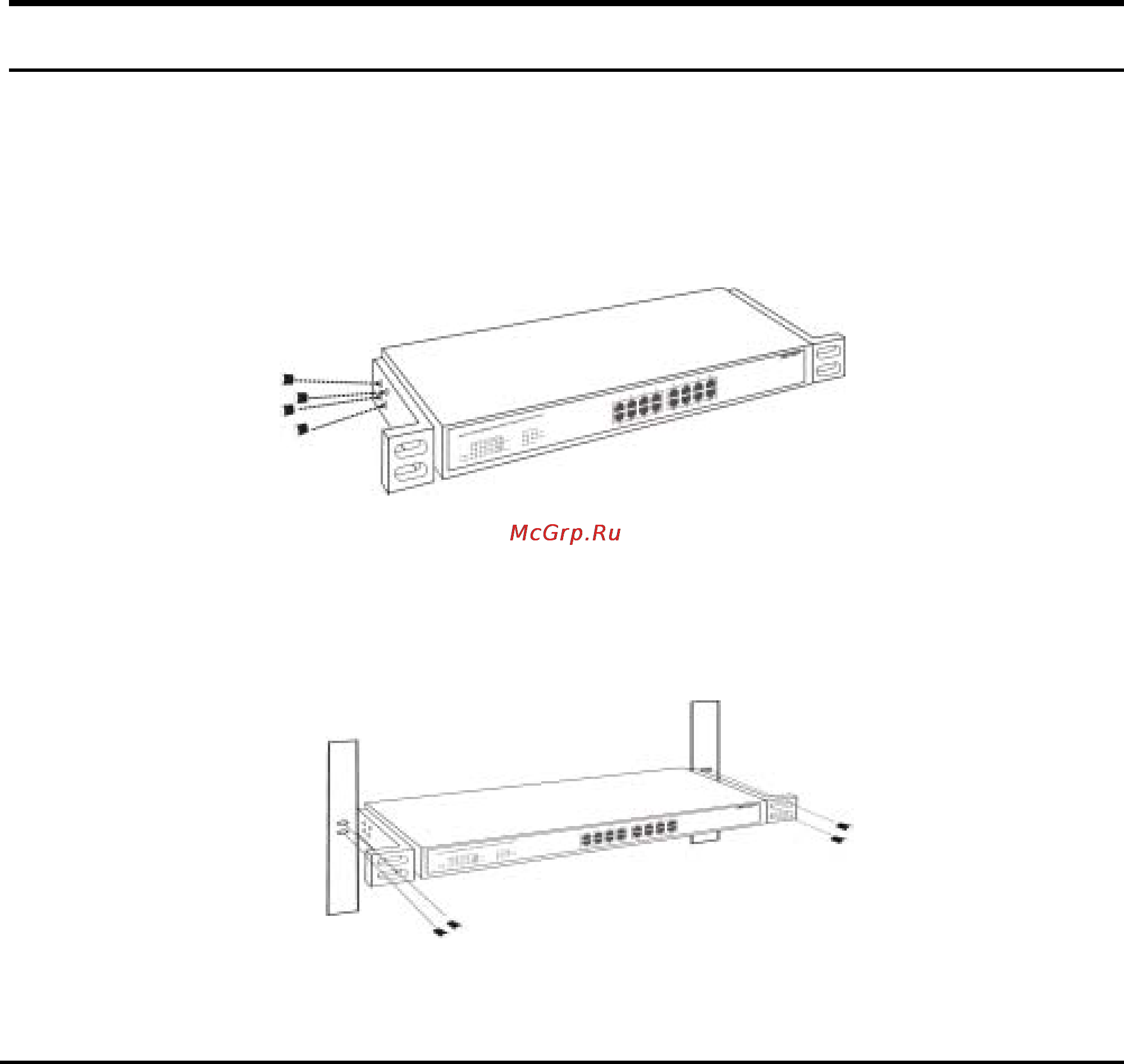

Figure 1. Combine the Switch with the provided screws

Then, use screws provided with the equipment rack to mount each

switch in the rack.

Figure 2. Mount the Switch in the rack
