View Trap: The Trap function can receive the events that happen

from the Web Management Switch in the Monitor List.

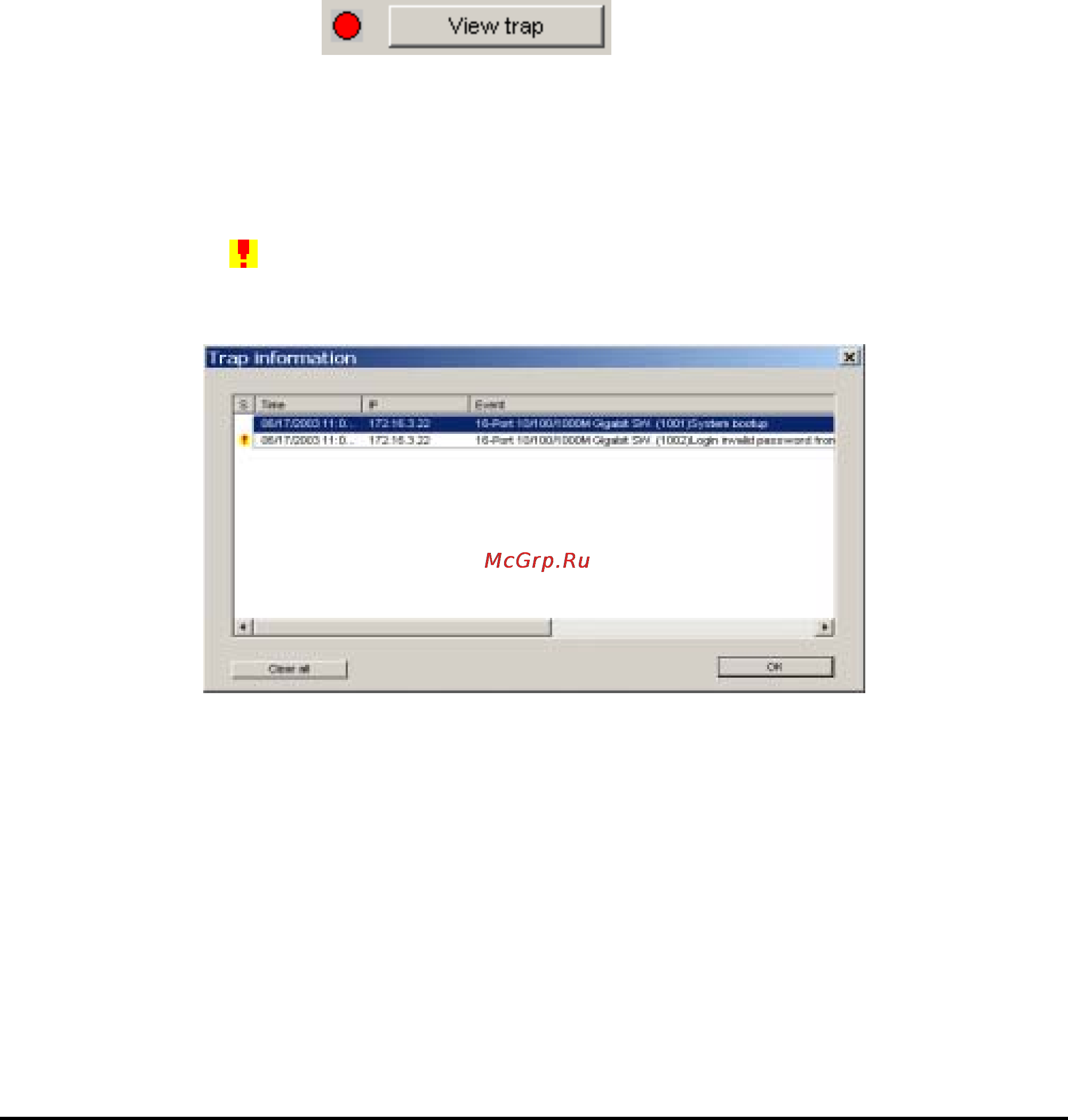

There is a light indicator behind the “View Trap” button, when the

light indicates in green, it means that there is no trap transmitted, and

else when it indicates in red, it means that there is new trap

transmitted, this is to remind us to view the trap. (Figure 7)

Figure 7.

When the “View Trap” button is clicked, a Trap Information window

will pop out, it will show the trap information including the Symbol,

Time, Device IP and the Event occured. (Figure 8)

The symbol “

” represents the trap signal arise, this symbol will

disappear after you review and click on the event record.

Figure 8.

Note: In order to receive Trap information, switch has to be configured with

Trap IP and Trap Events in Web browser, which are available in the Trap

Setting Menu (see Page 45 for detail).

Add Item: To add a device to the Monitor List manually, enter the IP

Address of the device that you want to monitor.

Delete Item: To delete the device in the Monitor List.
