Flow Control:

This setting determines whether or not the Switch will be handling

flow control. Set FlowCtrl to Enable for avoiding data transfer

overflow. Or it sets to Disable; there is either no flow control or other

hardware/software management.

When the port is set to forced mode, then the flow control will

automatically set to Disable.

QoS:

In some ports that need to have a high priority to manage the data

transfer, QoS should be change. The default setting of all port QoS is

high, set the QoS to Normal where the ports that do not need to have

a high priority of transferring data.

VLAN Settings (Virtual Local Area Network)

Group individual ports into a small “Virtual” network of their own to

be independent of the other ports. To add a VLAN group, press “Add

Group” button, the new VLAN configuration window will pop out,

you can fill in the description in order to describe this VLAN Group,

check on the port to be a member to this VLAN Group, and press

“Apply” button to execute the setting.

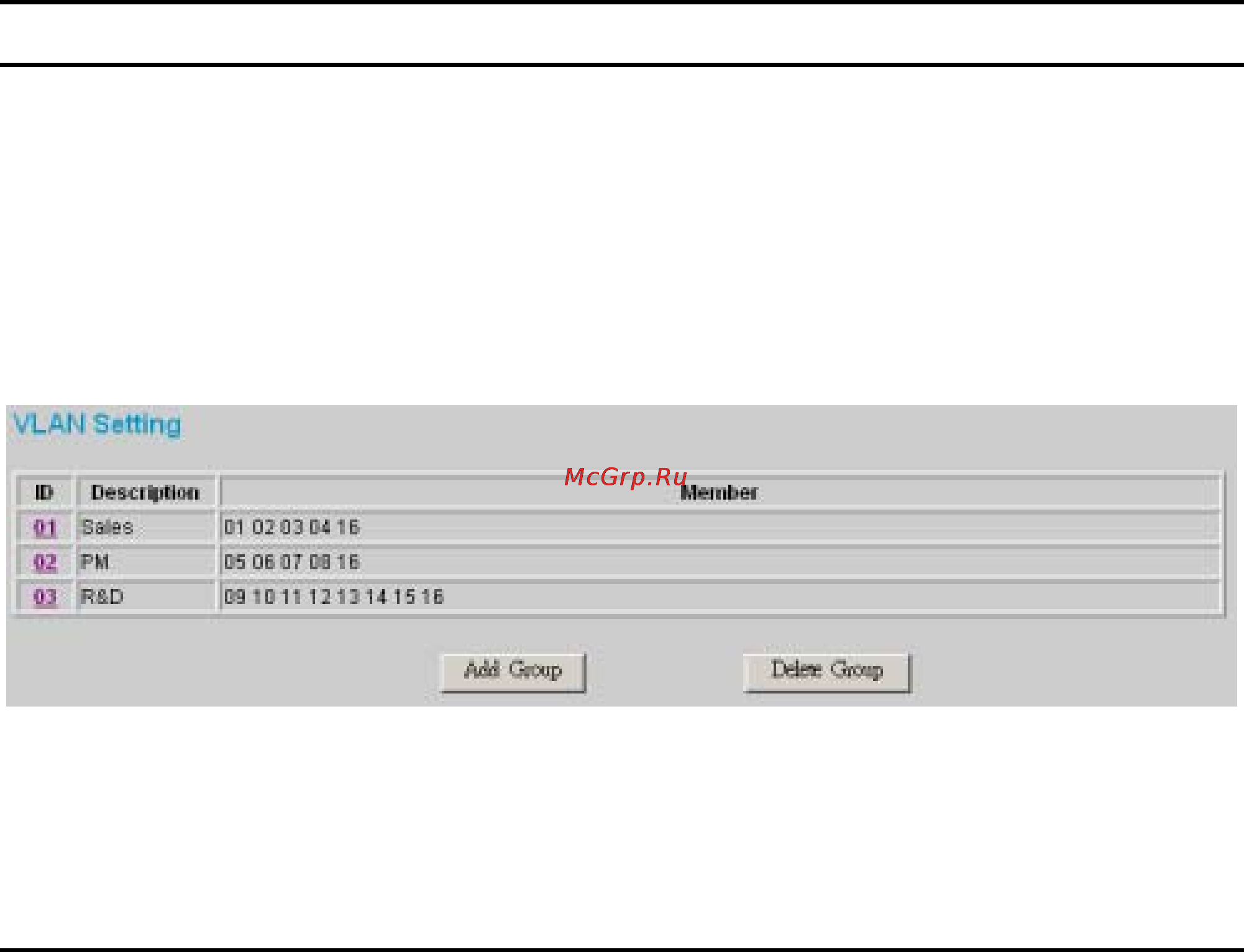

Figure 19. VLAN Group Settings
