4
26

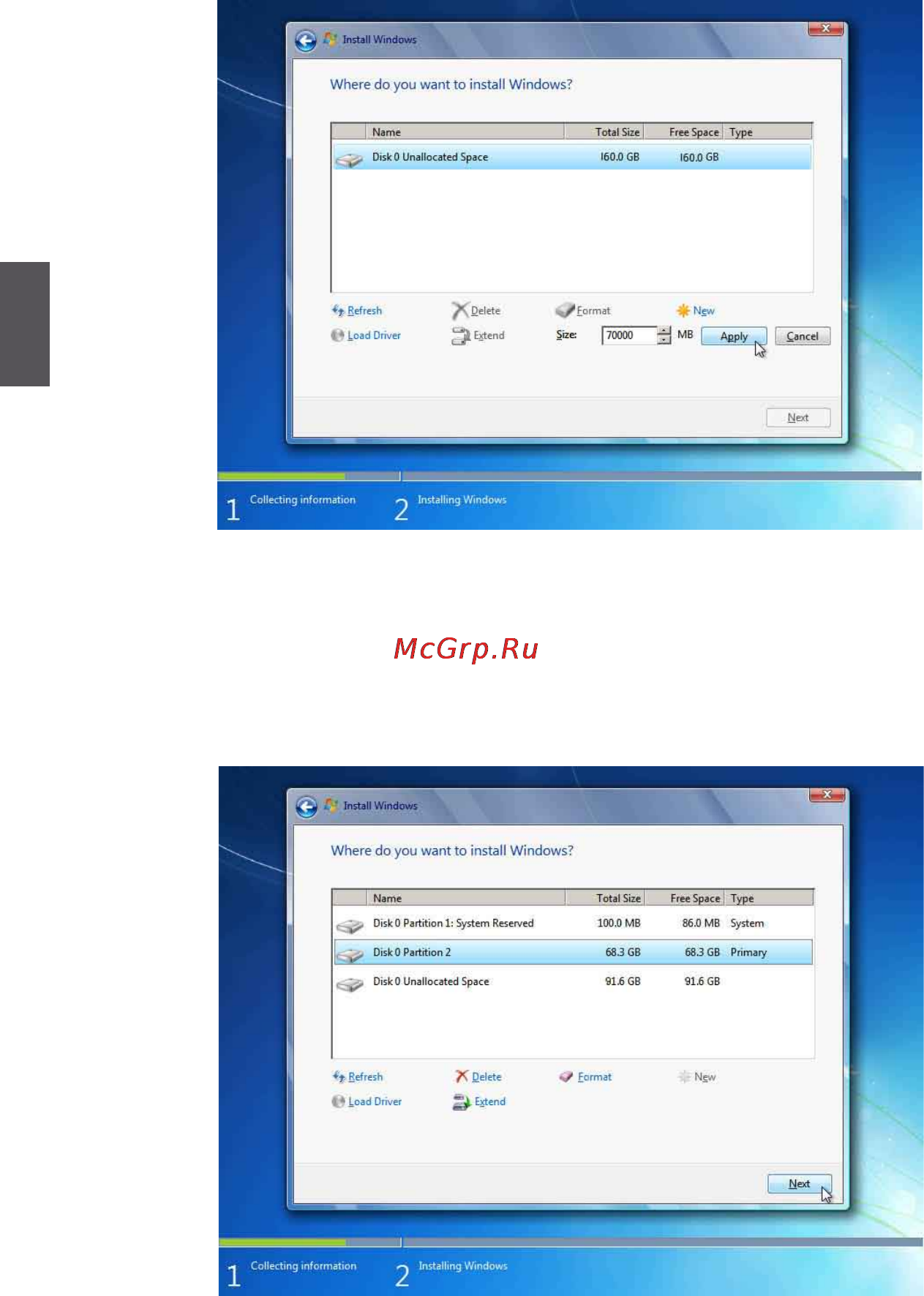

9. In this biggest hard disk size screen, you can click “New” button to create partitions as you
need. In this example, we will create a 70GB partition to install Windows, and click “Apply”.
To ensure that all Windows features work correctly, Windows might create an additional parti-
tions for system les, so you will see a system reserved partition. Select the 70GB partition
and click “Next” to continue.
