4
27

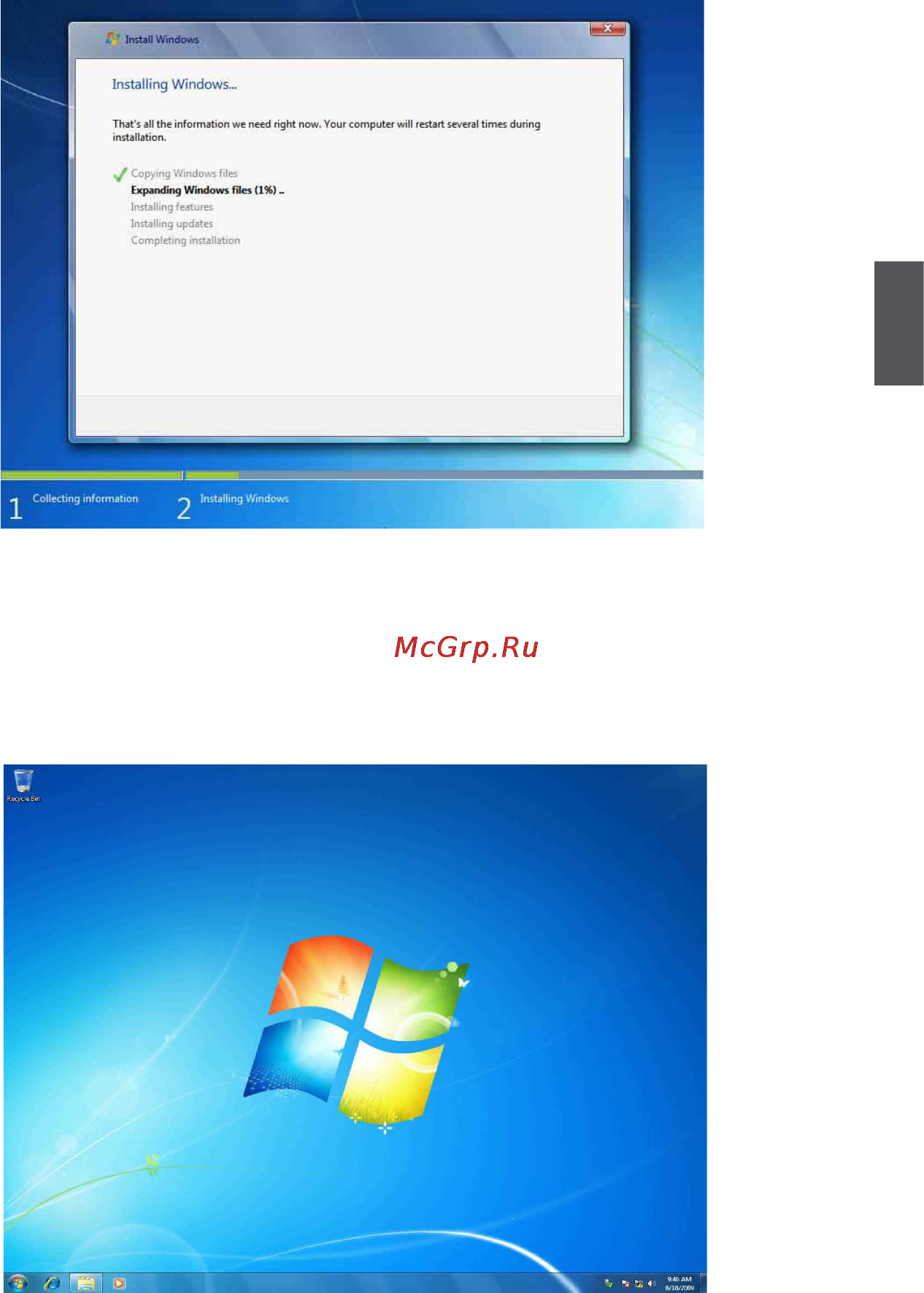

10. From this step we start to install windows 7 into your hard disk, including copying Windows
les, expanding Windows les...etc. During the installation, your computer will restart sev
eral times.
��. When the installation is completed, setup will prepare your compute for the rst use. Then
you can follow steps to select system settings, create an account, set a password...etc,
until the whole process is completed and enter
Windows 7 operating system
.
