Gigabyte ga-b85m-d3h [5/36] Ga b85m d3h motherboard block diagram
![Gigabyte ga-b85m-d3h [5/36] Ga b85m d3h motherboard block diagram](/views2/1167747/page5/bg5.png)
- 5 -
D-Sub
DVI-D
HDMI

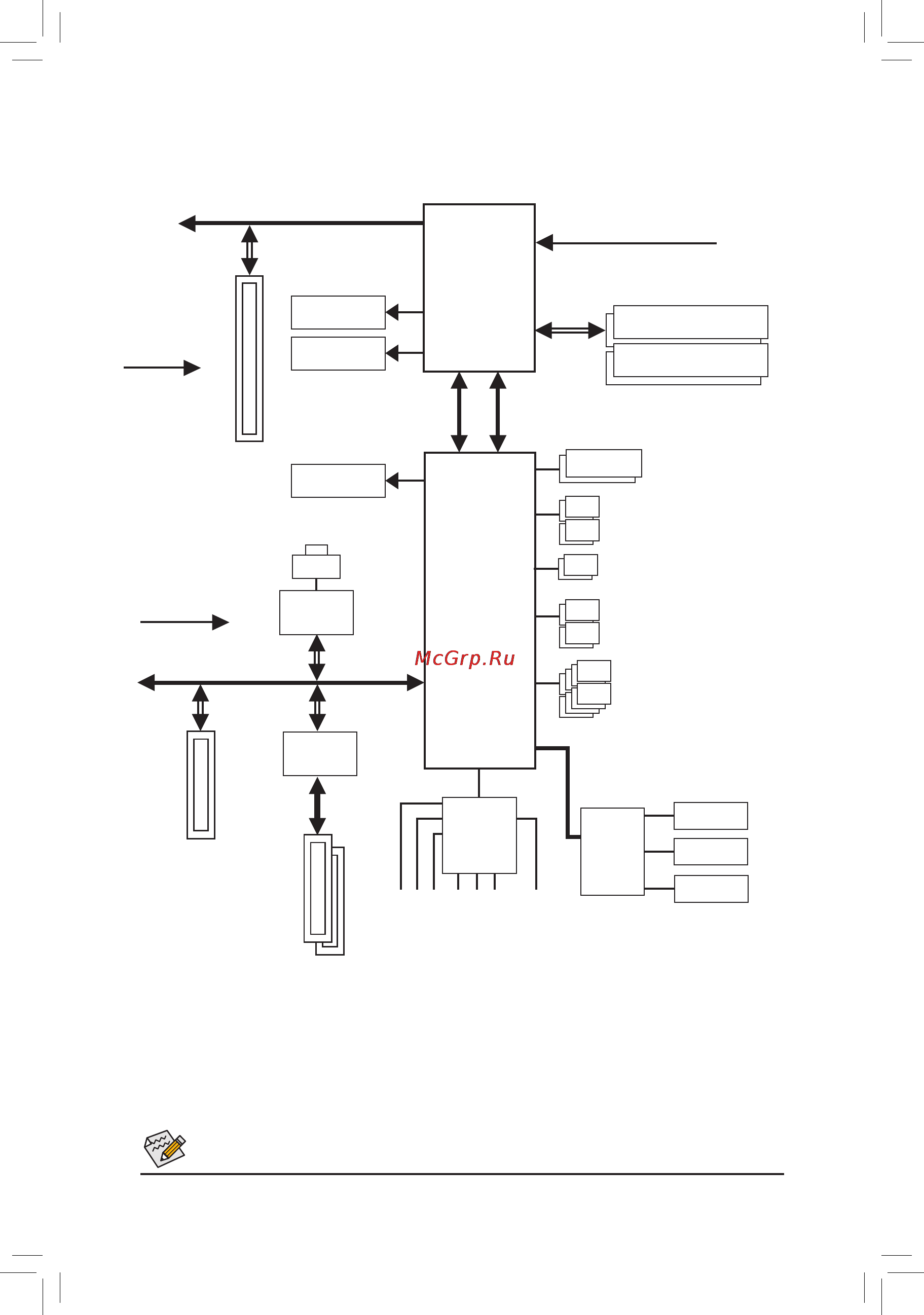

GA-B85M-D3H Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
PS/2 KB/Mouse
COM
LPT
LPC
Bus
LGA1150
CPU
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
1 PCI Express x16
x16
DMI 2.0
FDI
DDR3 1600/1333 MHz
Dual Channel Memory
LAN
RJ45
PCI Express Bus
PCIe CLK
(100 MHz)
Realtek
®
GbE LAN
PCIe to
PCI Bridge
1 PCI Express x4
2 PCI
x4 x1
PCI Bus
x1
Dual BIOS
4 USB 3.0/2.0
4 SATA 6Gb/s
2 SATA 3Gb/s
8 USB 2.0/1.1
Intel
®
B85
iTE
®
Super
I/O
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Rear Speaker Out
CODEC
