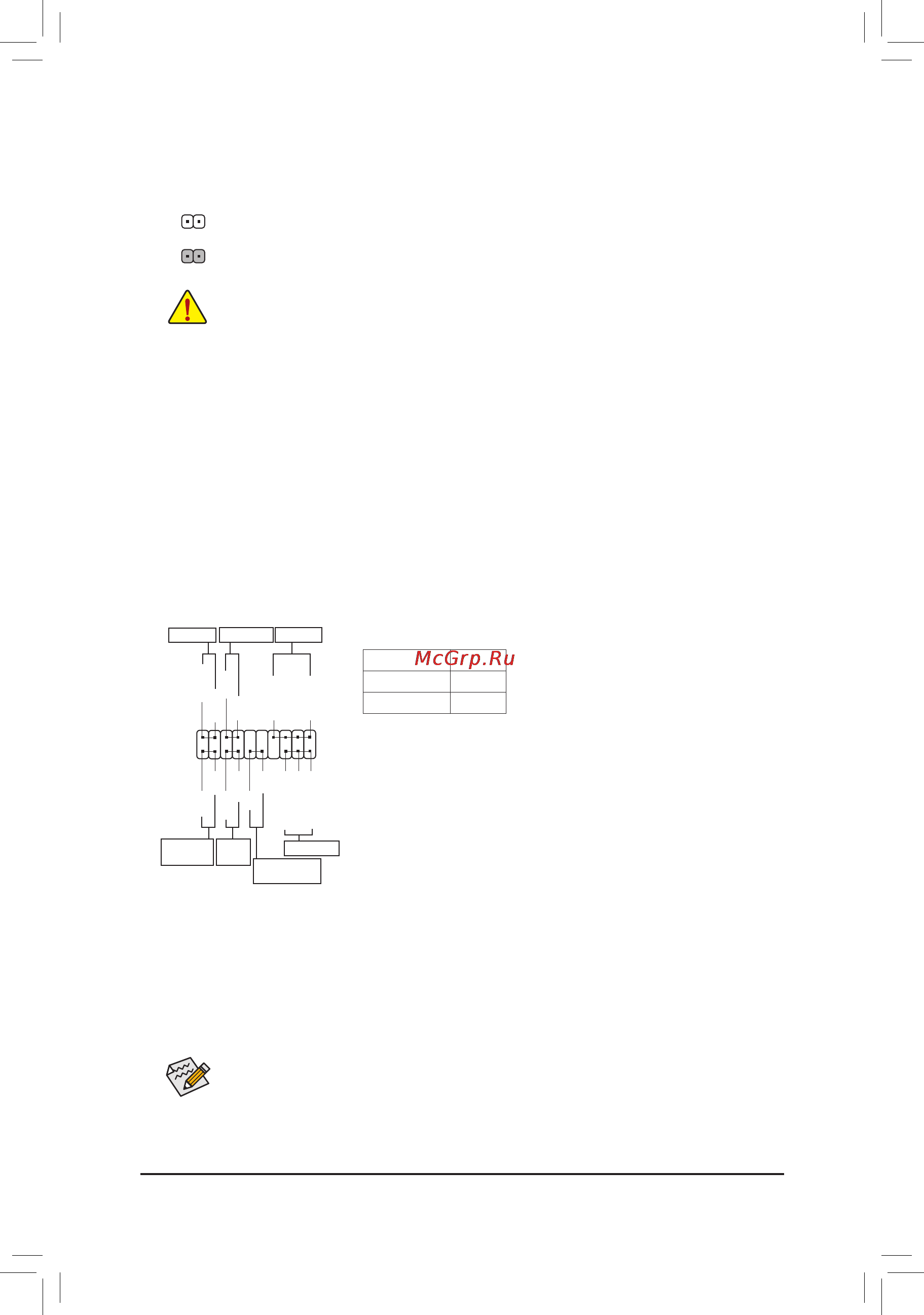

7) CLR_CMOS(ClearCMOSJumper)

 UsethisjumpertocleartheBIOScongurationandresettheCMOSvaluestofactorydefaults.Toclear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

• Always turn off your computer and unplug the power cord from the power outlet before clearing

the CMOS values.

• Aftersystemrestart,gotoBIOSSetuptoloadfactorydefaults(selectLoadOptimizedDefaults)or

manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).

Open: Normal

Short: Clear CMOS Values

on the chassis to this header according to the pin assignments below. Note the positive and negative pins

before connecting the cables.

System Status LED

S0 On

S3/S4/S5 Off

• PW (PowerSwitch):

• SPEAK (Speaker):

PLED+

PW+

CI-

PWR_LED+

HD+

RES-

Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is

reading or writing data.

• RES (ResetSwitch):

Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the

computerfreezesandfailstoperformanormalrestart.

• CI (ChassisIntrusionHeader):

Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has been

removed. This function requires a chassis with a chassis intrusion switch/sensor.
