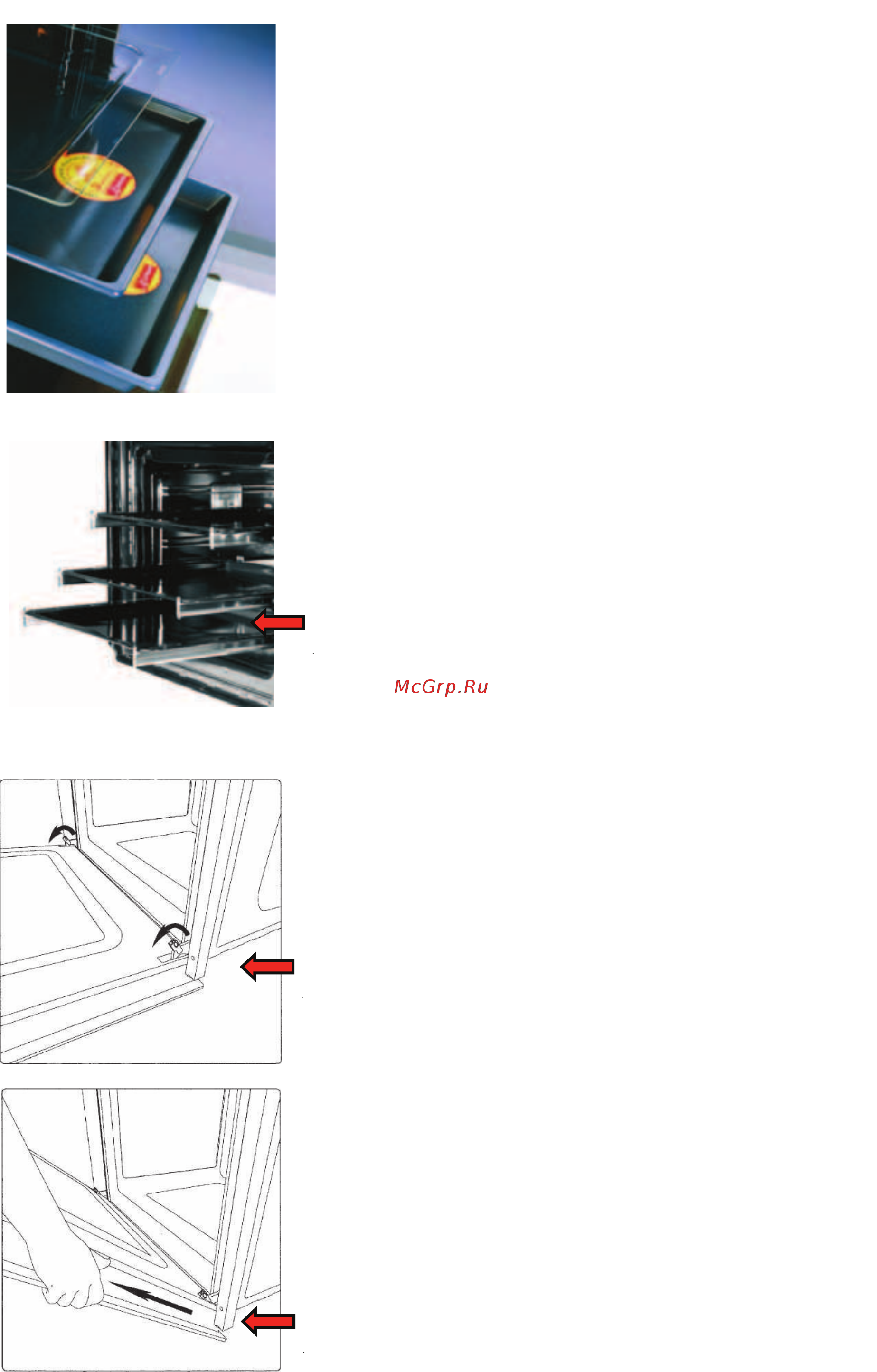

![Kaiser HC 61053NLK [58/76] Baking tray with coating](/views2/1016824/page58/bg3a.png)
58
EN
Baking tray with ȺȺȼ coating *
The Kaiser XL 500 ovens are provided with the
ȺȺȼ coated baking trays manufactured on the
basis of state-of-art technologies. In comparison to
usual coatings, the ABB coating is much more
advantageous: it is durable, resistant to scratches,
grease and oil stains do not stick to it. The
remarkable anti-stick feature of the coating is
based on “Lotus blossom” effect: oil and grease
drip off without sticking and can be easily removed
even by water without any detergents.
If you cook food on the ABB coated baking trays,
please only use special wooden or plastic utensils.
Telescopes*
The system of Telescopes 2 provided in the oven
enables you to pull out all baking trays together or
separately even while cooking a dish. This Kaiser
innovation differs from all similar constructions to
advantage: telescopic guides provide convenient
and practical access to every level, enable you to
check up and take out the food from any tray, thus,
saving the heat in the oven and preserving the food
on the other trays hot. A special anti-tilt system
guarantees safety against overturning
even if the
telescopic guides are fully withdrawn. The
maximum load amounts to 15 kg. You can easily
dismantle the telescopes in order to clean them
thoroughly. The construction is made of stainless
steel, so corrosion protection is ensured.
Removing the oven door
You can easily remove the oven door in order to
clean it more thoroughly and get a better access to
the oven cavity.
To do so, proceed as follows:
x Open the door against the stop.
x Fix the two levers 3 in the upper position.
x Close the door against the first stop
(caused by the raised levers).
x Carefully pull the door upwards and
outwards to remove it from the mountings
4.
To mount the door:
x Fit the hinges into their mountings and fix
the two levers in the lower position.
* - if available
* - - can be ordered in trade
2
3
4
