Zyxel GS1900-48HP [145/230] Chapter 24 configuration multicast

Chapter 24 Configuration: Multicast

GS1900 Series User’s Guide

145

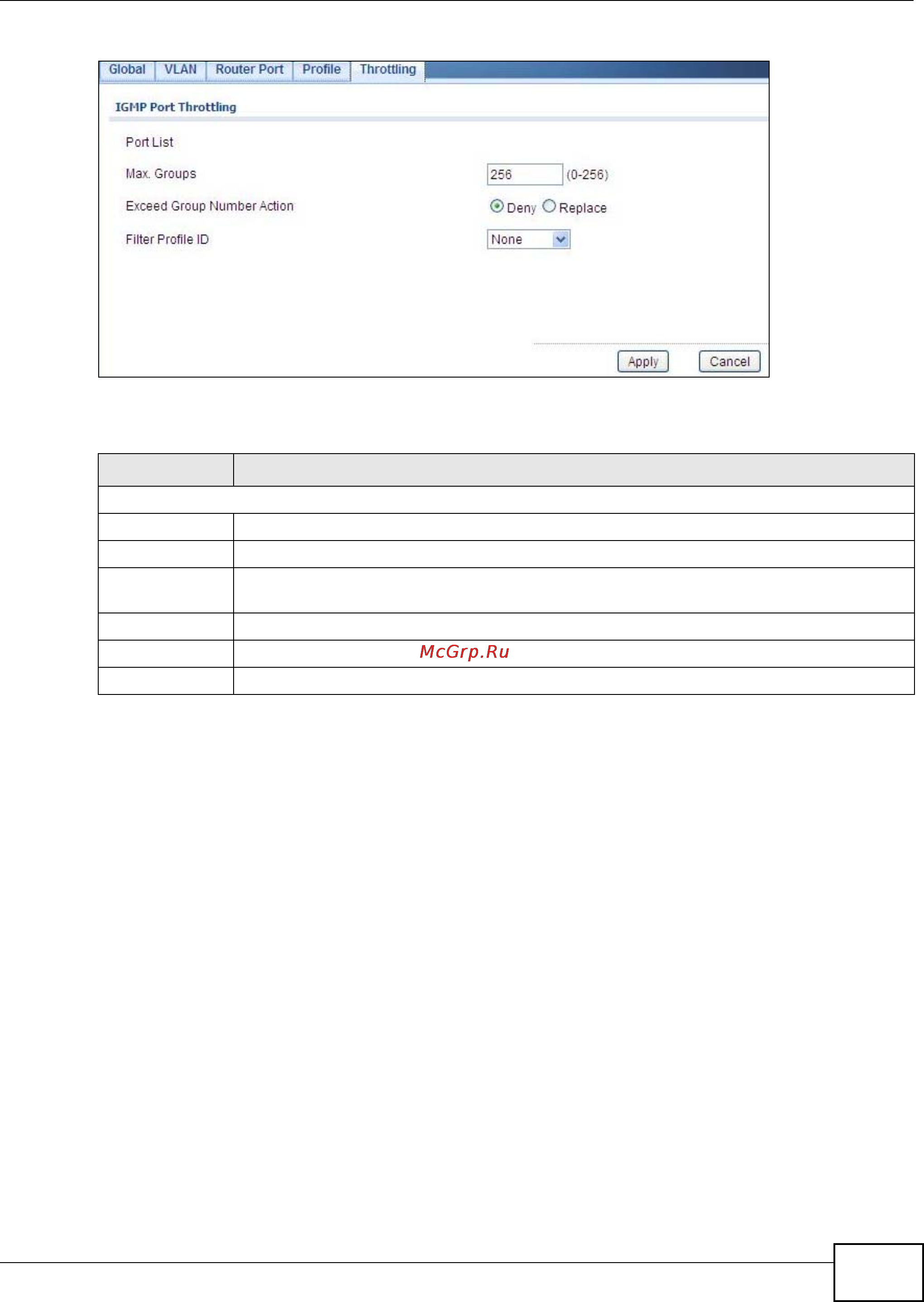

Figure 138 Configuration > Multicast > IGMP > Throttling > Add/Edit

The following table describes the labels in this screen.

Table 105 Configuration > Multicast > IGMP > Throttling > Add/Edit

LABEL DESCRIPTION

IGMP Port Throttling

Port List Enter the port index value(s).

Max. Groups Enter the maximum number of groups. Enter a value between 0 and 256.

Exceed Group

Number Action

Select the action taken by the groups to be Deny or Replace.

Filter Profile ID Select the throttling filter profile ID from the dropdown list.

Apply Click Apply to save the changes.

Cancel Click Cancel to discard the changes.
