Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
128
2 Choose Express to create a VPN rule with the default phase 1 and phase 2 settings and use a pre-
shared key to be the authentication method. Click Next.

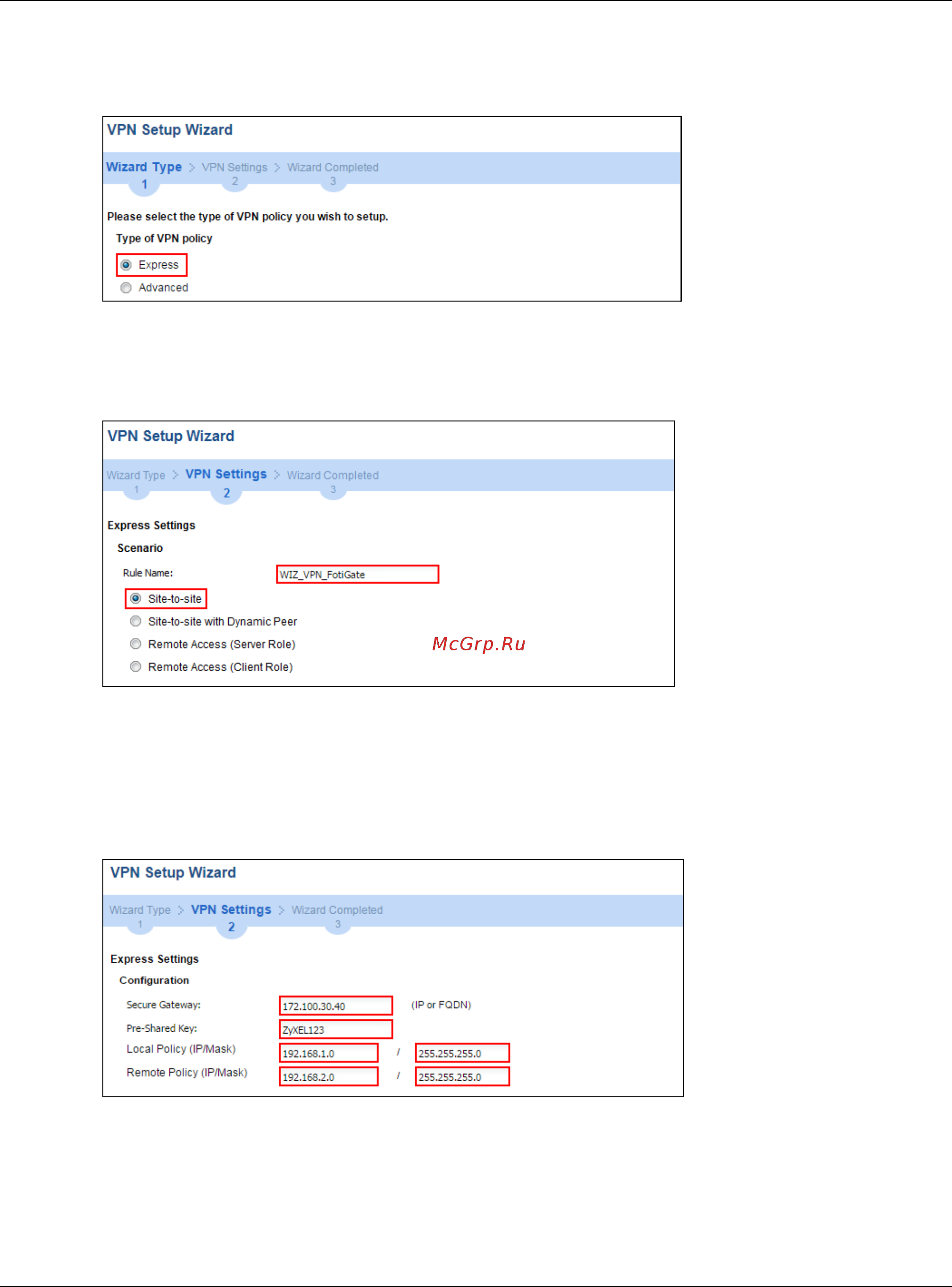

Figure 259 Quick Setup > VPN Setup Wizard > Wizard Type
3 Type the Rule Name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters. This value is case-sensitive. Select the rule to be Site-to-site. Click
Next.
Figure 260 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings (Scenario)
4 Configure Secure Gateway IP as the FortiGate’s WAN IP address (in the example, 172.100.30.40).
Then, type a secure Pre-Shared Key (8-32 characters).
Set Local Policy to be the IP address range of the network connected to the ZyWALL/USG and
Remote Policy to be the IP address range of the network connected to the FortiGate.
Figure 261 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings
(Configuration)
