Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
221
5.1.1 Set Up the ZyWALL/USG IPSec VPN Tunnel

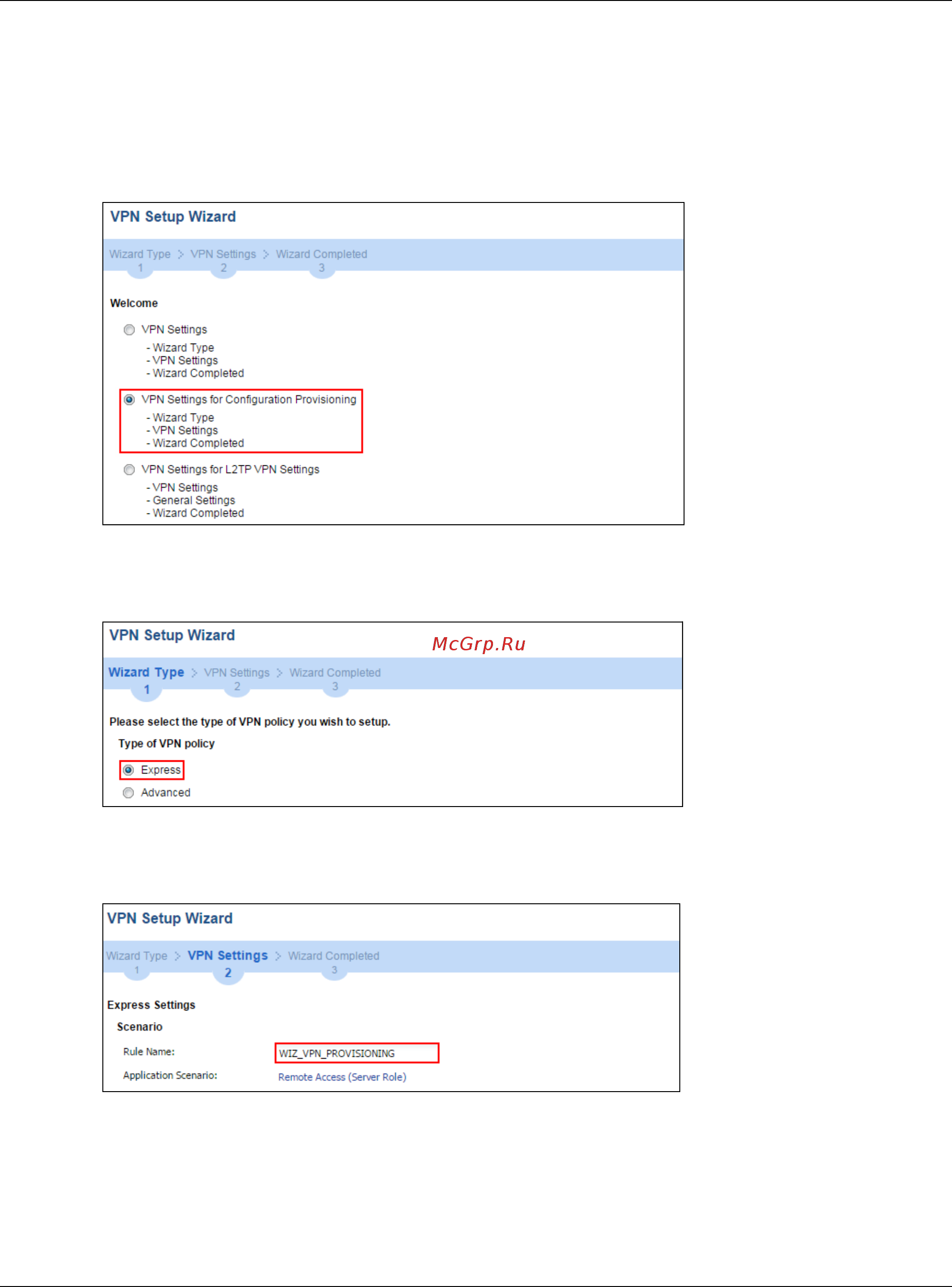

1 In the ZyWALL/USG, go to CONFIGURATION > Quick Setup > VPN Setup Wizard, use the VPN
Settings for Configuration Provisioning wizard to create a VPN rule that can be used with the
ZyWALL IPSec VPN Client. Click Next.
Figure 465 Quick Setup > VPN Setup Wizard > Welcome
2 Choose Express to create a VPN rule with the default phase 1 and phase 2 settings and use a pre-
shared key to be the authentication method. Click Next.
Figure 466 Quick Setup > VPN Setup Wizard > Wizard Type
3 Type the Rule Name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters. This value is case-sensitive. Click Next.
Figure 467 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings-1
