Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
222
4 Type a secure Pre-Shared Key (8-32 characters). Set Local Policy to be the IP address range of
the network connected to the ZyWALL/USG.

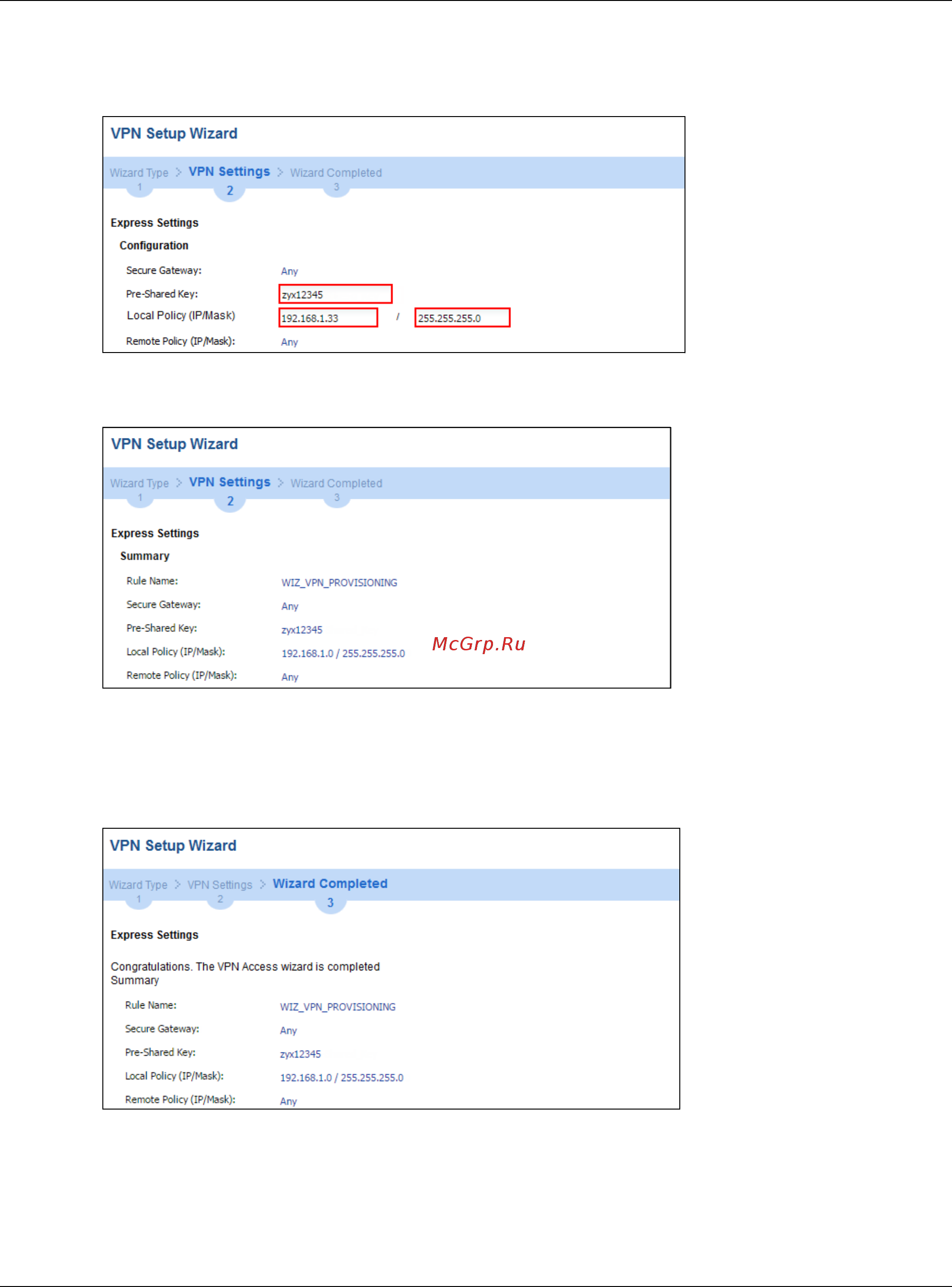

Figure 468 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings-2
5 This screen provides a read-only summary of the VPN tunnel. Click Save.
Figure 469 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings-3
6 Now the rule is configured on the ZyWALL/USG. The Phase 1 rule settings appear in the VPN >
IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec
VPN > VPN Connection screen. Click Close to exit the wizard.
Figure 470 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings >
Wizard Completed
