Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

252

5.4.3 Set Up the L2TP VPN Tunnel on the Windows 10

1 To configure L2TP VPN in Windows 10 operating system, go to Start > Settings > Network &

Internet > VPN > Add a VPN Connection and configure as follows.

VPN Provider set to Windows (built-in).

Configure Connection name for you to identify the VPN configuration.

Set Server name or address to be the ZyWALL/USG’s WAN IP address (172.124.163.150 in this

example).

Select VPN type to Layer 2 Tunneling Protocol with IPsec (L2TP/IPsec).

Enter User name and Password which the same as Allowed User created in ZyWALL/USG

(L2TP_Remote_Users/zyx168 in this example).

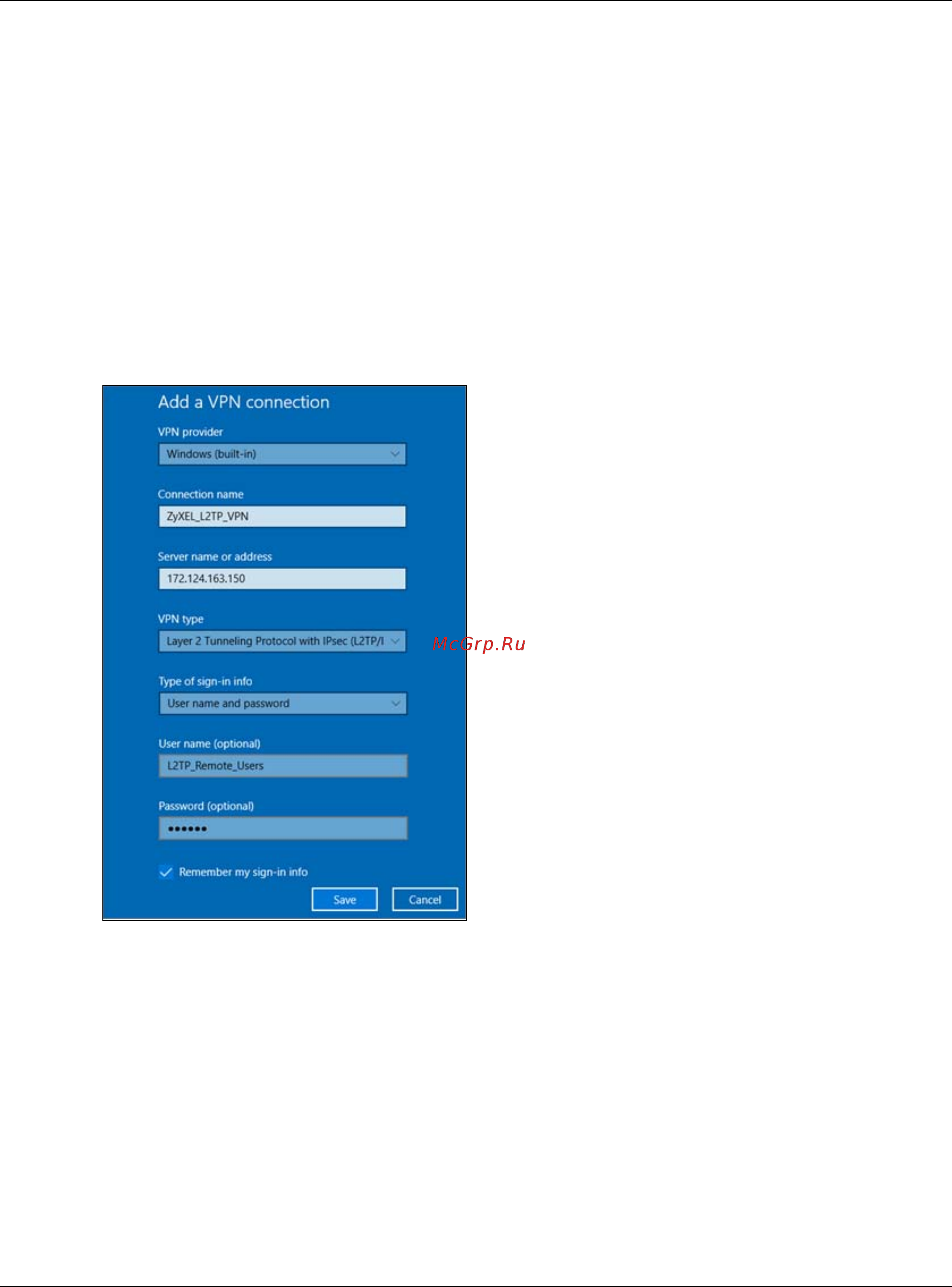

Figure 548 Add a VPN Connection
