Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
248
8 If some of the traffic from the L2TP clients needs to go to the Internet, create a policy route to send
traffic from the L2TP tunnels out through a WAN trunk. Set Incoming to Tunnel and select your
L2TP VPN connection. Set the Source Address to be the L2TP address pool. Set the Next-Hop
Type to Trunk and select the appropriate WAN trunk.

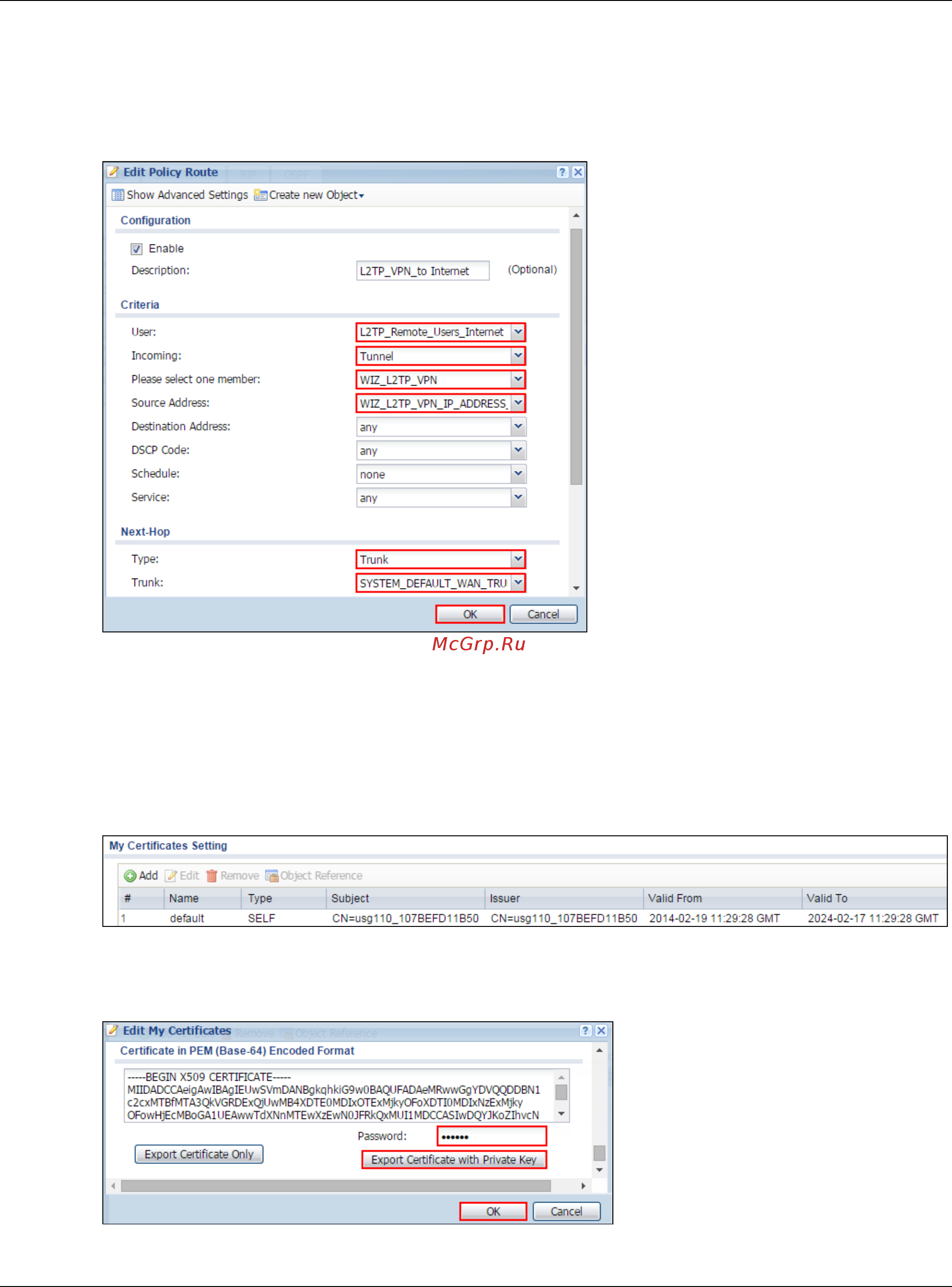

Figure 536 CONFIGURATION > Network > Routing > Policy Route
5.4.2 Export a Certificate from ZyWALL/USG and Import it to Windows 10
Operating System
1 Go to ZyWALL/USG CONFIGURATION > Object > Certificate, select the certificate (default in
this example) and click Edit.
Figure 537 CONFIGURATION > Object > Certificate > default
2 Export default certificate from ZyWALL/USG with Private Key (zyx123 in this example)
Figure 538 CONFIGURATION > Object > Certificate > default > Edit > Export Certificate
with Private Key
