Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

247

6 Go to CONFIGURATION > VPN > VPN Gateway > WIZ_L2TP_VPN, change Authentication

method to be Certificate and select the certificate which ZyWALL/USG uses to identify itself to the

Window 10 computer.

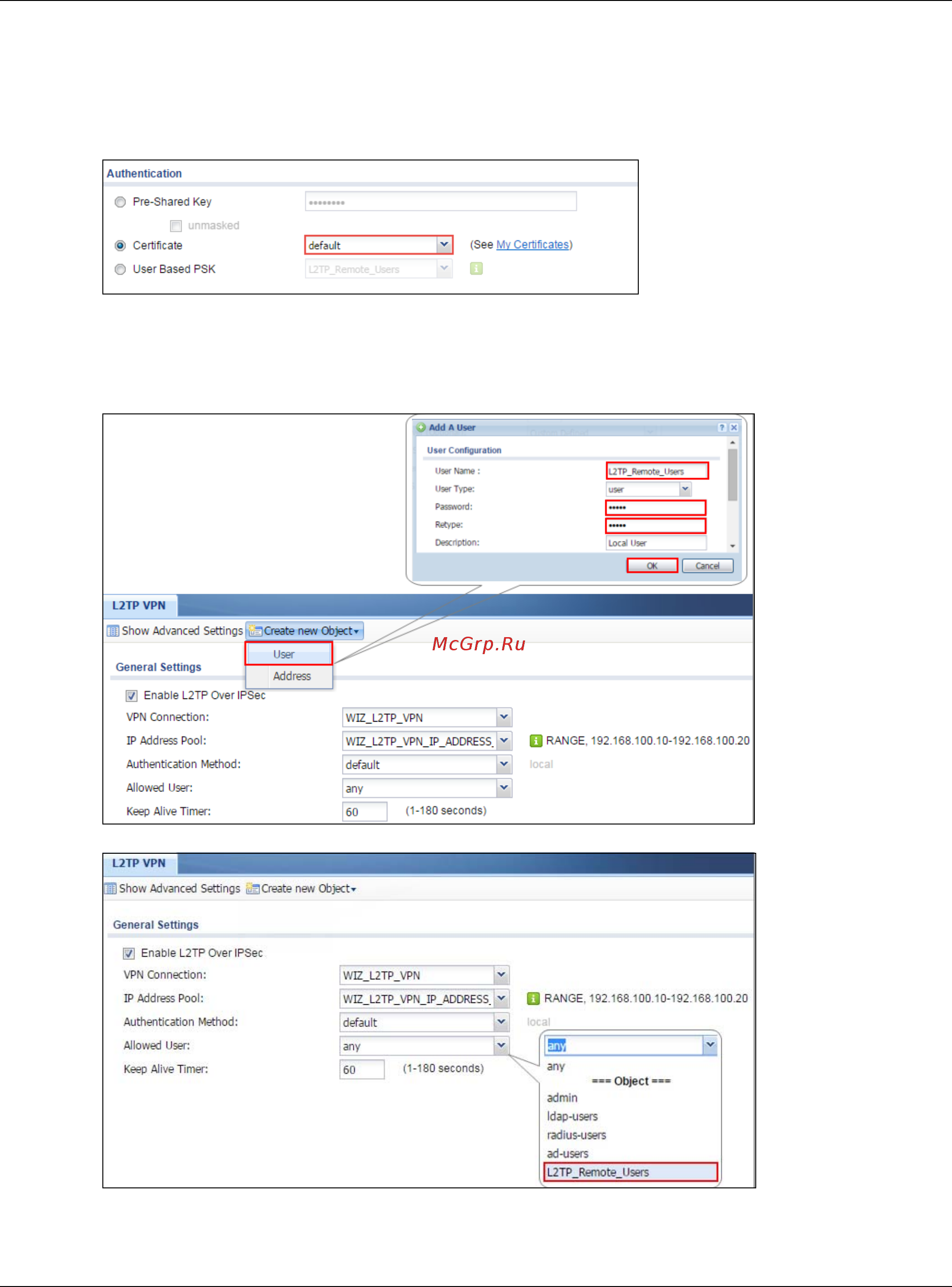

Figure 533 CONFIGURATION > VPN > VPN Gateway > WIZ_L2TP_VPN > Authentication >

Certificate

7 Go to CONFIGURATION > VPN > L2TP VPN > Create new Object > User to add User Name

and Password (4-24 characters). Then, set Allowed User to the newly created object

(L2TP_Remote_Users/zyx168 in this example).

Figure 534 CONFIGURATION > VPN > L2TP VPN > Create new Object > User

Figure 535 Configure the L2TP VPN
