Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
51
Note: The business account can be changed into a channel partner account by an
administrator. With a channel partner account, you can register multiple devices
and/or services at a time and check service status reports. Contact your sales
representative to have a channel partner account.
4 After you click Submit, myZyXEL.com 2.0 will send you an account activation notification e-mail.
Click the URL link from the e-mail to activate your account and log into myZyXEL.com 2.0.

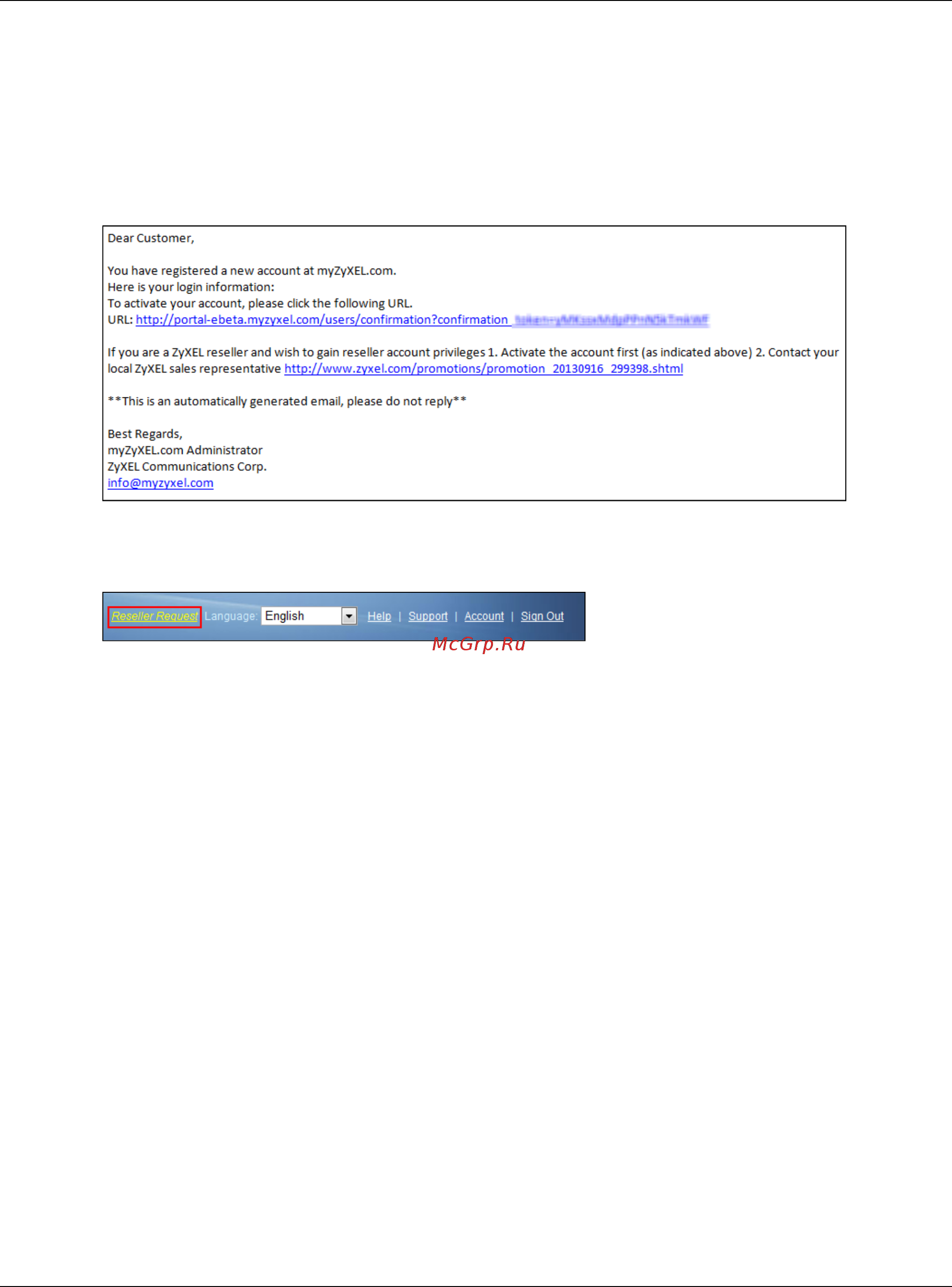

Figure 74 Account Activatoin Notification E-mail
5 After E-mail activate, sign in myZyXEL.com 2.0 to register or mange your devices and services. If
you are a business account, please go to account page and press the Reseller Request button.
Figure 75 The Reseller Request Link
