Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

199

3 Click Create new Object on the upper bar to add the address of the local network behind Branch

A and the address range of the local network behind Hub_HQ to Branch_B.

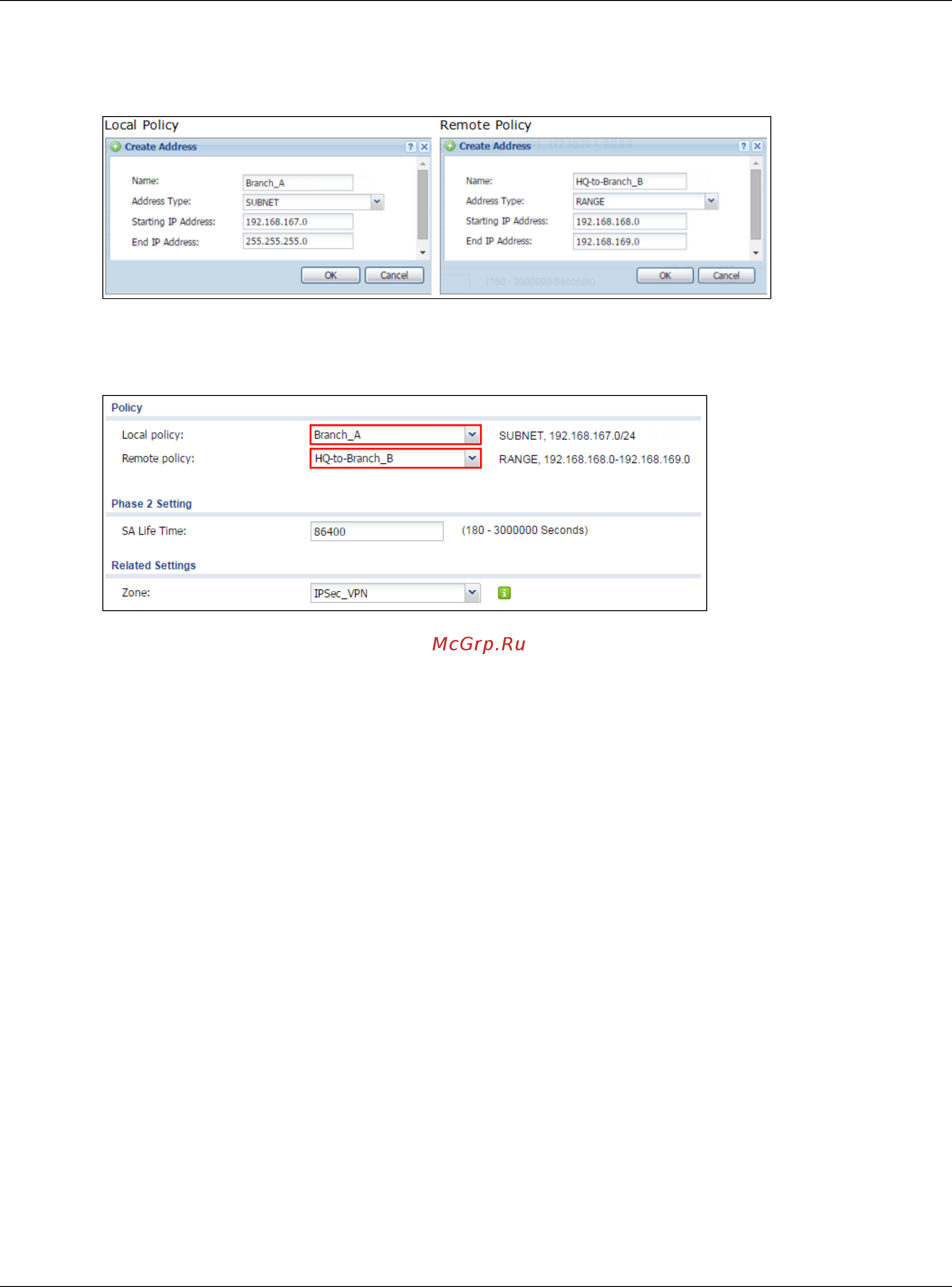

Figure 418 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Create new Object

4 Set Local Policy to be Branch_A and Remote Policy to HQ-to-Branch_B which are newly

created. Click OK.

Figure 419 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Policy
