Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
207
2 Go to CONFIGURATION > VPN > IPSec VPN > VPN Connection and select Enable. Type the
Connection Name used to identify this VPN connection. Select scenario as Site-to-site and VPN
Gateway which is configured in Step 1.

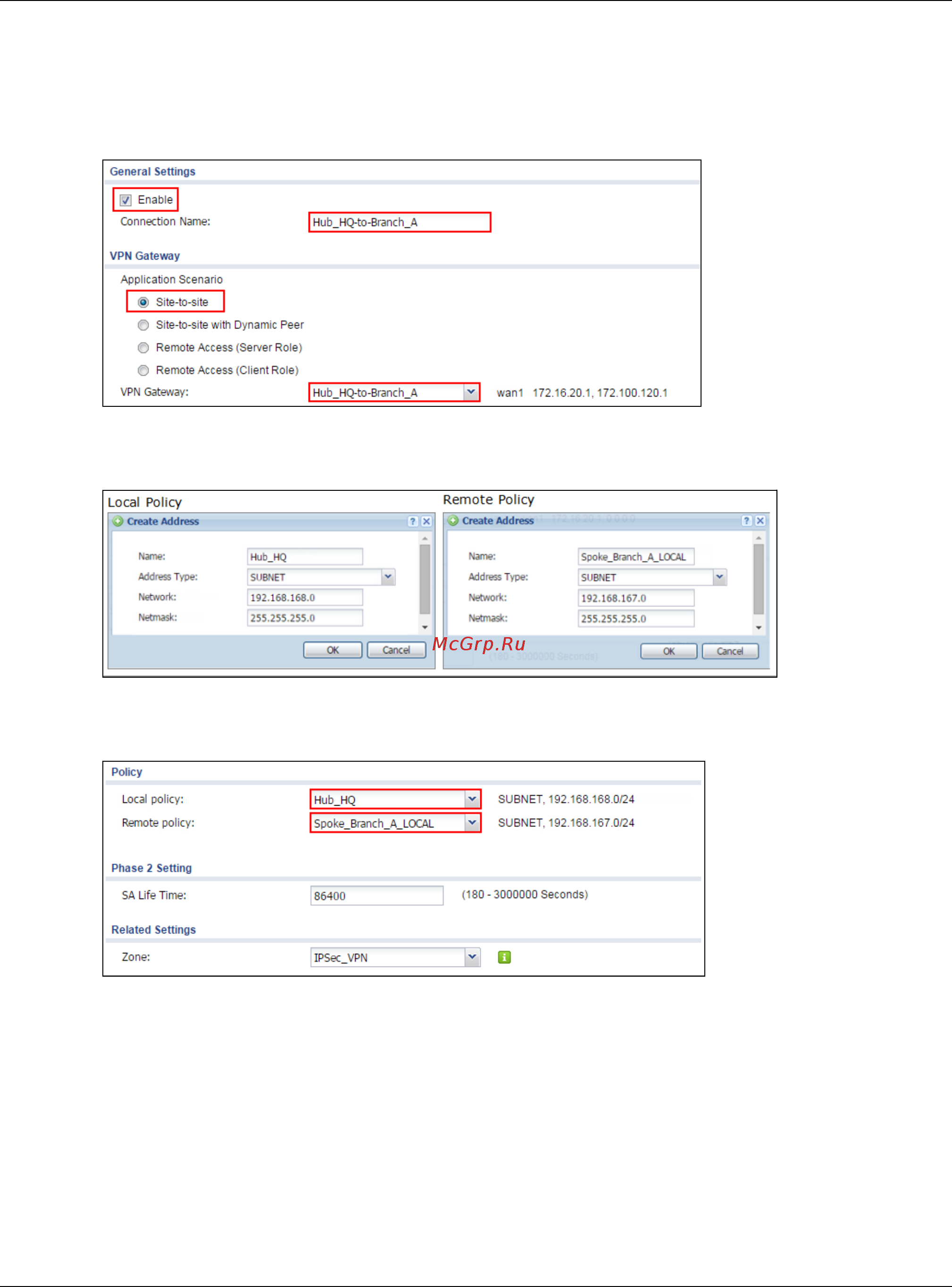

Figure 435 CONFIGURATION > VPN > IPSec VPN > VPN Connection > General Settings
and VPN Gateway
Click Create new Object to add the address of local network behind Hub_HQ and an address of
local network behind Branch A.
Figure 436 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Create new Object
Set Local Policy to be Hub_HQ and Remote Policy to Branch_A which are newly created. Click
OK.
Figure 437 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Policy
