Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

213

3 Go to Network > Routing > Policy Route to add a Policy Route to allow traffic from

Spoke_Branch_A to Spoke_Branch_B.

Click Create new Object and set the address to be the local network behind the

Spoke_Branch_B. Select Source Address to be the local network behind the Spoke_Branch_A.

Then, scroll down the Destination Address list to choose the newly created

Spoke_Branch_B_LOCAL address. Click OK.

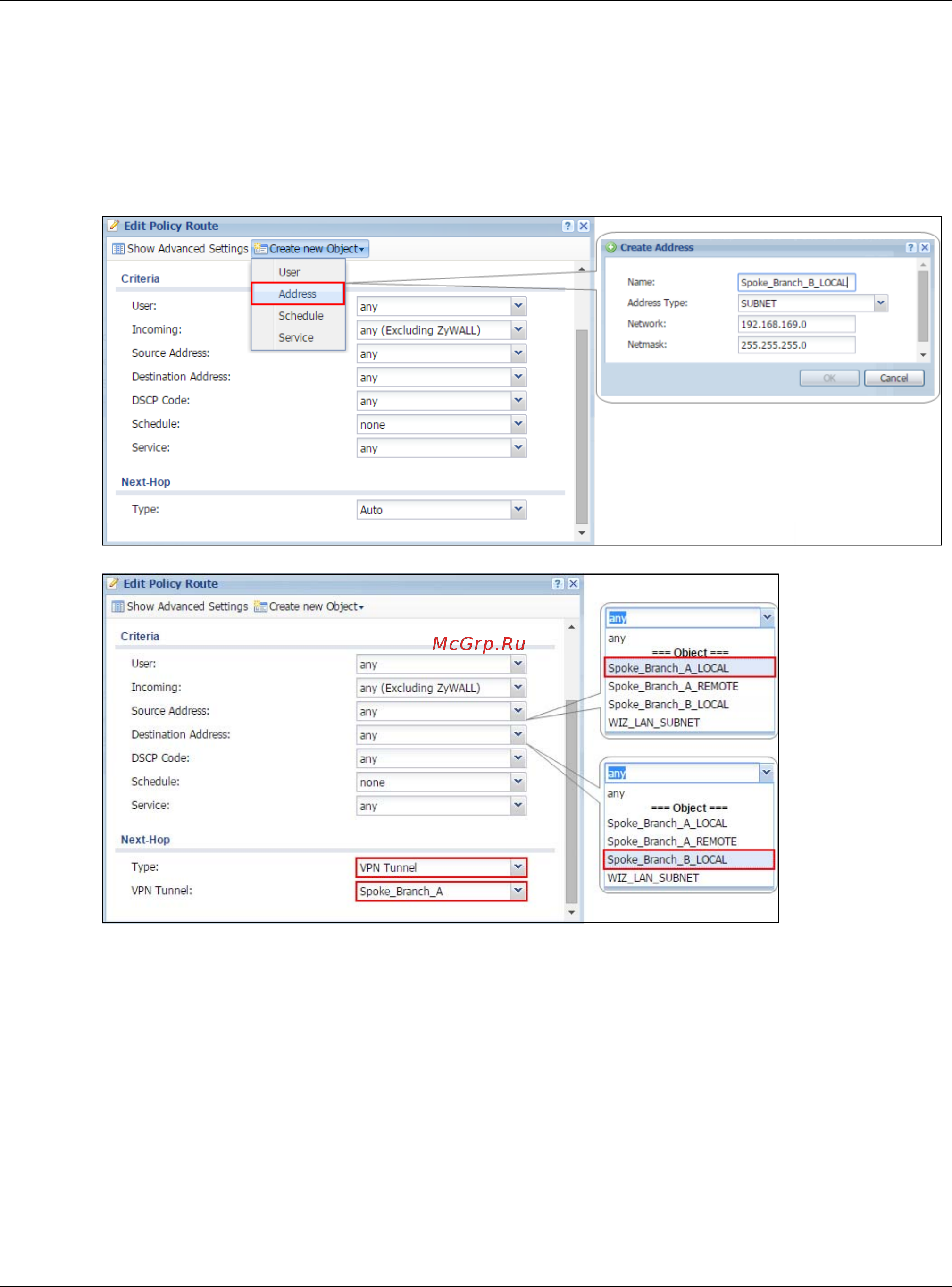

Figure 447 Network > Routing > Policy Route

Figure 448 Edit Policy Route
