Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
215
2 Go to CONFIGURATION > VPN > IPSec VPN > VPN Connection and select Enable. Type the
Connection Name used to identify this VPN connection. Select scenario as Site-to-site and VPN
Gateway which is configured in Step 1.

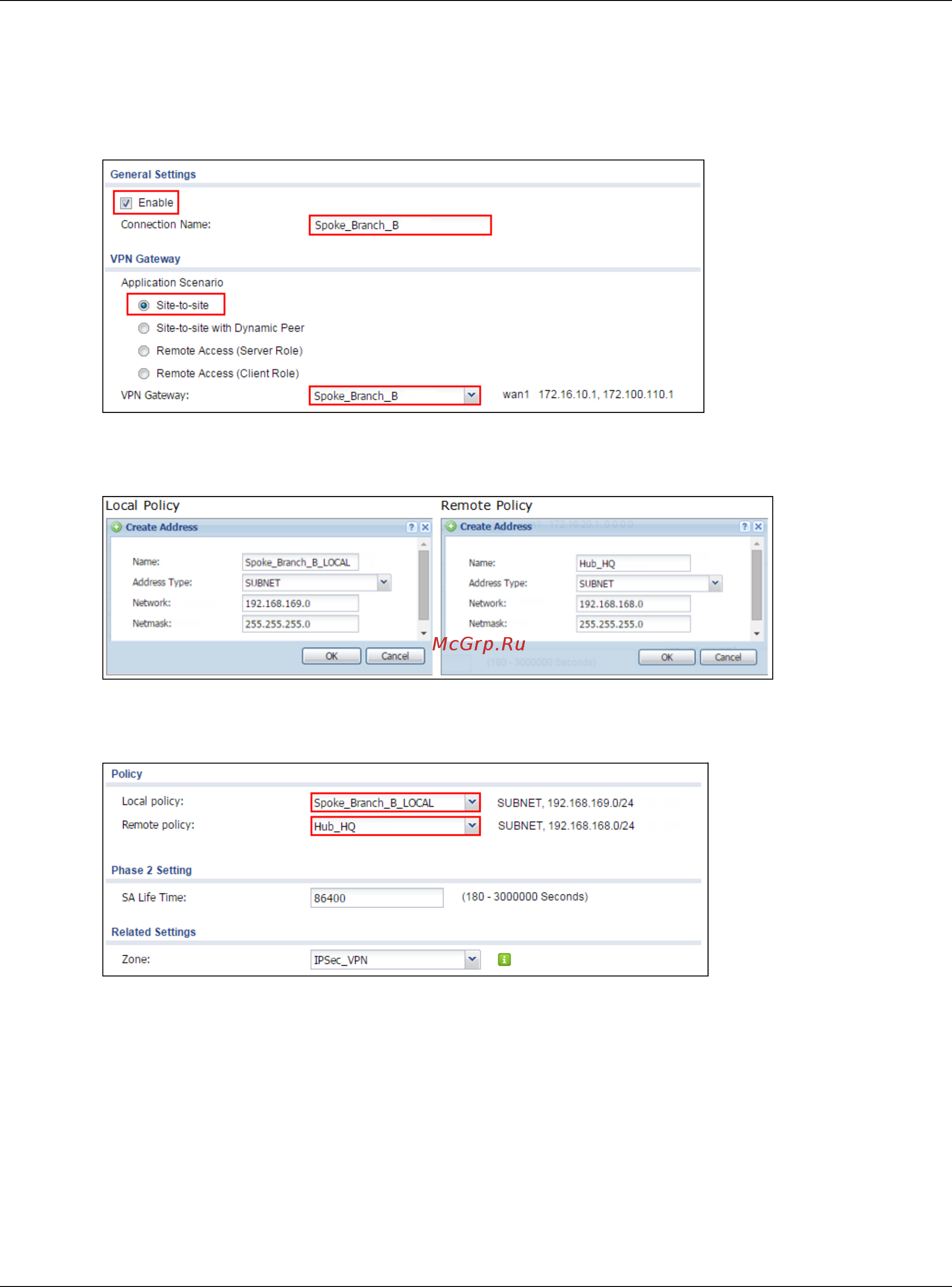

Figure 450 CONFIGURATION > VPN > IPSec VPN > VPN Connection > General Settings
and VPN Gateway
Click Create new Object to add the address of local network behind Branch B and an address of
local network behind Hub_HQ.
Figure 451 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Create new Object
Set Local Policy to be Spoke_Branch_B_LOCAL and Remote Policy to Hub_HQ which are
newly created. Click OK.
Figure 452 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Policy
