Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
262

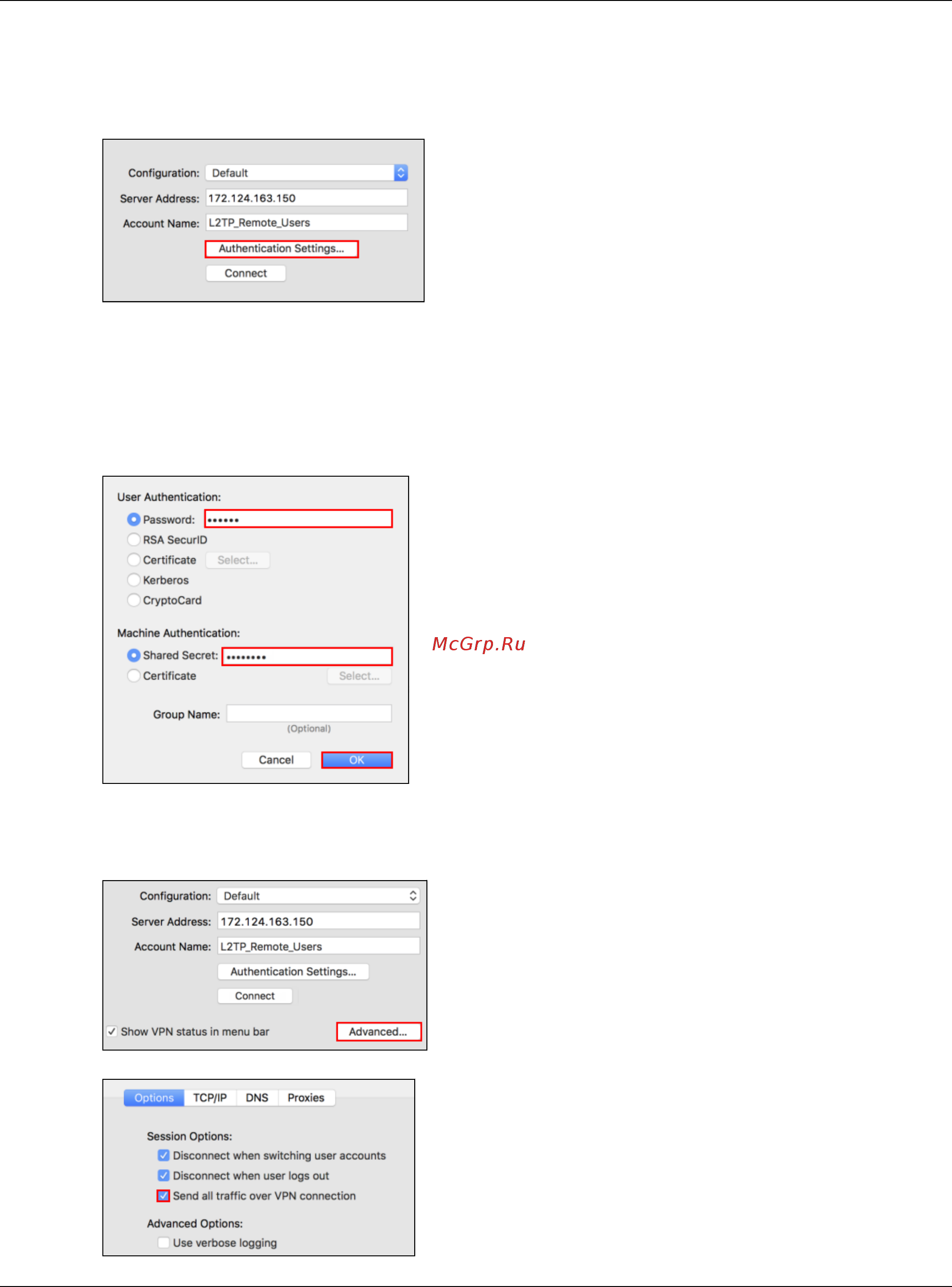

2 Configure Server Address to be the ZyWALL/USG’s WAN IP address (172.124.163.150 in this
example). Enter Account Name which should be the same as Allowed User created in ZyWALL/
USG (L2TP_Remote_Users in this example). Then, click Authentication Settings....
Figure 570 Click Authentication Settings
3 In the User Authentication section, enter Password which should be the same as Allowed User
created in ZyWALL/USG (zyx123 in this example).
In the Machine Authentication section, enter Shared Secret to be the pre-shared key of the
IPSec VPN gateway the ZyWALL/USG uses for L2TP VPN over IPSec (zyx12345 in this example).
Click OK.
Figure 571 Enter Password and Shared Secret
4 Go back to Configuration and click Advanced…. Select Send all traffic over VPN connection
to allow the L2TP/IPSec VPN traffic between ZyWALL/USG and MAC OS X system.
Figure 572 Click Advanced Button
Figure 573 Configure the Options
