Chapter 5 Create Client-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
268
5 Then, move the just created address object to Selected User/Group Objects. Similarly, in SSL
Application List (Optional) move the servers you want available to SSL users to Selected
Appellation Objects.

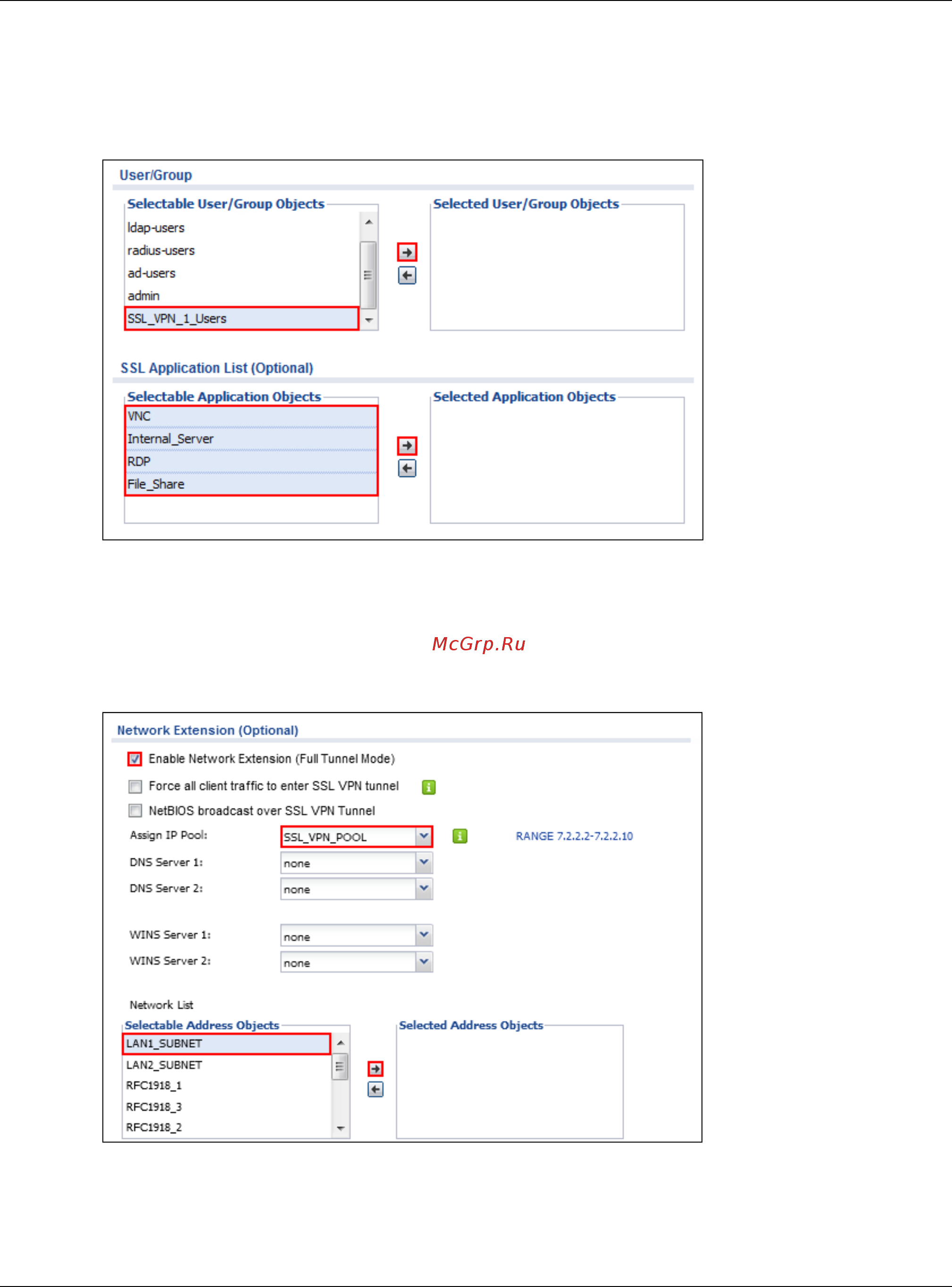

Figure 587 CONFIGURATION > VPN > SSL VPN > Access Privilege > Access Policy > User/
Group & SSL Application
6 Scroll down to Network Extension (Optional) to select Enable Network Extension to allow
SSL VPN users to access the resources behind the ZyWALL/USG local network.
Select network(s) name in the Selectable Address Objects list and click the right arrow button to
add to the Selected Address Objects list. You can select more than one network.
Figure 588 CONFIGURATION > VPN > SSL VPN > Access Privilege > Access Policy >
Network Extension (Optional)
