Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

270

2 Go to ZyWALL SecuExtender > Preferences, click the "+" button at the bottom left to add a

new SSL VPN connection.

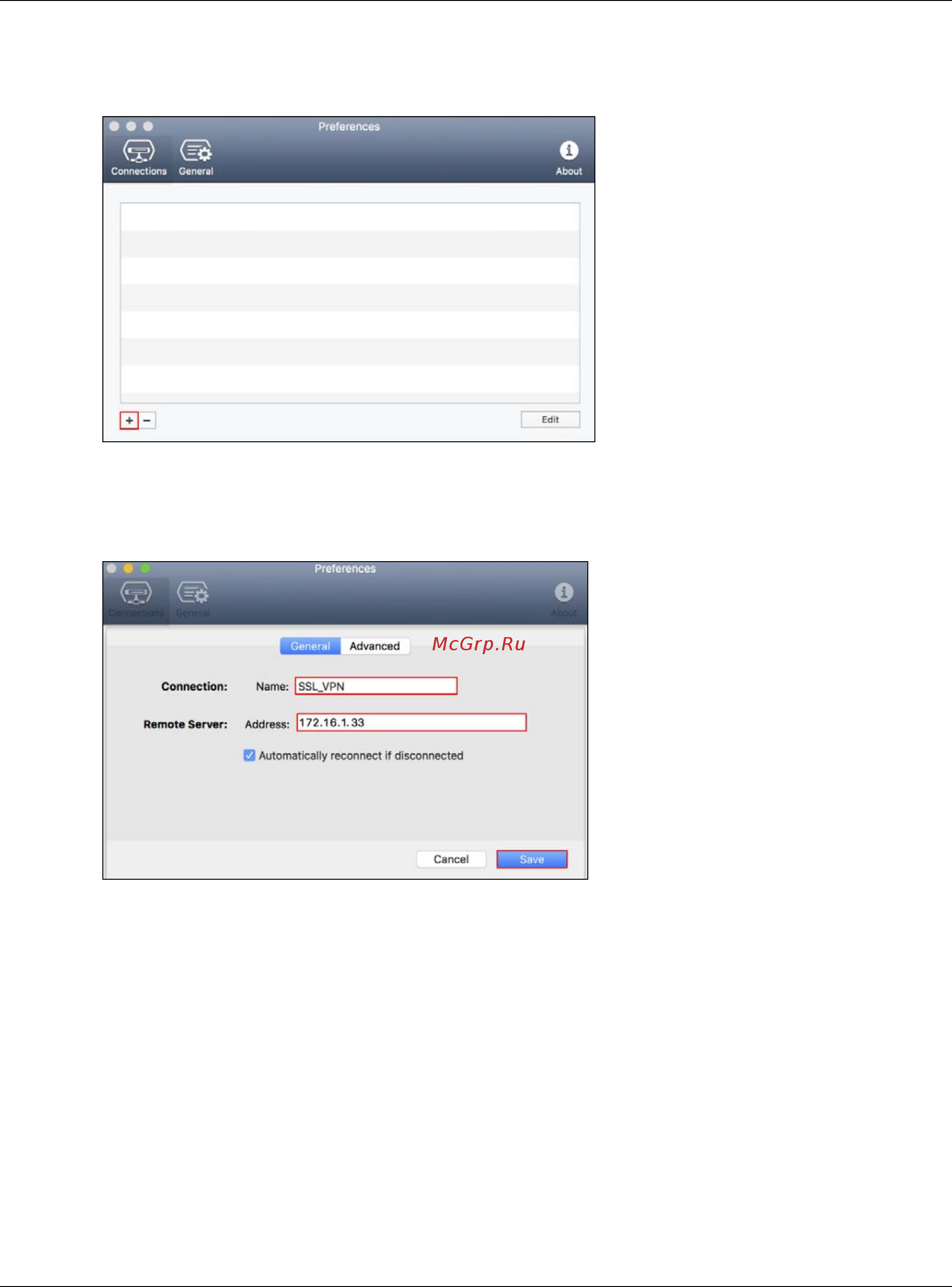

Figure 590 Click the “+” button in the Preferences Screen

3 Configure the Connection Name for you to identify the SSL VPN configuration. Then, set the

Remote Server Address to be the WAN IP of ZyWALL/USG (172.16.1.33 in this example). Click

Save.

Figure 591 Configure the General Preferences

4 Here are two methods to initiate SSL VPN connections:

4a From ZyWALL SecuExtender

4b From a Web Browser
