Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

275

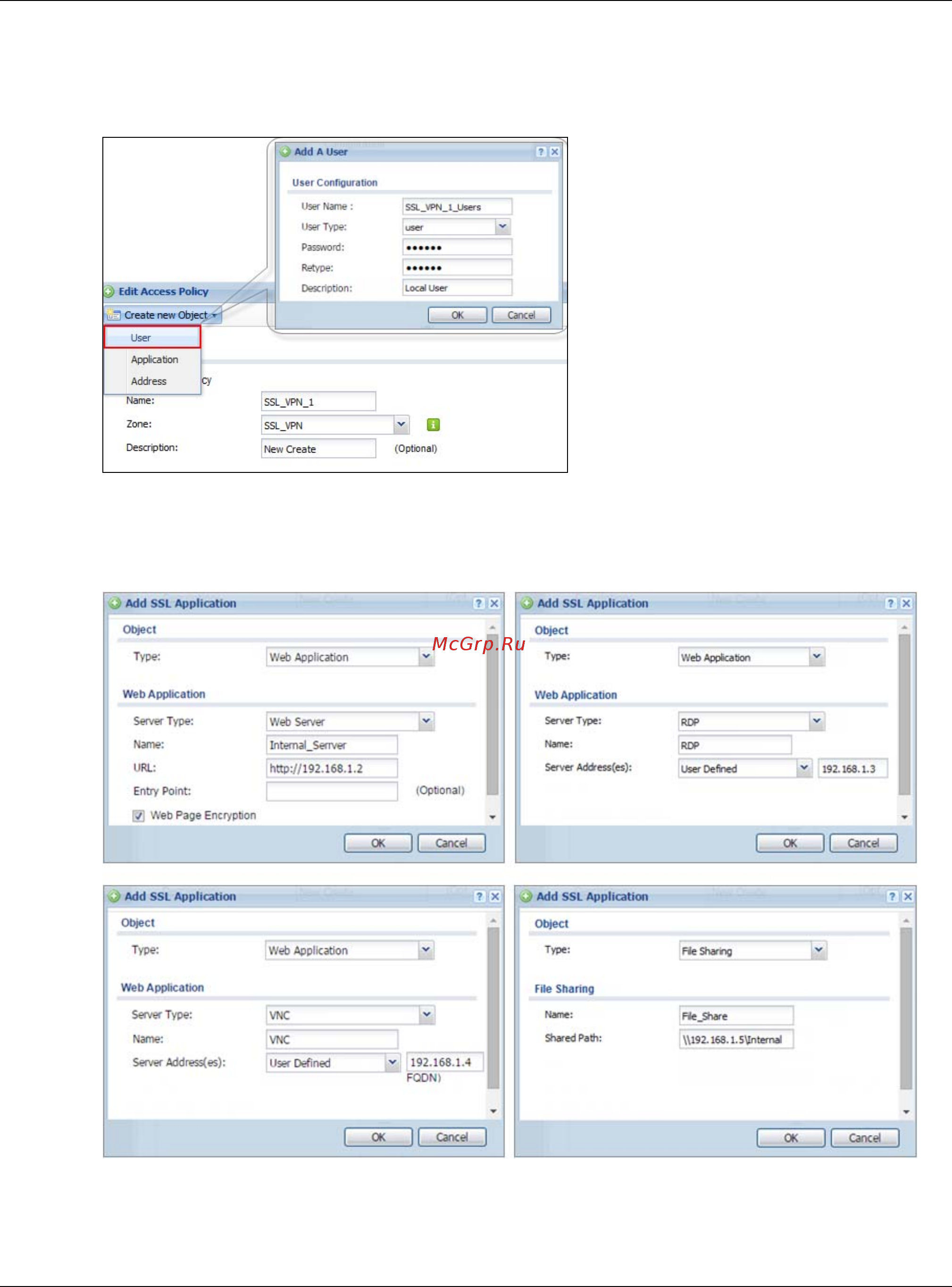

2 Go to Create new Object > User to add User Name (SSL_VPN_1_Users in this example) and

Password (4-24 characters, zyx168 in this example), click OK.

Figure 601 CONFIGURATION > VPN > SSL VPN > Access Privilege > Access Policy >

Create new Object > User

3 Go to Create new Object > Application to add servers that you will allow SSL_VPN_1_Users to

access, click OK.

Figure 602 CONFIGURATION > VPN > SSL VPN > Access Privilege > Access Policy >

Create new Object > Application
