Chapter 2 Set Up WiFi

ZyWALL/USG Series Handbook

2 Type the Wi-Fi guest User Name and Password, click Login.

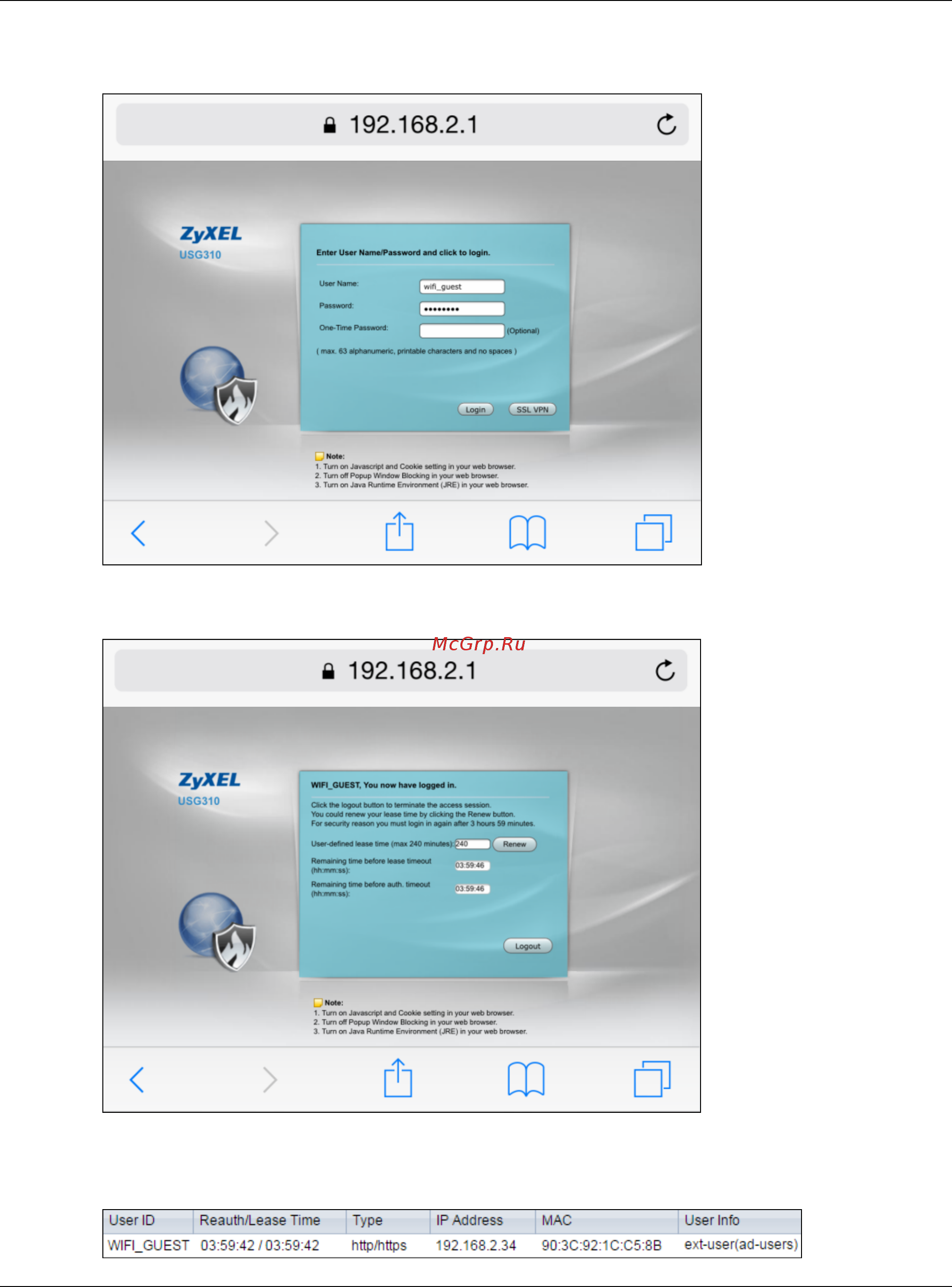

Figure 65 Fill in Your Login Information

3 The access session page will appear.

Figure 66 Access Session Screen

4 Go to the ZyWALL/USG Monitor > System Status > Login Users, you will see current login user

list as below.

Figure 67 Monitor > System Status > Login Users
