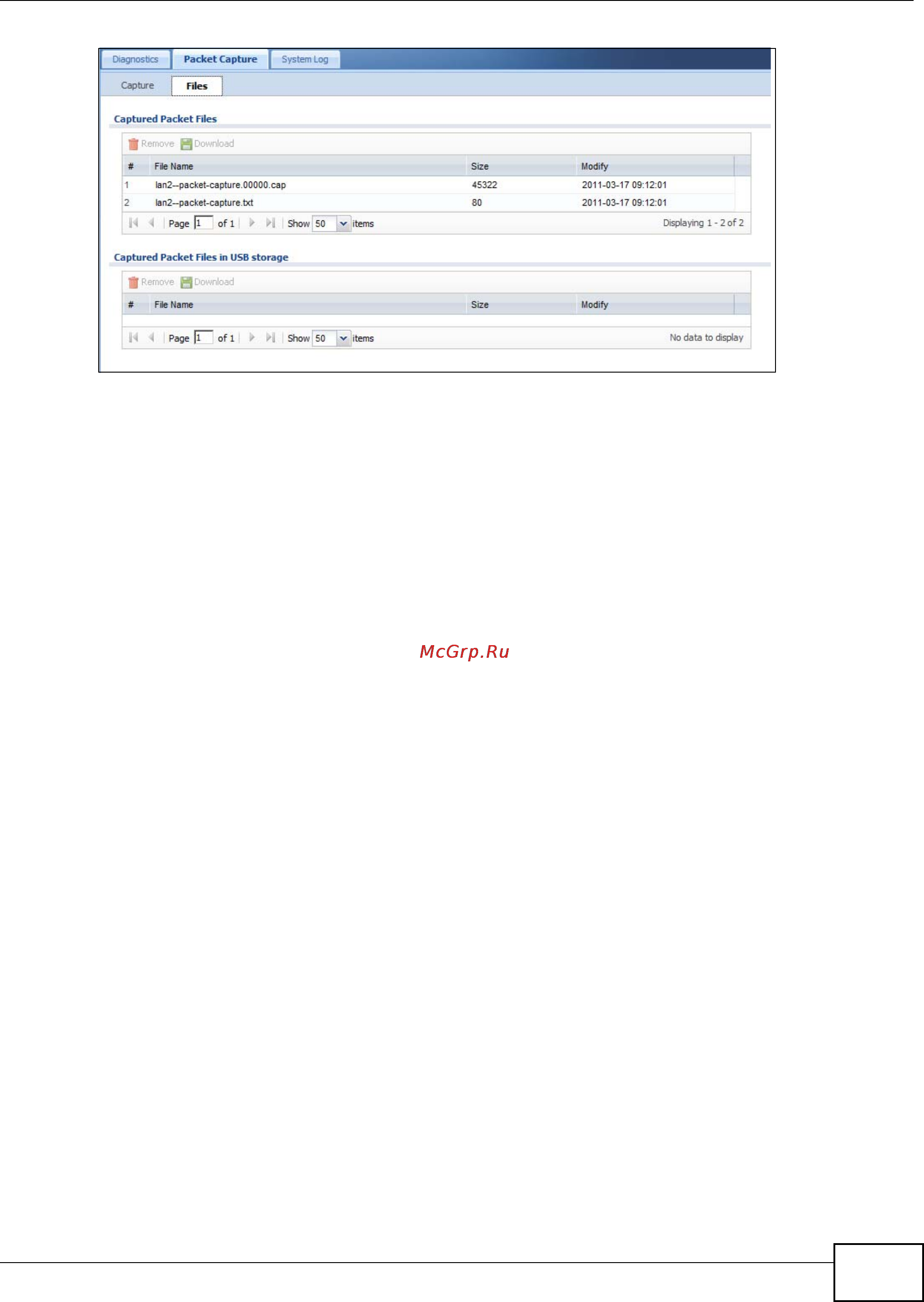

Zyxel ZyWALL USG 50 [141/150] Packet capture screen
![Zyxel ZyWALL USG 20 [141/150] Packet capture screen](/views2/1169217/page141/bg8d.png)
Chapter 6 Maintenance
ZyWALL USG 20-2000 User’s Guide
141
The ZyWALL uses the flash space to store packet capture files. Once the flash is full, the ZyWALL
stops generating the file or has new captured packets override old packets depending on your
setting. If your ZyWALL’s flash is full or the size of the packet capture files you want to capture may
exceed the remaining space, you can use a USB storage device.
Note: You can check the remaining flash space in the Dashboard or Maintenance >
Diagnostics > Packet Capture screen.
To save packet capture files to a connected USB storage device, do the following:
1 Insert a USB storage device to any USB port on your ZyWALL. In the Monitor > System Status >
USB Storage screen, make sure the USB device’s file system doesn’t display “Unknown”.
2 Go to Configuration > System > USB Storage, select Activate USB storage service and click
Apply.
3 In the Maintenance > Diagnostics > Packet Capture > Collect screen, select Save data to
USB storage.
