Zyxel ZyWALL USG 50 [81/150] Configuring policy routing

Chapter 4 Create Secure Connections Across the Internet

ZyWALL USG 20-2000 User’s Guide

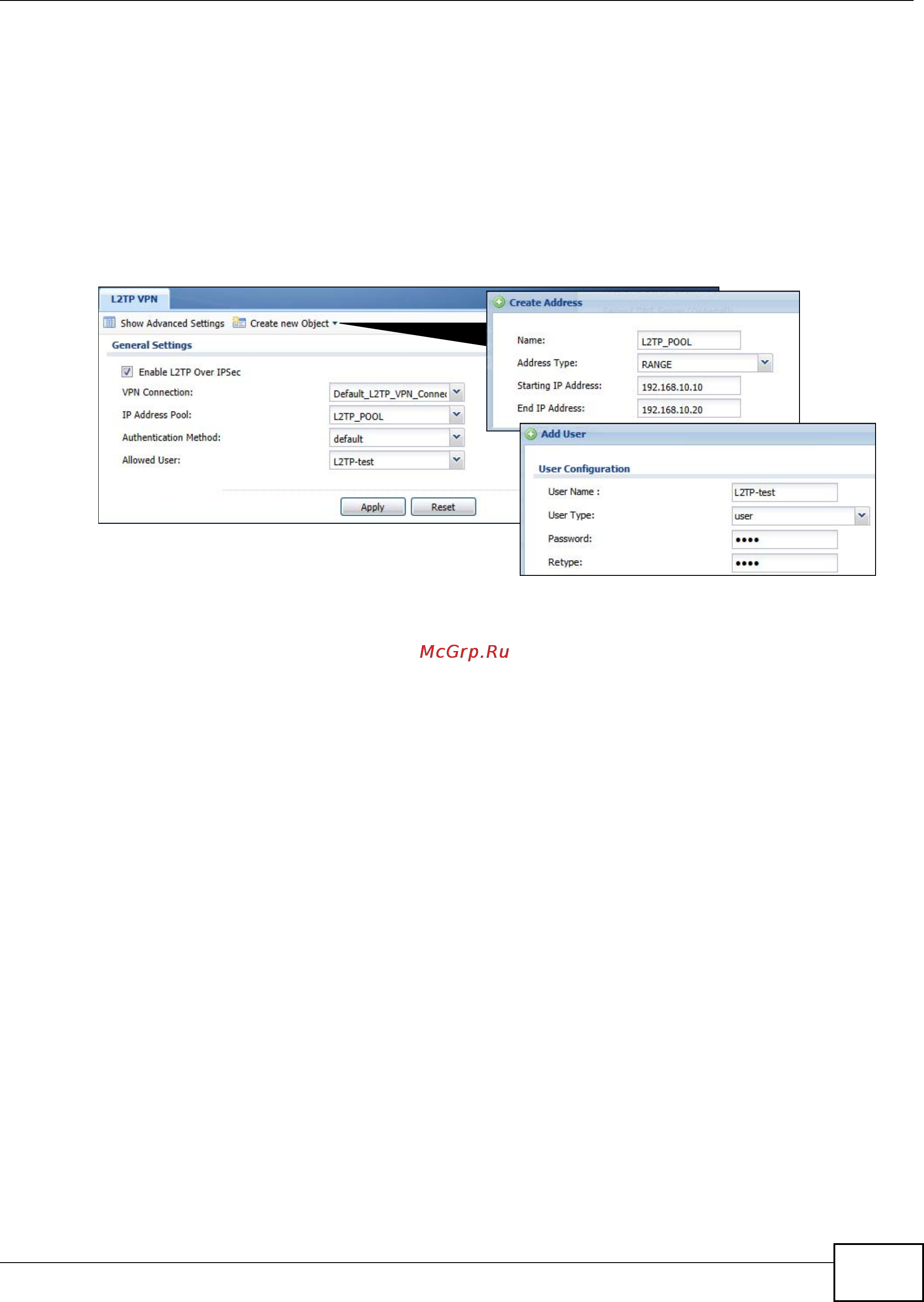

3 Click Configuration > VPN > L2TP VPN and then Create New Object > Address to create an

IP address pool for the L2TP VPN clients. This example uses L2TP_POOL with a range of

192.168.10.10 to 192.168.10.20. Click Create New Object > User/Group to create a user object

for the users allowed to use the tunnel. This example uses a user object named L2TP-test.

Enable the connection.

Set VPN Connection to Default_L2TP_VPN_Connection.

Set IP Address Pool to L2TP_POOL.

Select the authentication method (default in this example), and select the users that can use the

tunnel (L2TP-test in this example).

4.6.2 Configuring Policy Routing

You must also configure a policy route to let remote users access resources on the network behind

the ZyWALL.

• Set the policy route’s Source Address to the address object that you want to allow the remote

users to access (LAN_1SUBNET in this example).

•Set the Destination Address to the IP address pool that the ZyWALL assigns to the remote

users (L2TP_POOL in this example)).

• Set the next hop to be the VPN tunnel that you are using for L2TP VPN.
