Installation

! Please keep this instruction booklet in a safe place for future reference. If

the appliance is sold, given away or moved, please make sure the booklet is

also passed on to the new owners so that they may benet from the advice

contained within it.

! Please read this instruction manual carefully: it contains important information

concerning the safe operation, installation and maintenance of the appliance.

Positioning

! Do not let children play with the packaging material; it should be disposed

of in accordance with local separated waste collection standards (see

Precautions and tips).

! The appliance must be installed by a qualied professional in accordance

with the instructions provided. Incorrect installation may damage property or

cause harm to people or animals.

Built-in appliances

Use an appropriate cabinet to ensure that the appliance operates properly:

• The panels adjacent to the oven must be made of heat-resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can

withstand temperatures of up to 100°C.

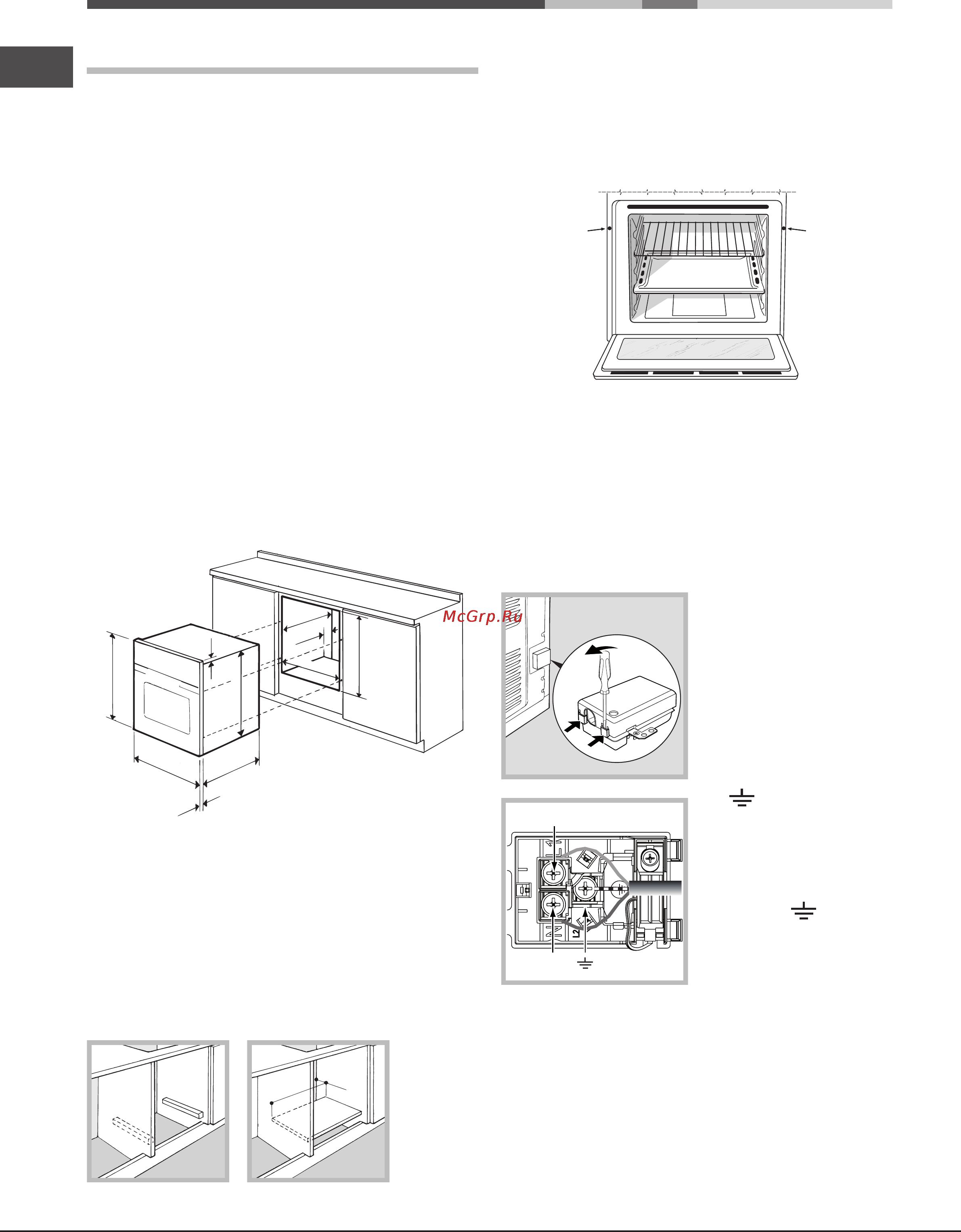

• To install the oven under the counter (see diagram) or in a kitchen unit,

the cabinet must have the following dimensions:

590 mm.

595 mm.

22,5 mm.*

20,5 mm.

550 mm.

570 mm.

20 mm.

575-585 mm.

45 mm.

560 mm.

550 mm.

min.

! The appliance must not come into contact with electrical parts once it has

been installed.

The indications for consumption given on the data plate have been calculated

for this type of installation.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be

removed. It is advisable to install the oven so that it rests on two strips of

wood, or on a completely at surface with an opening of at least 45 x 560

mm (see diagrams).

560 mm.

45 mm.

Centring and xing

Secure the appliance to the cabinet:

• Open the oven door.

• Remove the 2 rubber plugs covering the xing holes on the perimeter

frame.

• Fix the oven to the cabinet using the 2 wood screws.

• Replace the rubber plugs.

! All parts which ensure the safe operation of the appliance must not be

removable without the aid of a tool.

Electrical connection

Ovens equipped with a three-pole power supply cable are designed to operate

with alternating current at the voltage and frequency indicated on the data

plate located on the appliance (see below).

Fitting the power supply cable

1. Open the terminal board by

inserting a screwdriver into the side

tabs of the cover. Use the screwdriver

as a lever by pushing it down to open

the cover (see diagram).

2. Install the power supply cable by

loosening the cable clamp screw

and the three wire contact screws

L-N- .

Connect the wires to the

corresponding terminals: the Blue

wire to the terminal marked (N), the

Brown wire to the terminal marked

(L) and the Yellow/Green wire to the

terminal marked (see diagram).

3. Secure the cable by fastening the

clamp screw.

4. Close the cover of the terminal

board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data

plate (see table).

The appliance must be directly connected to the mains using an omnipolar

switch with a minimum contact opening of 3 mm installed between the

appliance and the mains. The switch must be suitable for the charge indicated

and must comply with current electrical regulations (the earthing wire must not

be interrupted by the switch). The supply cable must be positioned so that it

does not come into contact with temperatures higher than 50°C at any point

(the back panel of the oven, for example).
