Installation

! Please keep this instruction booklet in a safe place for future reference. If

the appliance is sold, given away or moved, please make sure the booklet is

also passed on to the new owners so that they may benet from the advice

contained within it.

! Please read this instruction manual carefully: it contains important information

concerning the safe operation, installation and maintenance of the appliance.

Positioning

! Do not let children play with the packaging material; it should be disposed

of in accordance with local separated waste collection standards (see

Precautions and tips).

! The appliance must be installed by a qualied professional in accordance

with the instructions provided. Incorrect installation may damage property or

cause harm to people or animals.

! This unit may be installed and used only in permanently ventilated rooms in

accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440,

Par. 2 and B.S. 6891 Current Editions. The following requirements must be

observed:

• The room must be equipped with an air extraction system that expels

any combustion fumes. This may consist of a hood or an electric fan that

automatically starts each time the appliance is switched on.

In a chimney stack or branched flue.

(exclusively for cooking appliances)

Directly to

the Outside

• The room must also allow proper air circulation, as air is needed for

combustion to occur normally. The ow of air must not be less than 2 m

per kW of installed power.

The air circulation system may take air directly

from the outside by means of a pipe with an

inner cross section of at least 100 cm

; the

opening must not be vulnerable to any type

of blockages.

The system can also provide the air needed

for combustion indirectly, i.e. from adjacent

rooms fitted with air circulation tubes as

described above. However, these rooms must

not be communal rooms, bedrooms or rooms

that may present a re hazard.

• Liquid petroleum gas sinks to the oor as it is heavier than air. Therefore,

rooms containing LPG cylinders must also be equipped with vents to allow

gas to escape in the event of a leak. As a result LPG cylinders, whether

Examples of

ventilation holes

for comburant air.

Enlarging the ventilation slot

between window and floor.

Adjacent

Room

Room to be

Vented

partially or completely full, must not be installed or stored in rooms or

storage areas that are below ground level (cellars, etc.). It is advisable to

keep only the cylinder being used in the room, positioned so that it is not

subject to heat produced by external sources (ovens, replaces, stoves,

etc. ) which could raise the temperature of the cylinder above 50°C.

Built-in appliances

Use an appropriate cabinet to ensure that the appliance operates properly:

• The panels adjacent to the oven must be made of heat-resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can

withstand temperatures of up to 100°C.

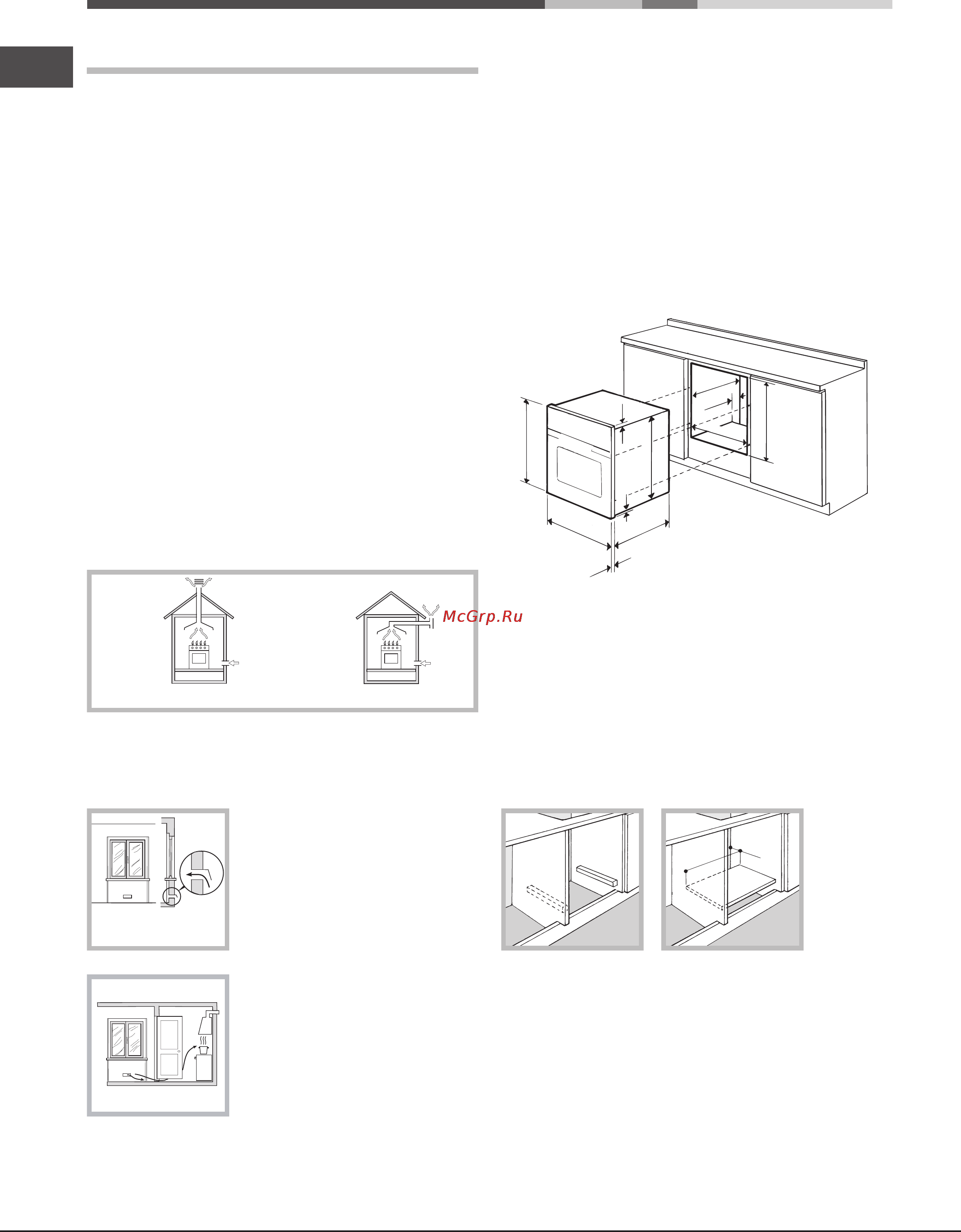

• To install the oven under the counter (see diagram) or in a kitchen unit,

the cabinet must have the following dimensions:

595 mm.

25 mm.

545 mm.

5 mm.

567 mm.

23 mm.

575-585 mm.

45 mm.

558 mm.

547 mm. min.

! The appliance must not come into contact with electrical parts once it has

been installed.

The indications for consumption given on the data plate have been calculated

for this type of installation.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be

removed. It is advisable to install the oven so that it rests on two strips of

wood, or on a completely at surface with an opening of at least 45 x 560

mm (see diagrams).

560 mm.

45 mm.

Centring and xing

Secure the appliance to the cabinet by opening the oven door and inserting

4 screws into the 4 holes on the outer frame.
