Hotpoint-Ariston 7ofhr 640 (an)ru/ha s [7/24] Electrical connection

! All parts which ensure the safe operation of the appliance must not be

removable without the aid of a tool.

Electrical connection

Ovens equipped with a three-pole power supply cable are designed to operate

with alternating current at the voltage and frequency indicated on the data

plate located on the appliance (see below).

Fitting the power supply cable

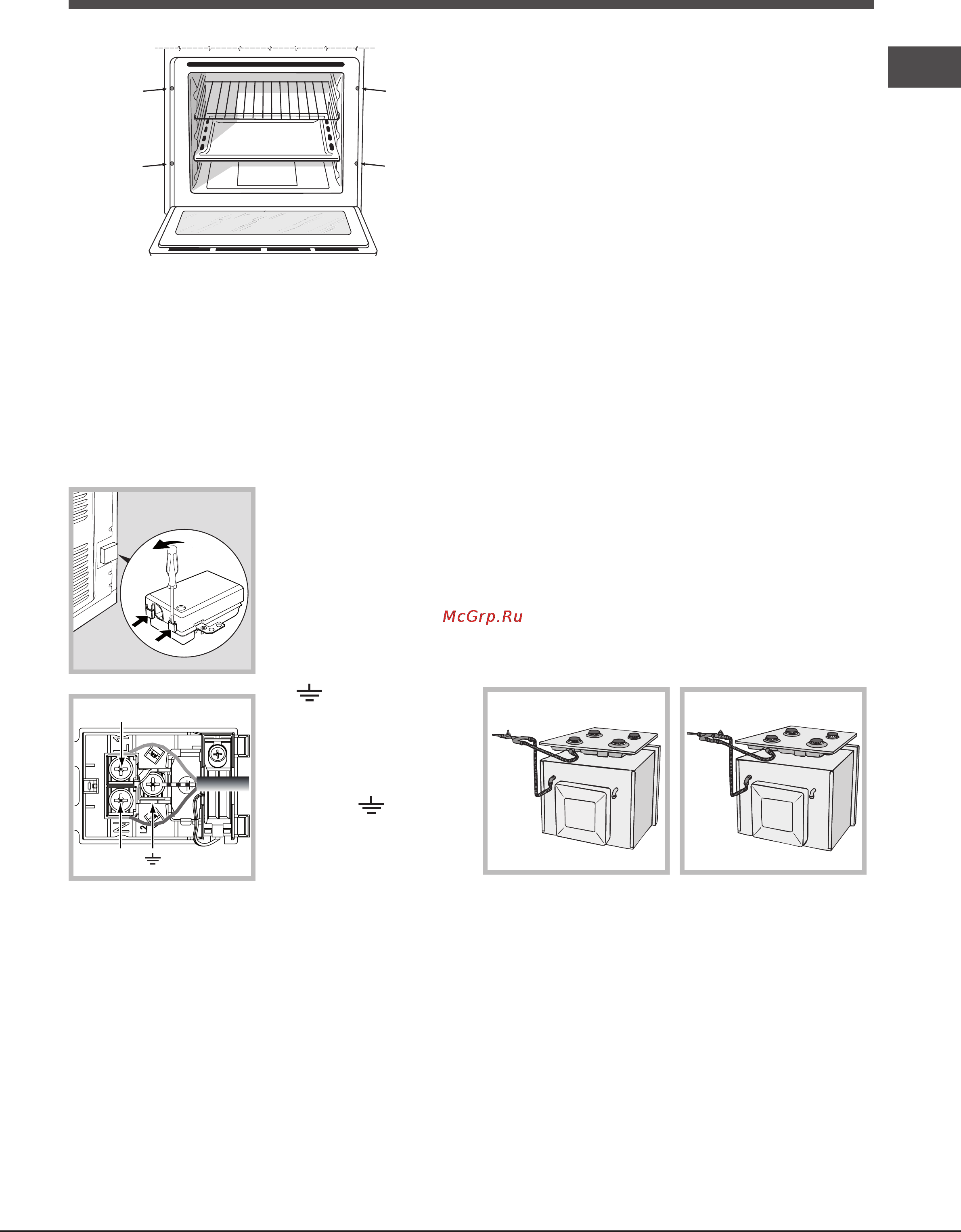

1. Open the terminal board by

inserting a screwdriver into the side

tabs of the cover. Use the screwdriver

as a lever by pushing it down to open

the cover (see diagram).

2. Install the power supply cable by

loosening the cable clamp screw

and the three wire contact screws

L-N- .

Connect the wires to the

corresponding terminals: the Blue

wire to the terminal marked (N), the

Brown wire to the terminal marked

(L) and the Yellow/Green wire to the

terminal marked (see diagram).

3. Secure the cable by fastening the

clamp screw.

4. Close the cover of the terminal

board.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data

plate (see table).

The appliance must be directly connected to the mains using an omnipolar

switch with a minimum contact opening of 3 mm installed between the

appliance and the mains. The switch must be suitable for the charge indicated

and must comply with current electrical regulations (the earthing wire must not

be interrupted by the switch). The supply cable must be positioned so that it

does not come into contact with temperatures higher than 50°C at any point

(the back panel of the oven, for example).

! The installer must ensure that the correct electrical connection has been

performed and that it is fully compliant with safety regulations.

Before connecting the appliance to the power supply, make sure that

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is

indicated on the data plate.

• The voltage is in the range between the values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is

incompatible with the plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the

electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians

only (see Assistance).

! The manufacturer declines any liability should these safety measures

not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas

cylinder in compliance with current National regulations. Before carrying

out the connection, make sure the cooker is compatible with the gas supply

you wish to use. If this is not the case, follow the instructions indicated in the

paragraph “Adapting to different types of gas.”

When using liquid gas from a cylinder, install a pressure regulator that complies

with current National regulations.

! Check that the pressure of the gas supply is consistent with the values

indicated in Table 1 (“Burner and nozzle specications”) since this will ensure

the safe operation and longevity of your appliance while maintaining efcient

energy consumption.

! Should you need to install a gas hob on top of a built-in gas oven, it is strictly

forbidden to connect the two or to use a single cut-off tap. The two appliances

should be connected separately, and each one should have its own stop tap in

order to make them completely independent from one another (see gures).

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to

place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe tting on the appliance supply ramp

and this is tted with a seal in order to prevent leaks. The seal must always be

replaced after rotating the pipe tting (the seal is provided with the appliance).

The gas supply pipe tting is a threaded 1/2 gas cylindrical male attachment.

Connecting a exible jointless stainless steel pipe to a threaded

attachment

The gas supply pipe tting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000 mm

when fully extended. Once connection has been carried out, make sure that

the exible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current National regulations.
