JVC kw-v41btee [51/66] Connecting wires to terminals
![JVC kw-v41btee [51/66] Connecting wires to terminals](/views2/1171033/page51/bg33.png)
(POWER ANTENNA)
(REMOTE OUTPUT)
(STEERING WHEEL REMOTE)
(ILLUMI)
ENGLISH 51
CONNECTION/INSTALLATION
Connection

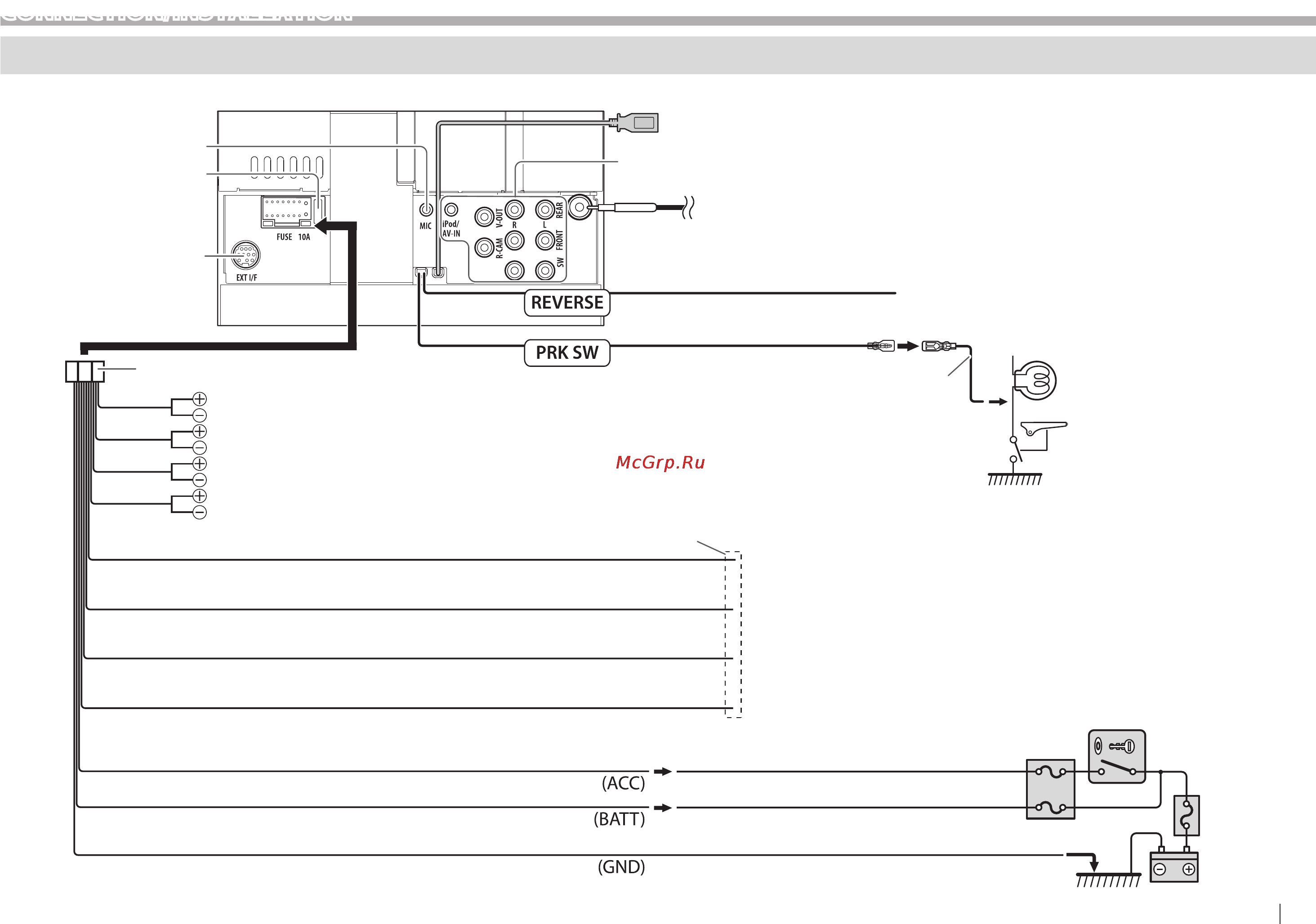

R Connecting wires to terminals
See page52.
See page53.*
1
USB terminal (0.8 m): See page52.*
3
10 A fuse
Ignition key switch
Fuse box
Battery
Connect to the vehicle’s reverse lamp harness when
using the optional rear view camera.
Connect to the vehicle’s
parking brake detection
switch harness.
• For best safety, be sure to
connect the parking sensor.
To automatic antenna if any (250 mA max.)
To the remote lead of other equipment (200 mA max.)
To the OE remote adapter matching your car
To car light control switch
To car chassis
Purple with white stripe
(Reverse sensor wire)
Light green (Parking sensor wire)
Connect SiriusXM
Connect Vehicle
Tuner (commercially
available).*
2
(Page 52)
3
1
White ª / White with black stripe · : To front speaker (left)
Gray ª / Gray with black stripe · : To front speaker (right)
Green ª / Green with black stripe · : To rear speaker (left)
Purple ª / Purple with black stripe · : To rear speaker (right)
Blue (Power antenna wire)
Blue with white stripe (Remote output wire)
Light blue with yellow stripe (Steering remote control wire)
Orange with white stripe (Dimmer control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
*
4
*
1
Only for KW-V41BT/KW-V21BT.
*
2
Only for KW-V41BT Region 1/KW-V21BT Region 1.
*
3
Only for KW-V41BT.
*
4
If no connections are made, do not let the cable come
out from the tab.
Connect the antenna cord to the
antenna terminal.
