52

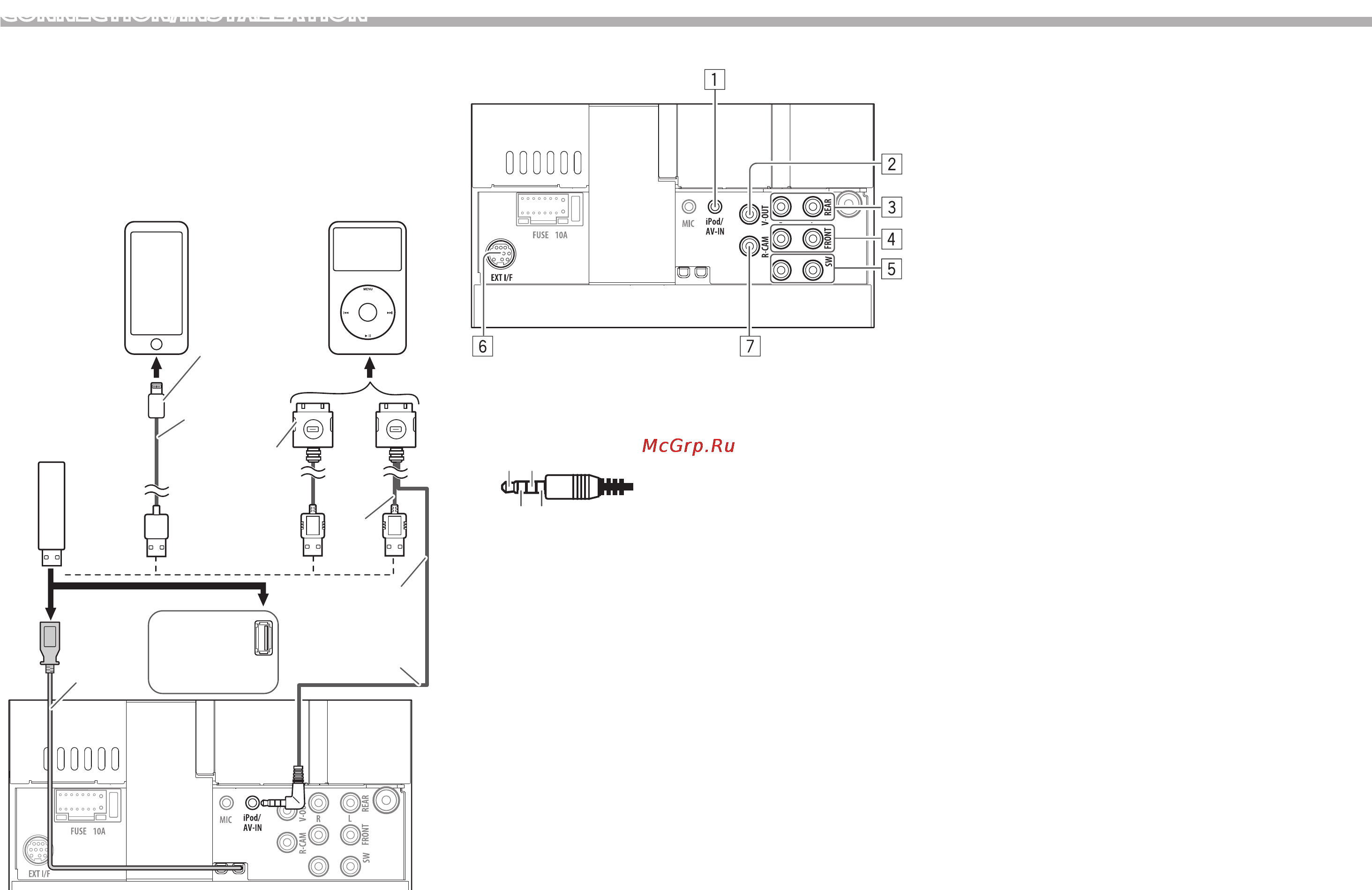

CONNECTION/INSTALLATION
R Connecting a USB device/iPod/iPhone
USB device
(commercially
available)
iPod nano (7th
Generation)/
iPod touch (5th
Generation)/iPhone
5S/iPhone 5C/iPhone 5
(commercially available)
iPod/iPhone except
for iPod nano (7th
Generation)/iPod touch
(5th Generation)/iPhone
5S/iPhone 5C/iPhone 5
(commercially available)
KS-U59 (optional
accessory)
KS-U62
(optional accessory)
USB 2.0 cable
(accessory of
iPod/iPhone)
KW-V41BT
KW-V21BT
KW-V11
(Front panel)
0.8 m
0.8 m
1.8 m
0.8 m
R Connecting external components
1 iPod/AV-IN
• Connect the following type of 4-pole mini
plug:
1
24
3
1 Left audio
2 Right audio
3 Ground
4 Composite video
2 Video output (Yellow)
3 Rear preout*
1
• Audio left output (White)
• Audio right output (Red)
4 Front preout*
1
• Audio left output (White)
• Audio right output (Red)
5 Subwoofer preout (monaural output)*
1
• Subwoofer left output (White)
• Subwoofer right output (Red)
6 Expansion port for connecting SiriusXM Connect
Vehicle Tuner (commercially available)*
2
7 Rear view camera input (Yellow)
*
1
When connecting an external amplifier, connect its ground wire to
the chassis of the car; otherwise the unit may be damaged.
*
2
Only for KW-V41BT Region 1/KW-V21BT Region 1.
