Avago Technologies
- 22 -
12Gb/s MegaRAID SAS RAID Controllers User Guide
February 2015
Chapter 2: MegaRAID SAS Hardware Installation
SAS Device Cables and Connectors
2.5.1 Connecting a RAID Controller with Internal Port Connectors by Cable to Internal Drives
This section provides step-by-step instructions for connecting the SAS cable from the internal SAS port connectors on
the RAID controller to internal SAS drives and SATA drives.
Follow these steps to connect your RAID controller with internal SAS port connectors directly to SAS drives or
SATA drives.
NOTE The MegaRAID SAS 9361-8i RAID controller is shown as an example.
You can connect the other MegaRAID SAS 93xx controllers with
internal connectors in the same way.
1. Insert the SFF-8643 internal mini-SAS HD-4i connector on the cable into a SFF-8643 internal mini-SAS HD-4i
connector on the MegaRAID SAS 9361-8i RAID controller, as shown in the following figure.
2. Plug the HDD connector on the other end of the cable into the connector on the SAS drive or SATA drive.
3. If you have another drive, connect it to another plug on the internal cable.
You can connect other devices if the cable has more connectors.

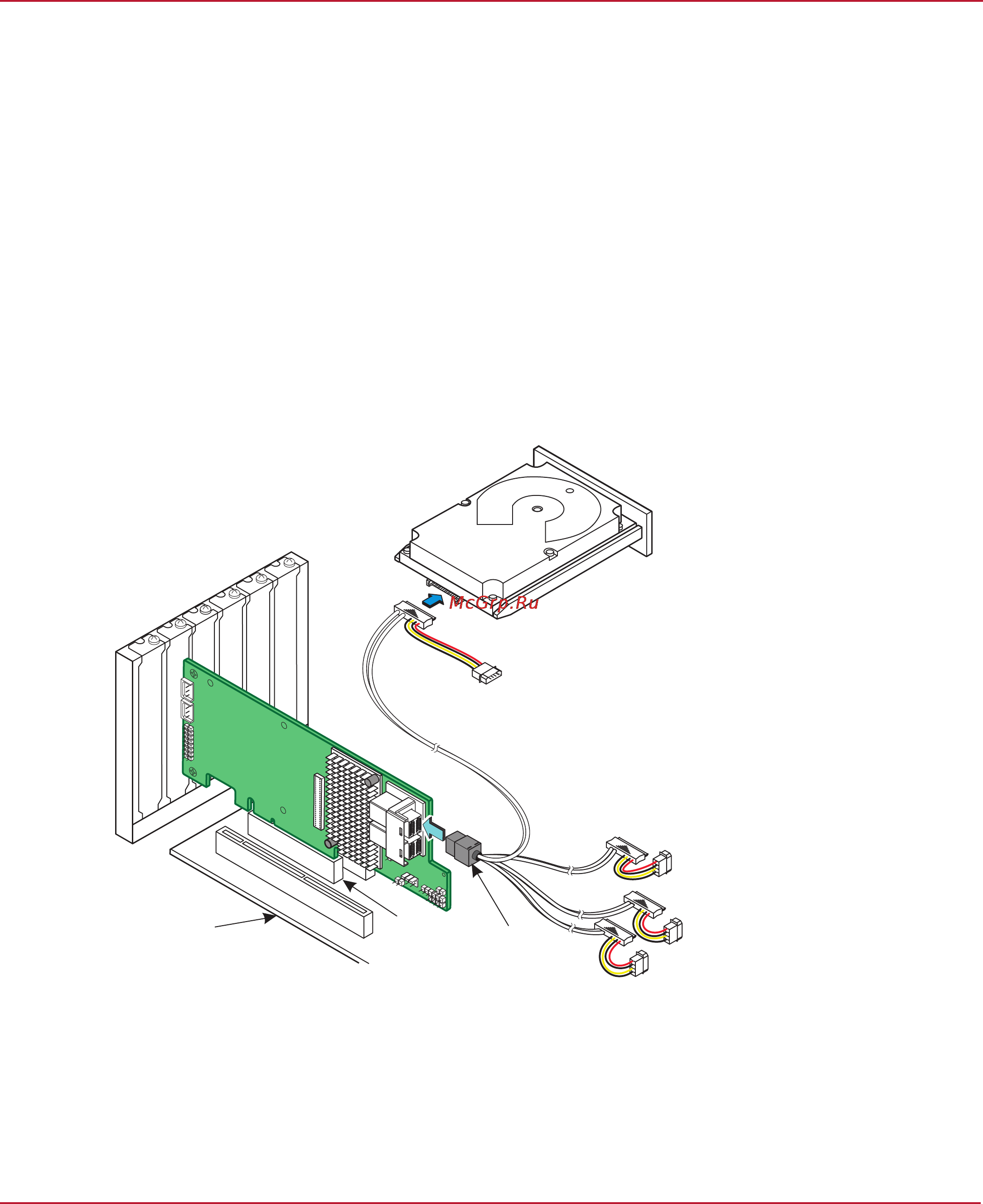

Figure 7 Connecting the MegaRAID SAS 9361-8i RAID Controller to a Drive
3_01681-03
Edge of
Motherboard
PCIe Slot
HDD
Connector
Power
Connector
SFF-8643
HD Mini SAS
Connector
