Avago Technologies
- 32 -
12Gb/s MegaRAID SAS RAID Controllers User Guide
February 2015
Chapter 3: MegaRAID SAS RAID Controller Characteristics
12GB/s MegaRAID SAS RAID Controller Family

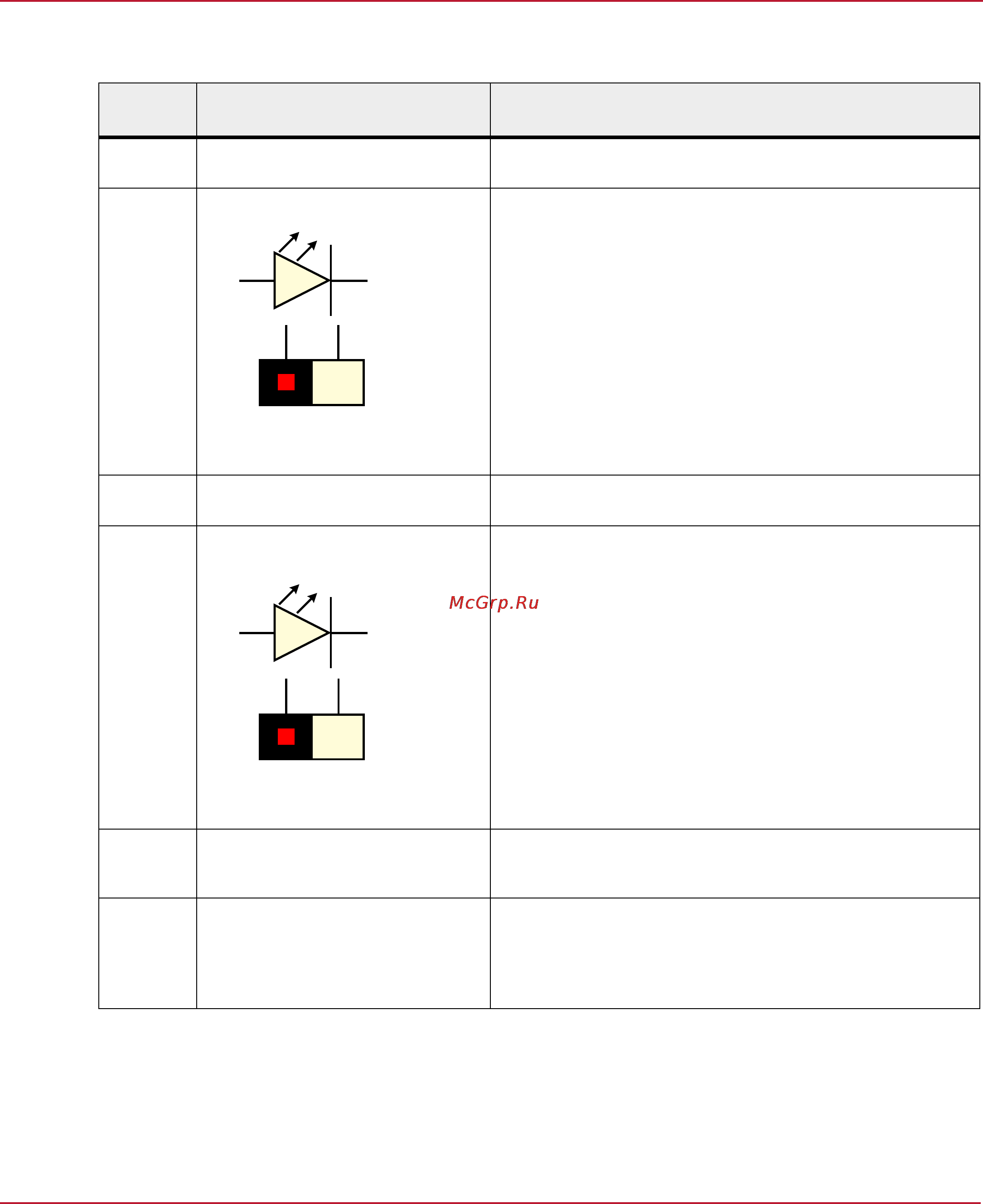

The following table describes the jumpers and the connectors on the MegaRAID SAS 9380-8e RAID controller.
Table 6 Jumpers and Connectors
Jumper/
Connector
Type Description
J1A5 Default Serial boot ROM (SBR) header 2-pin connector
Reserved for Avago use.
J1A6 Global drive fault LED header 2-pin connector
Connects to an LED that indicates activity on the drives connected to
the controller.
J1A8 CPLD header 5-pin connector
Reserved for Avago use.
J1A11 Global hard disk drive (HDD) activity LED
header
2-pin connector
Connects to an LED that indicates activity on the drives connected to
the controller.
J1A12 SAS Port 0 through Port 7 external
connector
Two SFF-8644 mini-SAS HD-4e external connectors
Connects the controller by cable to an enclosure containing SAS drives
or SATA drives.
J1B1 Advanced software options hardware key
header
3-pin header
Enables support for selected advanced features, such as Recovery,
CacheCade, FastPath, and SafeStore disk encryption.
Refer to the MegaRAID Advanced Services Hardware Key Quick
Installation Guide for more information.
B
-$
YH YH
DN
B
-$
YH YH
DN
