Landmann 12375 [6/28] Controls

GRILLCHEF

Controls

Pos. Designation Function

A Piezo igniter Ignite gas on burner (press).

B Flame regulator left Ignite the left burner (keep depressed briey and turn to "lar-

ge ame" setting).

After ignition adjust the heat input for the left burner (turn).

right Fill burner with gas to ignite (keep depressed and turn to

"large ame" setting).

After ignition adjust the heat input for the right burner

(turn).

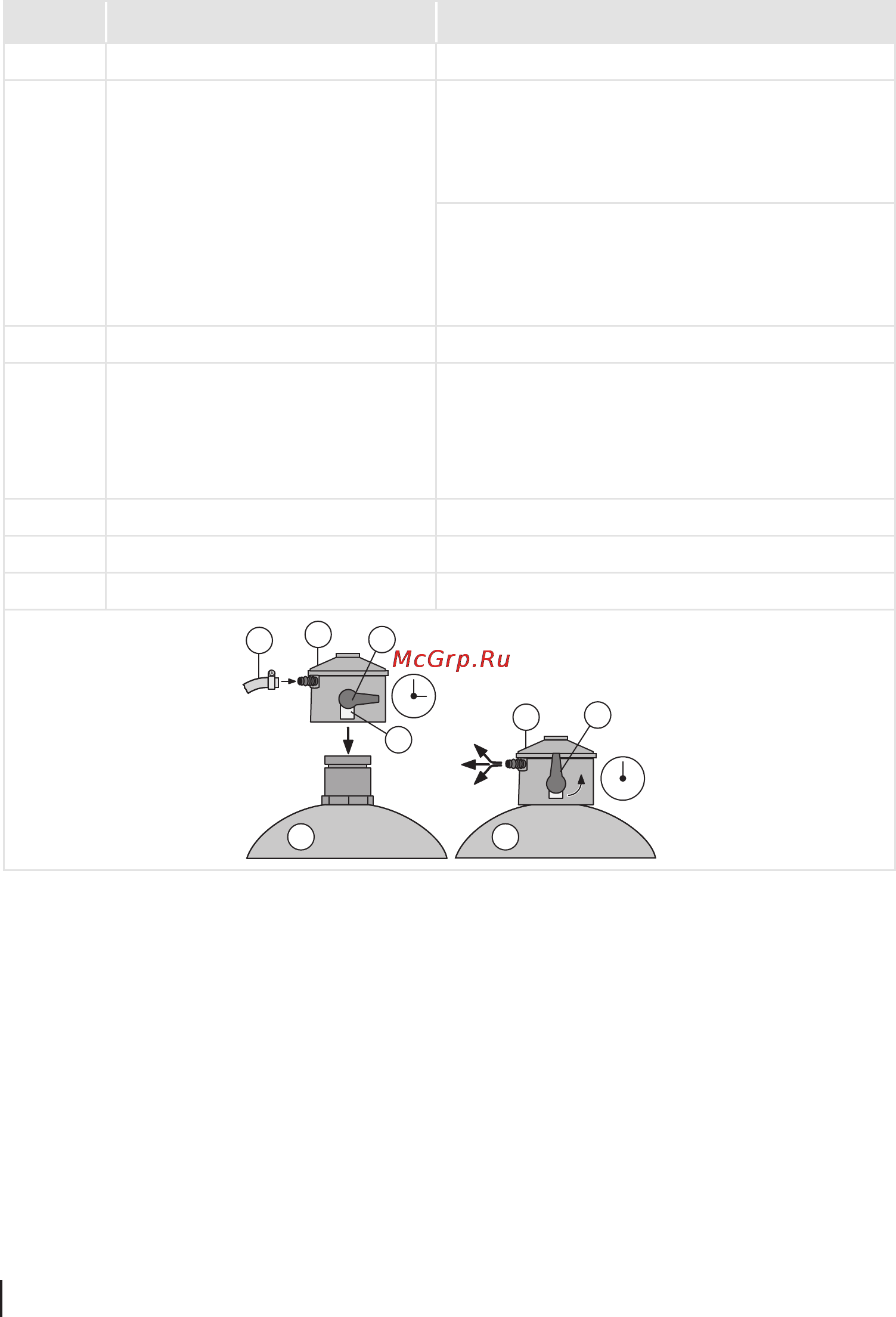

G1 Pressure reducer Reduce gas pressure.

G2 Operating lever Cut-o safety device with 2 settings:

3 o'clock setting: Gas is o - connect / disconnect the pressure

reducer

6 o'clock setting: Gas is on.

G3 Release button Disconnects the pressure reducer from the cylinder valve

G4 Gas bottle with bottle valve Fuel container

G5 Gas hose with hose clip Directs gas to burner.

G4 G4

Function

When the bottle valve (G2 at a 6 o'clock position) and the ame regulator (B) are open the gas ows through the gas hose

(G5) and the adjusting element into the burner (10).

When the Piezo-igniter (A) is actuated a spark is emitted from the spark plug on the burner (10), which then ignites the

gas.

The heat output can be adjusted for the left and right burners by using the ame regulator (B).
