Landmann 12375 [13/28] Carrying out assembly

GRILLCHEF

Carrying out assembly

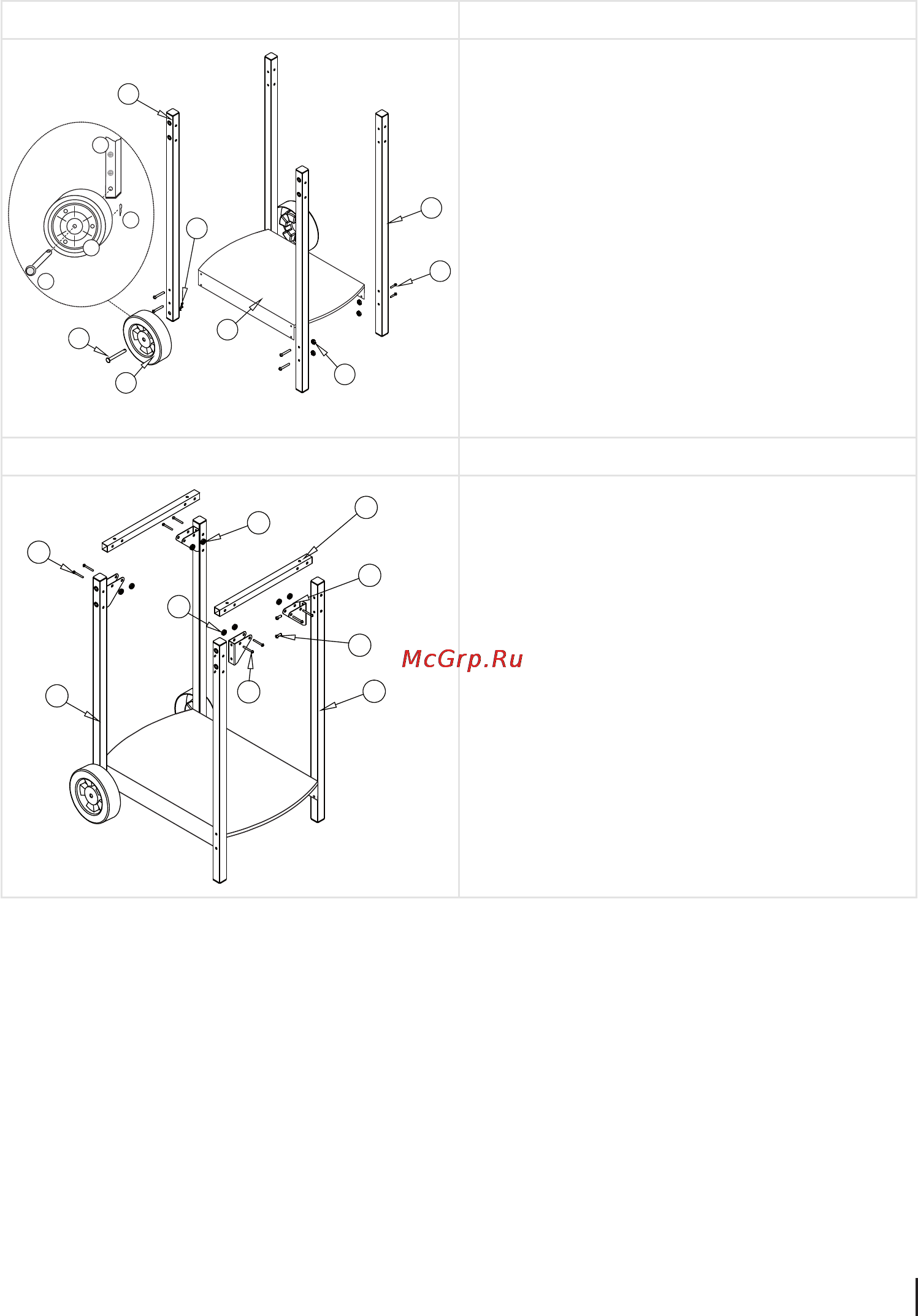

Assembly step 1

• Assemble the legs (19 + 20) to the shelf (23) using

M5x35 bolts (24) and M5 nuts (28). Make sure that the

smaller threaded holes of the legs are facing inwards

(for assembling the mounting bracket (18)).

• Insert the axles (21) through the wheels (22)

• Insert the axles (21) through the lower holes of the

wheel legs (20) and secure the axles (21) in place

using split pins (26).

Assembly step 2

• Secure the mounting bracket (18) (see connecting ele-

ments) to the legs (20, 19) using M5x10 bolts (29).

• The cross bars (17) are positioned in the mounting

bracket (18) and secured in place using M5x30 bolts

(30) and M5 nuts (28). When doing this make sure

the ends of the bolts are facing inwards.
