GRILLCHEF

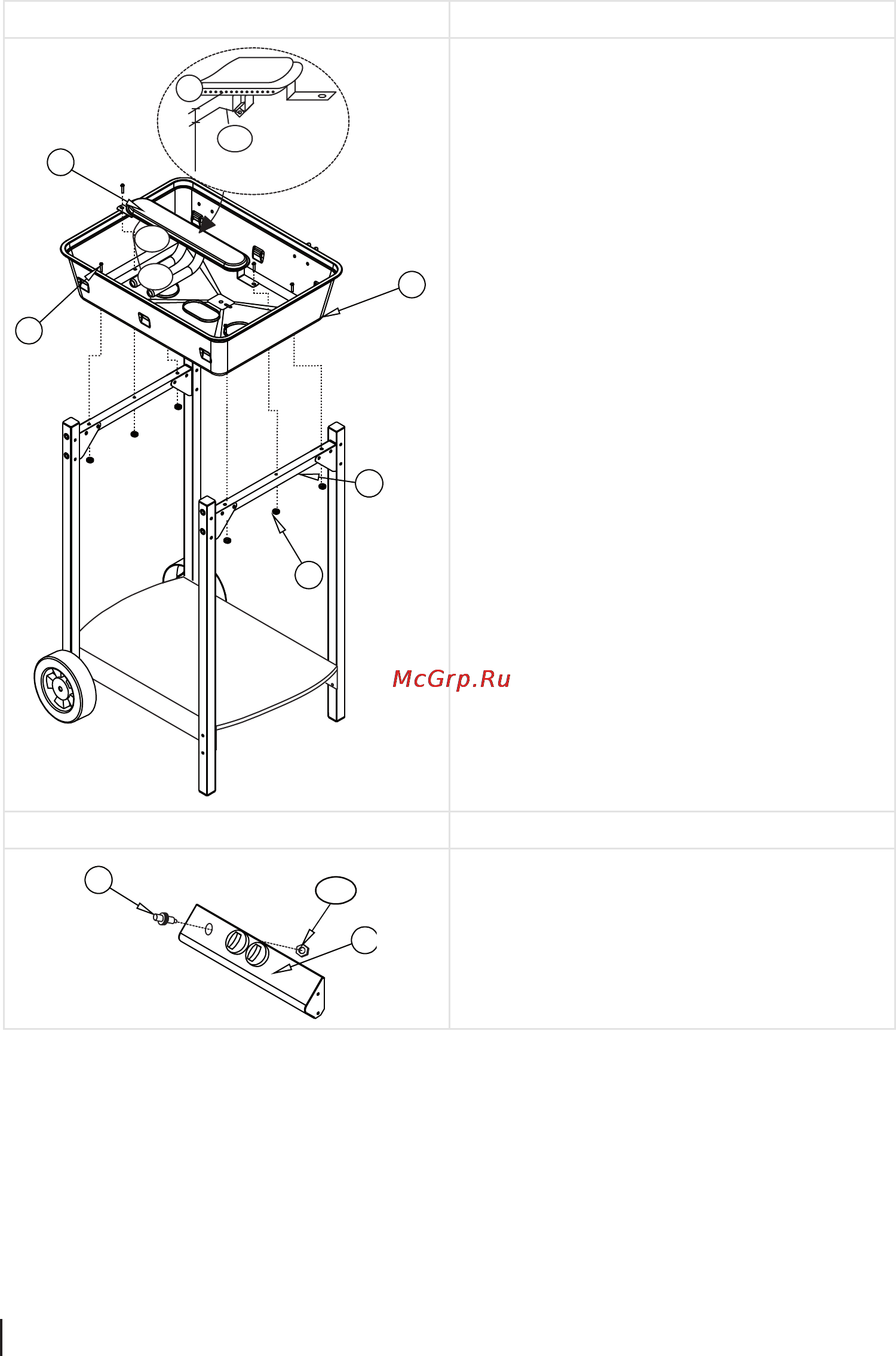

Assembly step 3

10c

2 mm

10a

10b

• Carefully position and align the re bowl (13) on the

frame.

• Secure the re bowl in place (13) with both cross bars

(17)

– Do this using four M5x30 bolts (30) and M5 nuts

(28).

Do not t both centre bolts at this stage - only t the

four outer bolts.

• Inspect the burner (10) and check the distance between

the spark plug (10c) and the gas outlets. The gap must

be approximately 2 mm. Adjust if necessary.

• Check to make sure that the burner hoses (10a) are

correctly positioned. Turn to the correct position if

necessary:

– Ignitor cable (10b) left

– Burner hoses (10a) point forwards

–

– Pass the burner hoses (10a) through the oval ope-

ning in the base of the re bowl so that the burner

hoses are facing forwards.

• Pass the igniter cable (10b) through the round left-

hand opening of the re bowl base.

• Secure the burner (10) to the base of the re bowl with

the cross bars (17) (medium bolts)

– Do this using two M5x30 bolts (30) and M5 nuts

(28).

Assembly step 4

33a

• Loosen the lock nut (33a) on the Piezo-igniter (33),

pass the Piezo igniter through the opening on the

front panel (16) and then tighten the lock nut (33a).
