GRILLCHEF

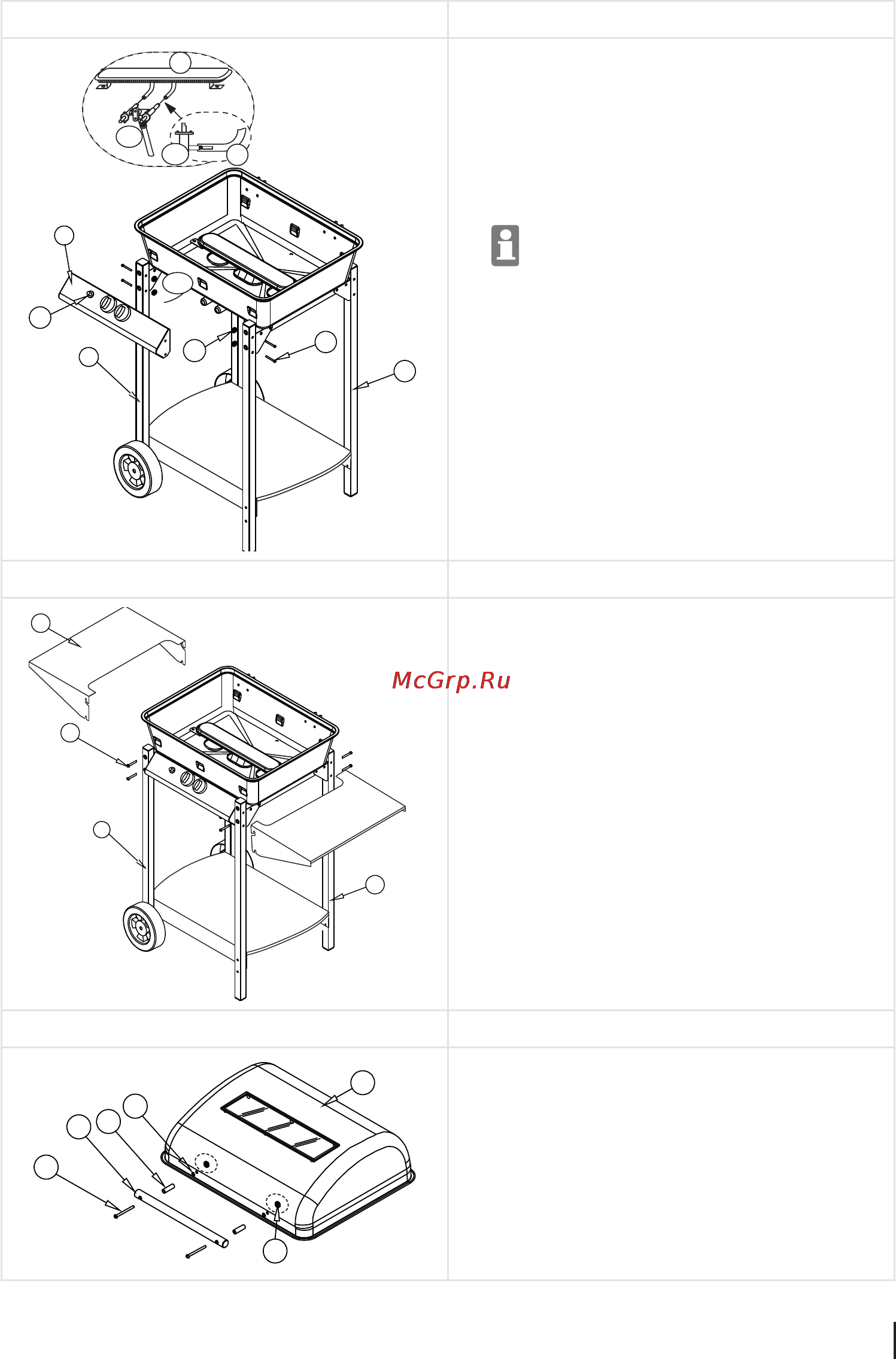

Assembly step 5

16b

10b

• Connect the igniter cable (10b) to the pin on the Piezo

igniter (33). Make sure that it is rmly secured in place.

• Position the front panel (16) between the wheel leg

(20) and the standing leg (19) so that the nozzles of

the adjusting element (16a) are inserted in the burner

hoses (10a).

The loose contact between the burner hoses (10a)

and the nozzles on the adjusting element (16a) is

intentional, as a gas/air mixture is formed via the air

vents, without which the ame would not reach a suf-

cient temperature.

• Secure the left and right side of the front panel (16) to

the wheel leg (20) and the standing leg (19). Do this

using two M5x35 bolts (24) and M5 nuts (28).

• Check to ensure that the jet on the setting device (16a)

is inserted approximately 3 - 5 mm into the burner

hose (10a).

Assembly step 6

• First screw the lower holes of the side table (14) to the

legs (19 + 20).

Do this using M6x10 bolts with integrated sleeve

(27).

• Now screw the upper M6x10 bolts with integrated

sleeve (27) into the threaded holes and mount the

side table via the upper recesses.

Assembly step 7

• Attach the lid handle (6) to the lid (1) using M5x60

bolts (7), spacer sleeves (5), heat-resistant washers

(31) and M5 nuts (28).
