Lenovo ideacentre c345, 57-311160 [26/61] Hardware components

Hardware components

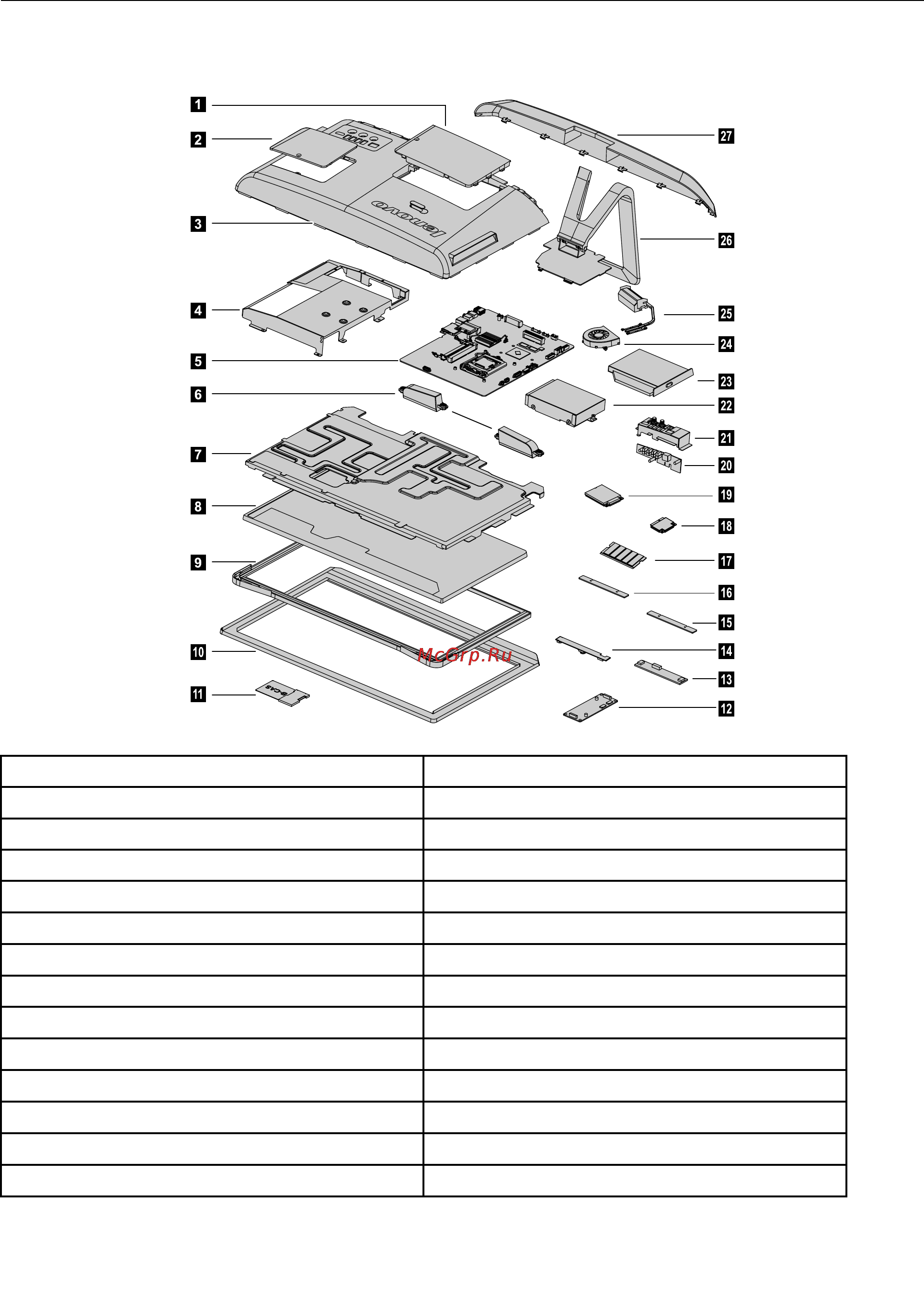

The following illustration shows the components that make up your computer.

1. Hard disk drive cover 15. Function button board

2. Memory cover

16. Power and front LED board

3. Rear cover 17. RAM

4. EMI cover 18. WLAN card

5. Motherboard 19. TV turner card

6. Speakers 20. Rear I/O Board

7. Chassis 21. Rear I/O module

8. LED panel 22. Hard disk drive

9. Touch camera module and glass

23. Optical disk drive

10. Front bezel

24. System fan

11. B-CAS card

25. Heatsink module

12. Converter 26. Computer stand

13. Touch control board

27. Speaker Cover

14. Camera

22 Lenovo C2/C3 Hardware Maintenance Manual
