Lenovo ideacentre c345, 57-311160 [27/61] Identifying parts on the motherboard

Identifying parts on the motherboard

The motherboard (sometimes called the planar or system board) is the main circuit board in your computer.

It provides basic computing functions and supports a variety of devices that are factory-installed or that you

can install later.

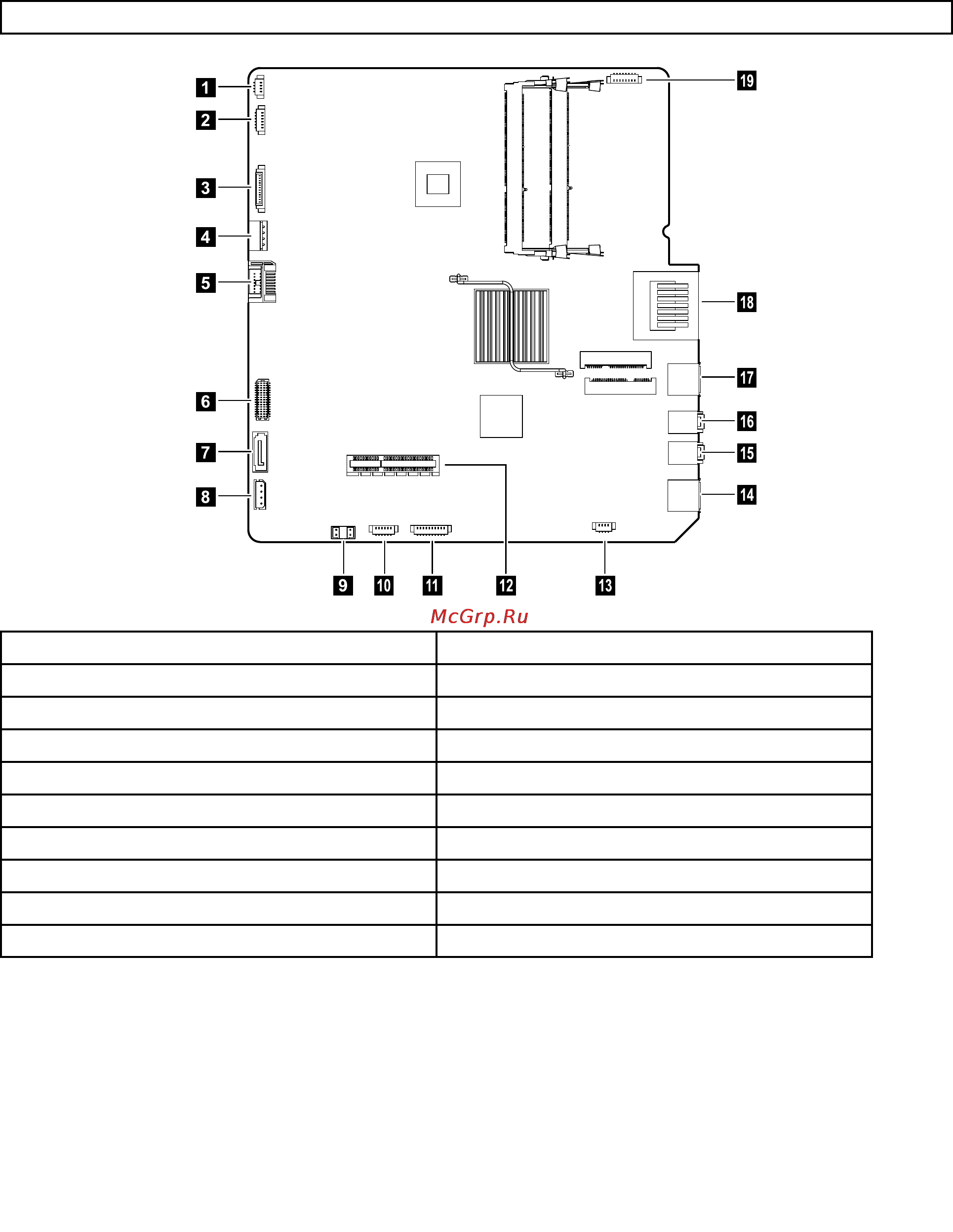

The following illustration shows the locations of parts on the motherboard for model C220.

1. System fan

11. Power Board

2. Touch Screen 12. I/O Board

3. Converter 13. Speaker

4. ODD Power 14. USB connector

5. ODD SATA

15. Microphone connector

6. LVDS

16. Headphone connector

7. HDD SATA 17. USB connector

8. HDD Power

18. Card reader connector

9. DC Jack 19. Camera

10. Function Board

Chapter 7. Replacing hardware 23
