Note: Note the orientation of the notches 1 on the microprocessor. This is important when installing

the new microprocessor on the motherboard.

Note: Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must

be kept as clean as possible.

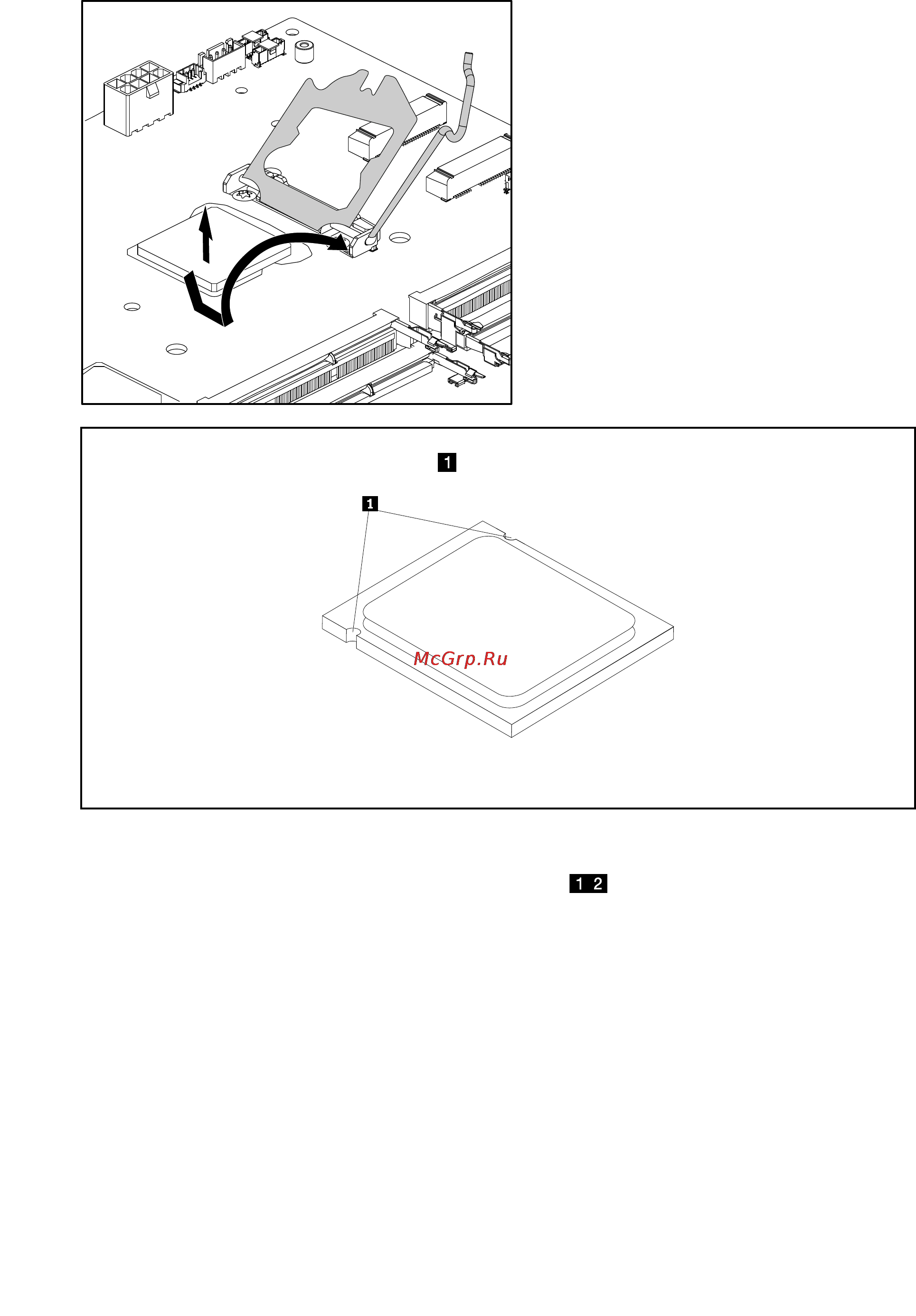

Step 12. Make sure that the microprocessor retainer is fully open.

Step 13. Holding the sides of the microprocessor with your ngers, remove the protective cover 2 that

protects the gold contacts on the new microprocessor 1 .
