Lenovo ideacentre c345, 57-311160 [37/61] Removing the computer cover

Lenovo ideacentre c360, 57-325442 [37/61] Removing the computer cover

Note: For this procedure, it helps to place the computer face-down on a soft at surface. Lenovo

recommends that you use a blanket, towel, or other soft cloth to protect the screen surface from scratches

or other damage.

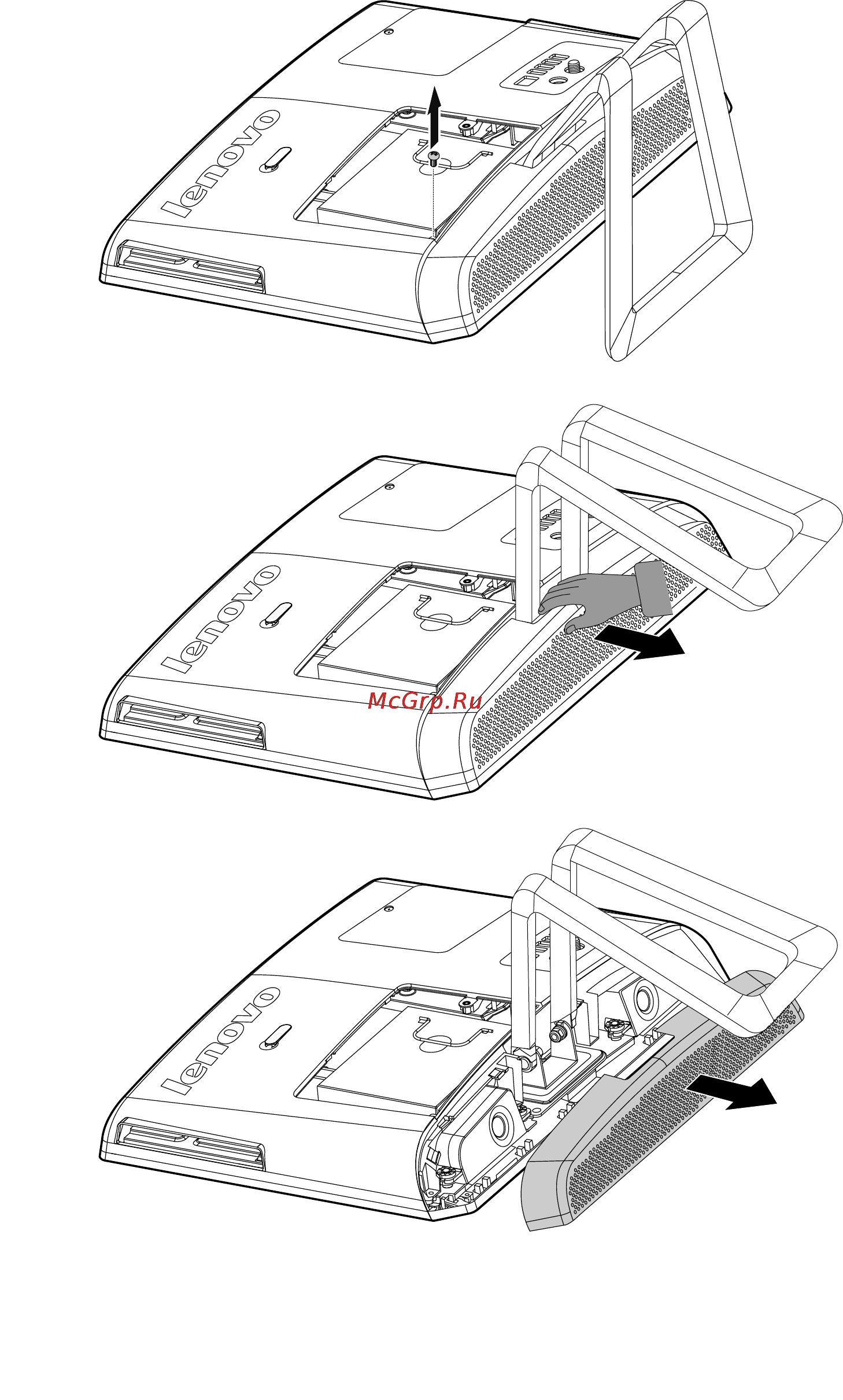

Step 1. Remove the hard disk drive cover. Refer to Removing the hard disk drive.

Step 2. Remove the screw that secures the speaker cover to the computer cover.

Step 3. Slide the hard disk drive cover out as shown.

Chapter 7. Replacing hardware 33
