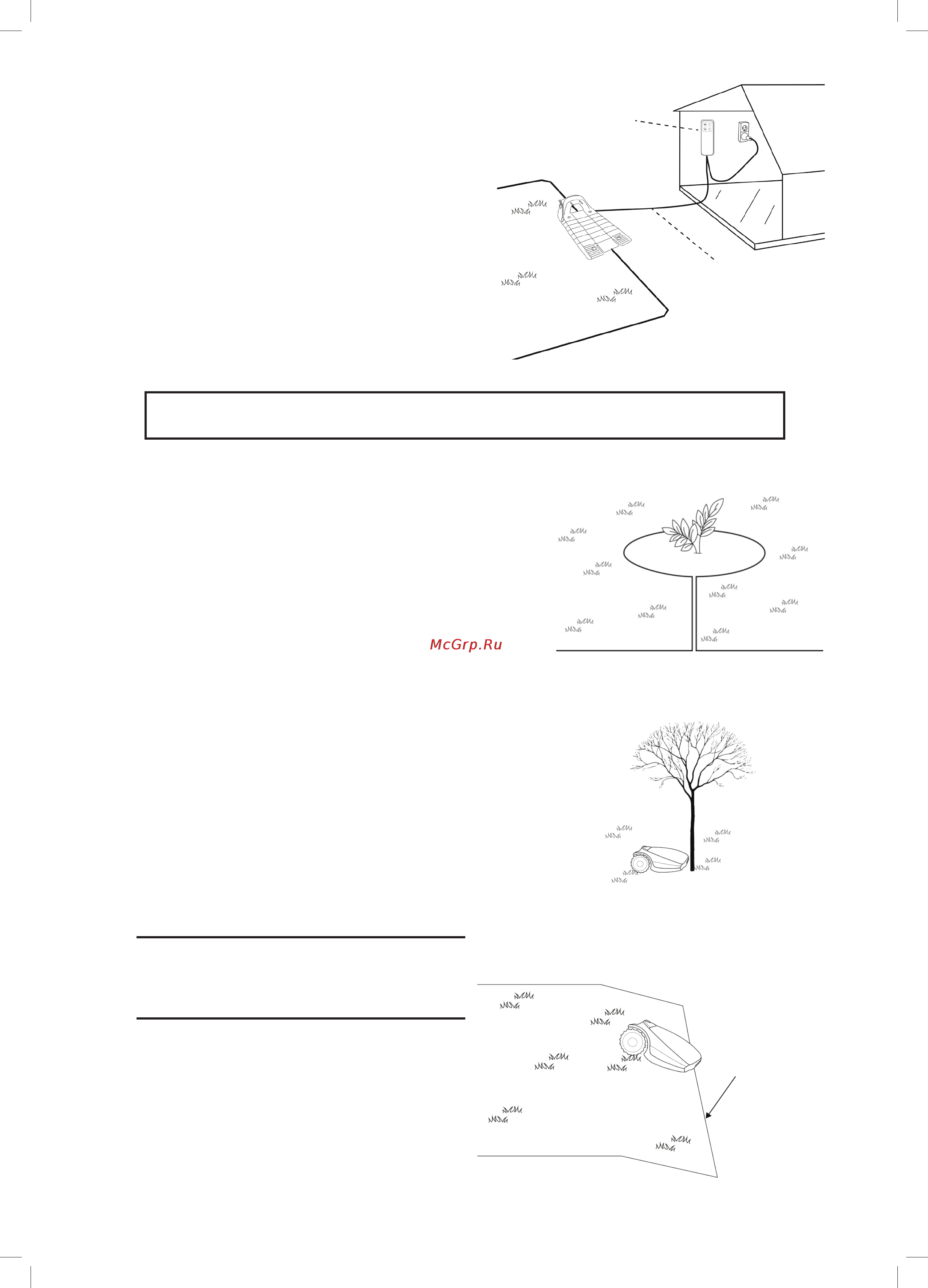

3.3 Select Power Box Locaon
Consider the following in order to select the Power Box
location:
The Power Box will be connected to the Base
Station using the 15m (50ft.) Extension Cable.
Select a suitable location for the Power Box to be
mounted on a wall near a power outlet.
Locate it outside the lawn perimeter.
Select an easily accessed spot.
Select a dry and sheltered location.
The Power Box is to be mounted vertically.
The Power Box is suitable for Outdoor use. Yet, it should be placed in a sheltered, dry
and well ventilated spot. The Power Box should not be exposed to direct sunlight or rain.
3.4 Planning the Perimeter Wire Layout
3.4.1
Objects inside
lawn
Objects such as ower beds, ponds, or small trees can
be protected by creating “Perimeter Islands”, which
are demarcated areas of the lawn, where Robomow
should not enter.
In the areas where obstacles are grouped closely
together, they should be demarcated by a single,
continuous Perimeter Island.
Obstacles that are vertical, relatively rigid, and higher
than 15 cm (6 inches), such as trees, phone or power
poles, do not need Perimeter Island. Robomow will
turn when it collides with these obstacles.
3.4.2
Slopes
Slope on the perimeter
The Perimeter Wire can be laid across a slope
that slants less than 10% (10cm rise per 1m).
CAUTION! If the Perimeter Wire is laid across
a slope steeper than 10%, there is a risk that
the mower will slip and cross outside the wire,
especially when the grass is wet’.
However, if there is a barrier (e.g. fence or wall)
that can protect the mower from slipping off, the
Perimeter Wire can be set on that slope.
15m (50ft) Extension
Cable (low voltage)
Power Box xed to
the wall
Perimeter Slope
Max. 10%
