2.2 How Robomow Works for You
• First, you need to install a perimeter wire around the entire lawn
and around protected areas within the lawn area.
• The Perimeter Wire sets the boundaries for Robomow. The
Perimeter Wire is laid on the edges of the lawn and around
trees, plants, ponds and objects that you want to prevent
Robomow to run into.
• If the supplied wire is not sufcient, more wire can be purchased
and spliced to the existing wire with a supplied connector.
• Small pegs are used to fasten the Perimeter Wire into the
ground, below grass level.
• The Perimeter Wire will gradually disappear under the growth
of new grass until it will be invisible.
• The Base Station is placed along the Perimeter Wire. It performs
two basic functions:
- Generate a signal along the Perimeter Wire.
- Charge Robomow’s batteries.
• The Power Box is connected between the Base Station and a
230V / 120V wall socket, using a 15m (50 ft.) long low voltage
cable.
• After completed the installation of the Perimeter Wire, Base Station, and the Power Box, and performing the
One-Time Setup (needs to be performed before operating Robomow for the rst time – detailed instructions
are in the following chapters), Robomow will do all the mowing for you for during the entire season!
• Robomow is a robotic lawn mower powered by a rechargable battery. It leaves its Base Station at scheduled
mowing times. Robomow mows the lawn and then drives back to the Base Station to be charged and ready for
its next scheduled mowing.
• As soon as Robomow departs for mowing, the Base Station automatically triggers a special signal by the
Perimeter Wire. This signal creates a virtual wall, visible only to Robomow. This signal keeps Robomow within
the lawn boundaries, and prevents it from entering areas it was intended to skip or protect.
• In order to prevent lawn’s damage at the Base Station area and in order to improve lawn’s coverage, Robomow
will drive from the Base Station at a random distance (between 90cm to 120cm) and will randomly select an
angle of departure between 40 to 90 degrees.

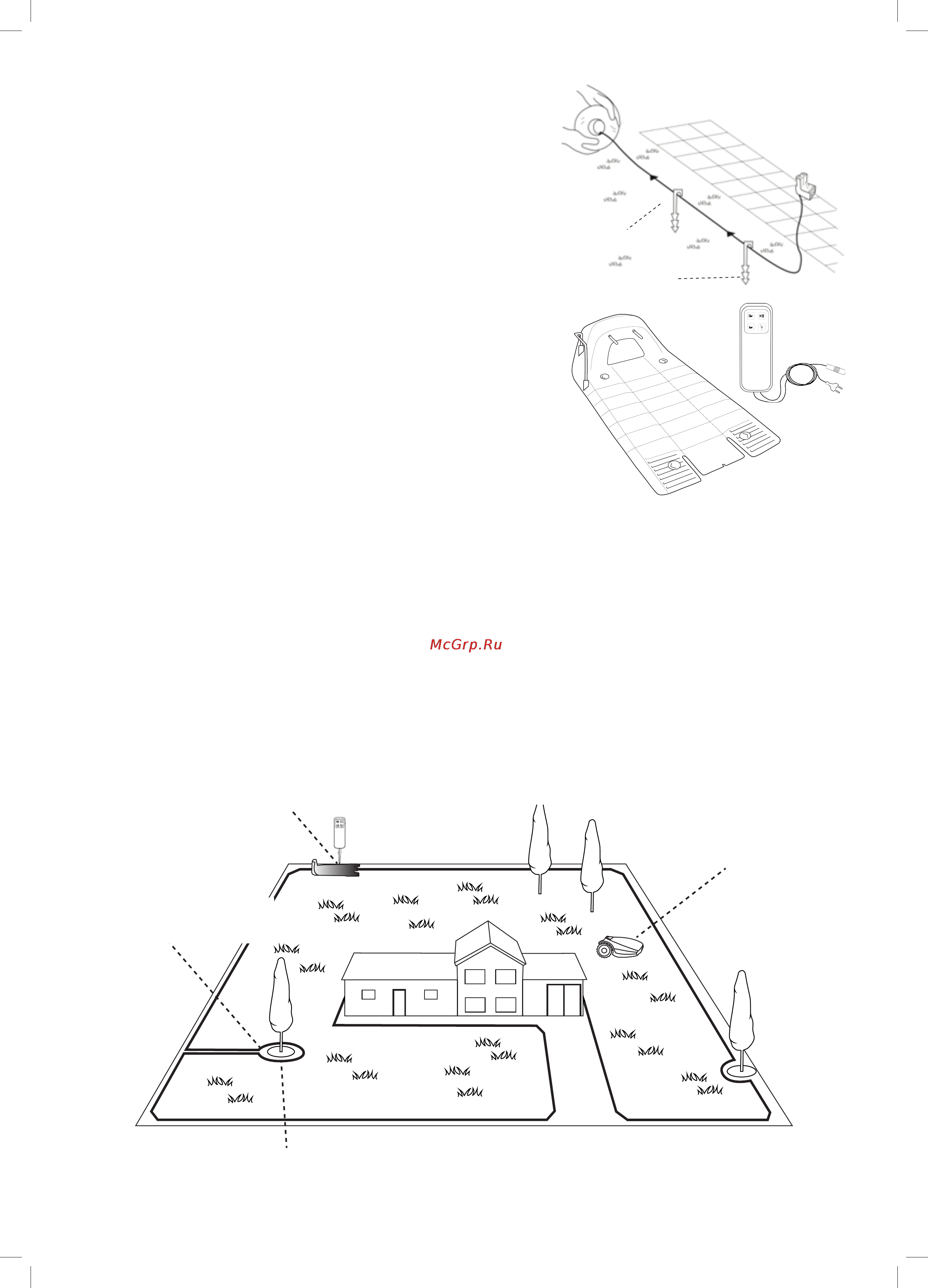

Large trees: Robomow is allowed to bump into
them. at this size the objects do not require a
Perimiter Wire around them
Base Station and Power Box:
- Generates signal along the wire.
- Charges Robomow’s battery.
Robomow detects the
signal and changes
direction as it reaches
the wire
Perimiter wire as a virtual
wall, visible only to Ro-
bomow
Tree surrounded by a groove, ditch or ower beds requires
a qire around it.
Peg
Perimiter Wire
