31
Overview of Components

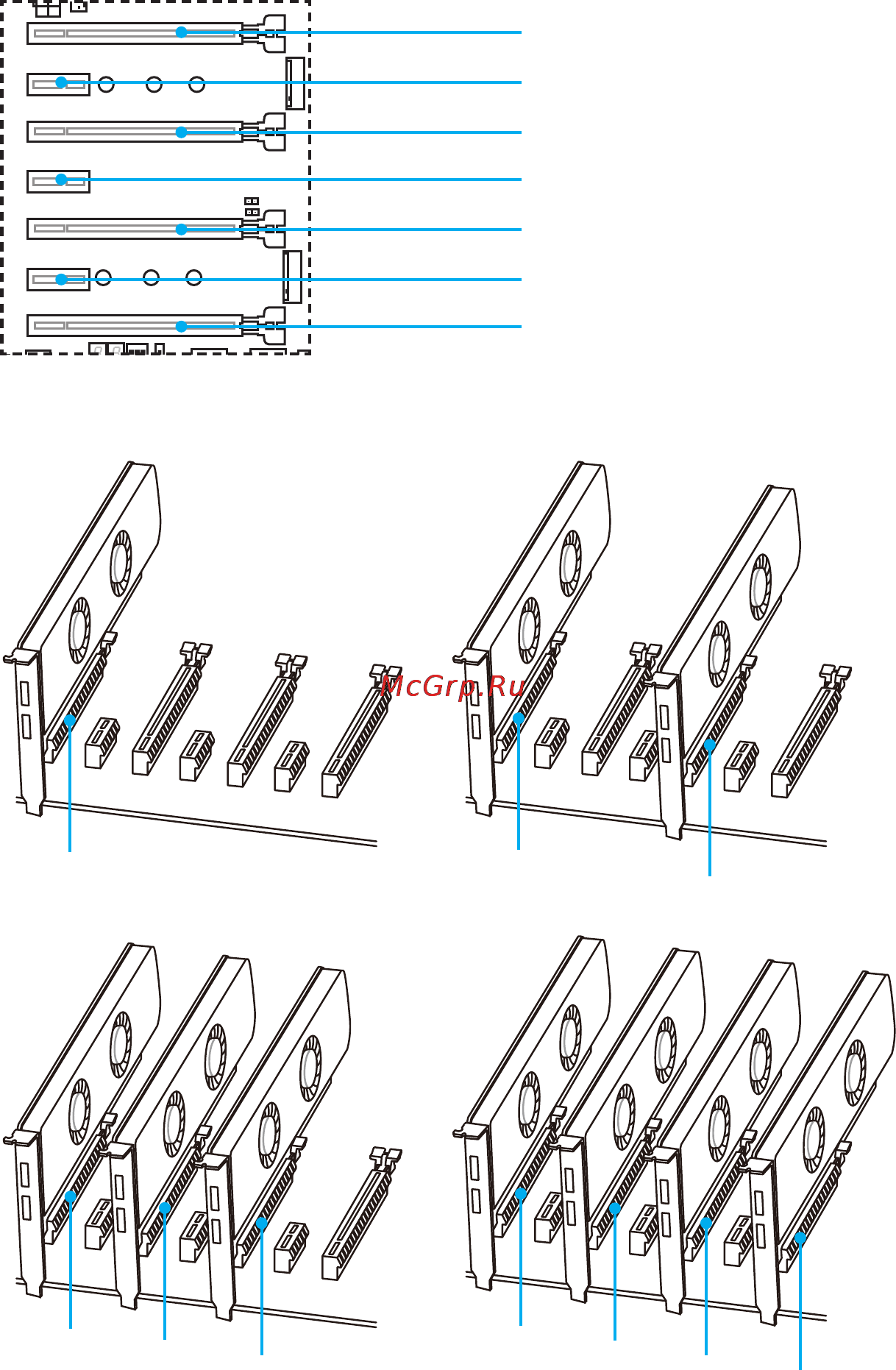

PCI_E1~7: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 slot
PCI_E2: PCIe 3.0 x1 slot
PCI_E3: PCIe 3.0 x4 slot
PCI_E4: PCIe 3.0 x1 slot
PCI_E5: PCIe 3.0 x8 slot
PCI_E6: PCIe 3.0 x1 slot
PCI_E7: PCIe 3.0 x4 slot
x16
x8
x8
x8
x8
x4
x4
x4
x4
x4
Multiple graphics cards installation recommendation
