42
Overview of Components

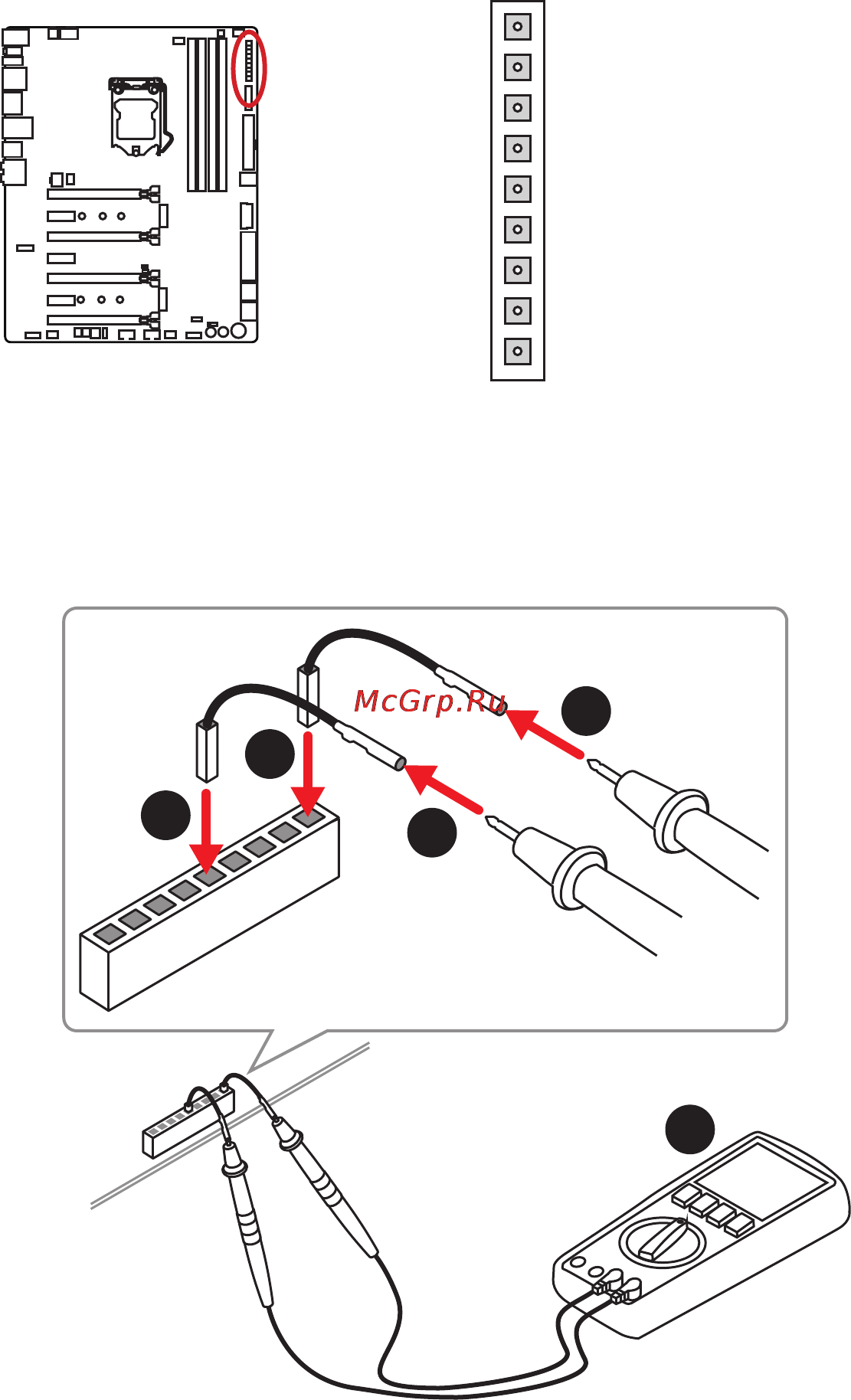

FV1: V-Check Points Connectors
These voltage checkpoints are used to measure the current system voltages. A
multimeter (not included) will be required to check voltages.
VCCSA
GND
1
9
VCCIO
DDR
GPU
CPU
PCH
GND
GND
To measure voltage, please use the optional voltage checkpoint cables included in the
motherboard package and follow the below steps:
1. Insert the cube end of the V-Check cables into the GND pin and the voltage pin you
want to measure.
2. Connect circular end of the V-Check cables to the test leads.
3. Measure voltage with your multimeter.
1
1
2
2
3
