ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and

unplugged before carrying out any work on the

tool.

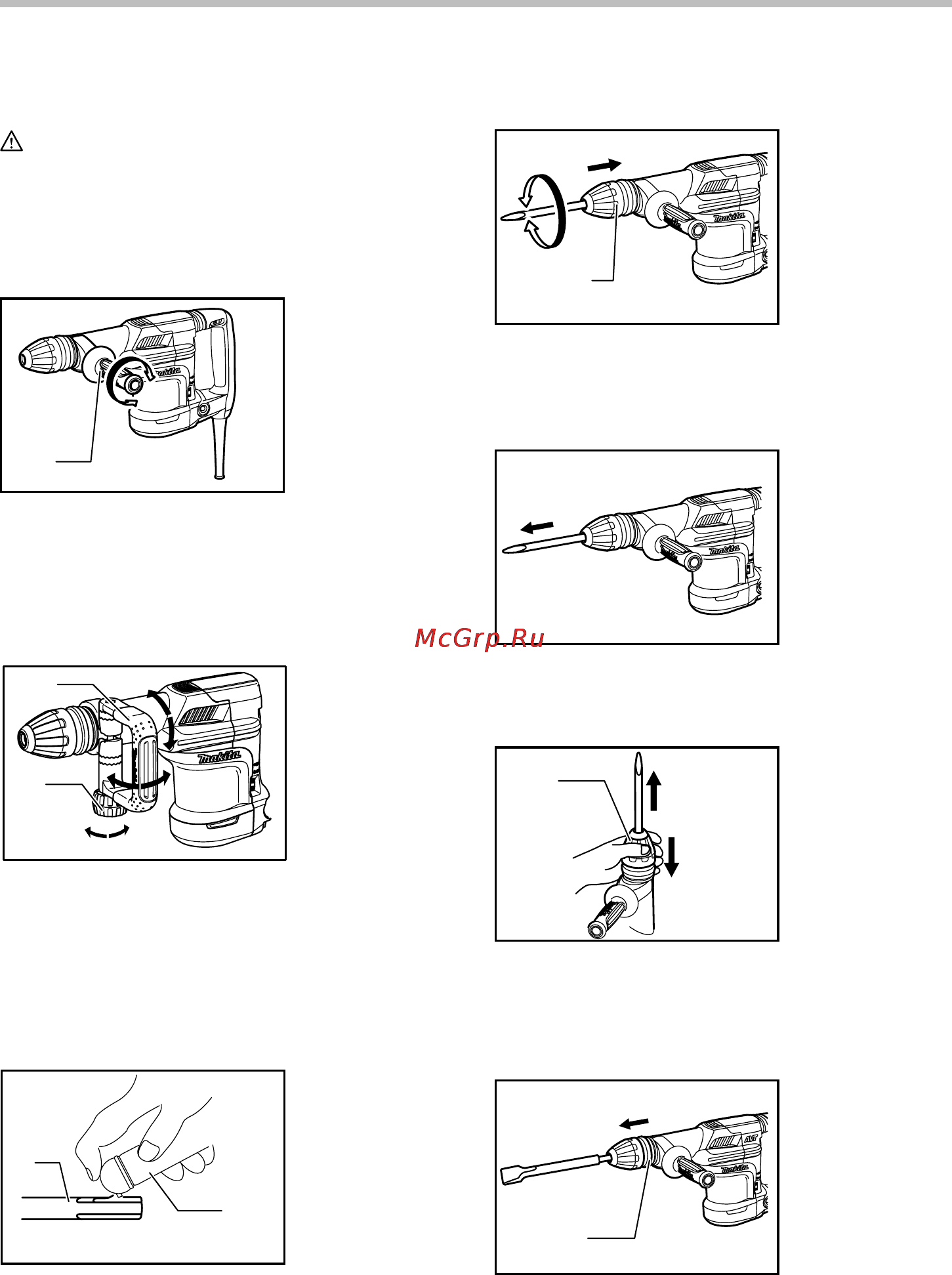

Side handle (auxiliary handle)

For tool with stick type side handle

010494

The side grip swings around to either side, allowing easy

handling of the tool in any position. Loosen the side grip

by turning it counterclockwise, swing it to the desired

position and then tighten it by turning clockwise.

For tool with D-shaped side handle

010453

The side handle can be swung 360° on the vertical and

secured at any desired position. It also secures at eight

different positions back and forth on the horizontal. Just

loosen the clamp nut to swing the side handle to a

desired position. Then tighten the clamp nut securely.

Installing or removing the bit

009664

Clean the bit shank and apply bit grease before installing

the bit.

Insert the bit into the tool. Turn the bit and push it in until

it engages.

010489

If the bit cannot be pushed in, remove the bit. Pull the

releasing cover down a couple of times. Then insert the

bit again. Turn the bit and push it in until it engages.

010490

After installing, always make sure that the bit is securely

held in place by trying to pull it out.

010491

To remove the bit, pull the releasing cover down all the

way and pull the bit out.

Bit angle

010492

1. Change ring

1. Releasing cover

1. Bit shank

2. Bit grease

1. D-sided side

handle

2. Clamp nut

1. Side grip

(auxiliary

handle)
