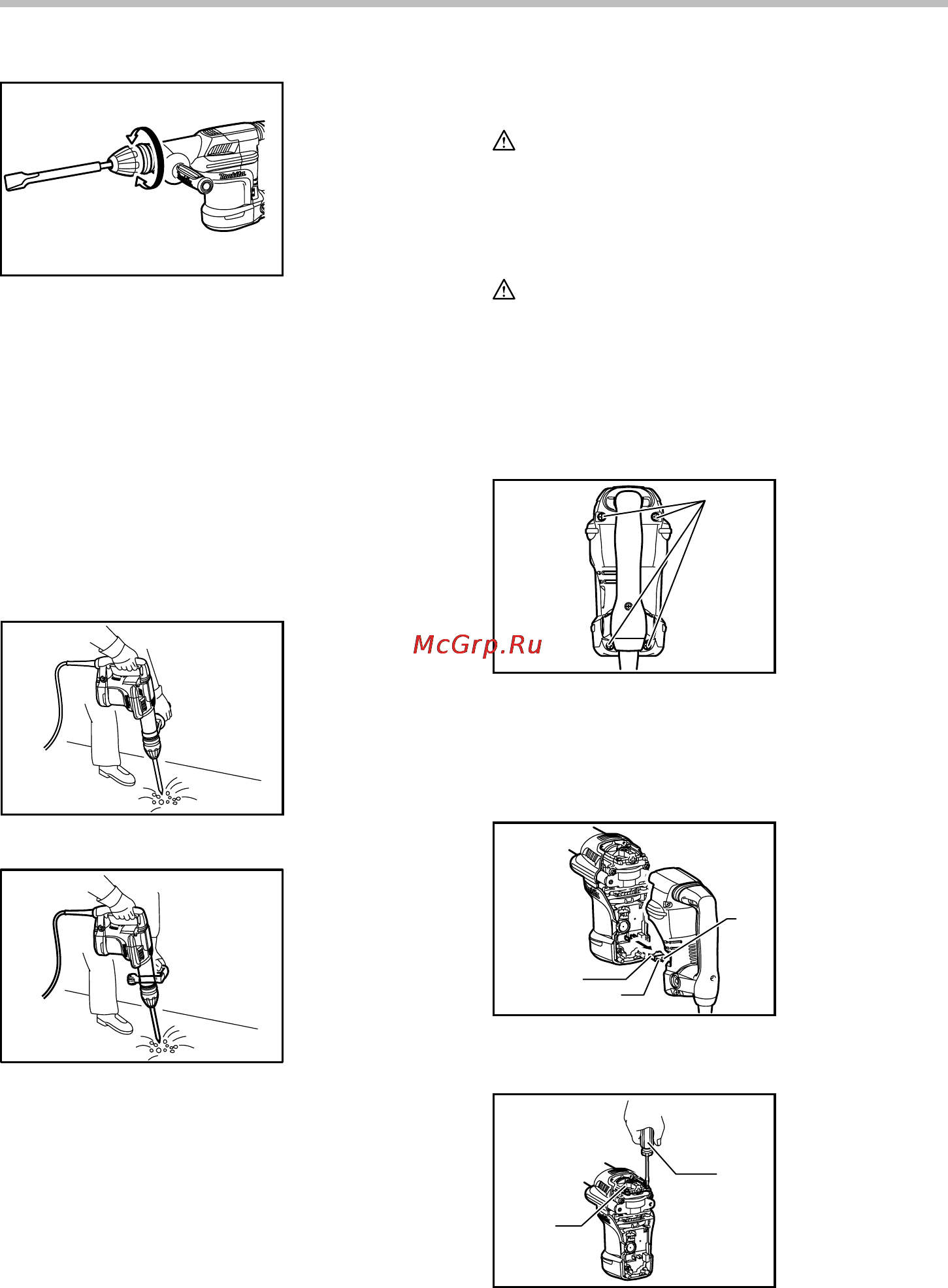

7
010493
The bit can be secured at 12 different angles. To change
the bit angle, slide the change ring forward, then turn the
change ring to change the bit angle. At the desired angle,
slide the change ring back to the original position. The
bit will be secured in place.
NOTE:
• The change ring cannot turn when the bit is not
installed on the tool.
OPERATION
Chipping/Scaling/Demolition
010495
010455
Always use the side grip (auxiliary handle) and firmly
hold the tool by both side grip and switch handle during
operations. Turn the tool on and apply slight pressure on
the tool so that the tool will not bounce around,
uncontrolled. Pressing very hard on the tool will not
increase the efficiency.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Lubrication
CAUTION:
• This servicing should be performed by Makita
Authorized Service Centers only.
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. It should be
lubricated every time the carbon brushes are replaced.
Send the complete tool to Makita Authorized Service
Center for this lubrication service.
1
010458
Run the tool for several minutes to warm it up. Switch off
and unplug the tool.
Loosen the four screws and remove the handle. Note
that the top screws are different from other screws.
1
2
3
010457
Disconnect the connector by pulling them.
1
2
010459
1. Screwdriver
2. Crank cap cover
1. Connector
2. White
3. Black
1. Screws
