Microlab m1910 [3/4] Subwoofer

Important Safety Instructions

WARNINGS:

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.

2. Retain Instructions - The safety and operating instructions should be kept product for future reference.

3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow instructions - All operating and user instructions should be followed.

5. Installation - Install in accordance with the manufacturer's instructions.

6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to

the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local

power company.

7. Grounding or polarization - the product is not required to be grounded. Ensure the plug is fully inserted into the wall

outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped

with a power cord fitted with a polarized alternating line plug (a plug having one blade wide than the other). This

plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully

into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your

obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply

cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate

molded plugs and carry safety approval appropriate to the country of use.

8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked

or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the

point where they exit from the product.

9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or

electric shock.

10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do

not cover the product with any items such as tablecloths, newspapers, etc.

11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other

products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on

the apparatus.

12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or

excessive moisture such as in a sauna or bathroom. Do not use this product near waterfor example, near a bathtub,

washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and the like.

13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch

dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on

the product. Do not place any object containing liquid on top of the product.

14. Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer may be cleaned by

dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the

cloth. Be careful not to damage the drive units.

15. Attachments - Do not use attachments not recommended by the product manufactures, as they may cause hazards.

16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing

serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table

recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturers’

instructions and should use a mounting accessory recommended by the manufacturer.

17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and

uneven surfaces may cause the product and cart combination to overturn.

18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when

the apparatus is left unused for a long period of time.

19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified service personnel.

Caution:

To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No

user-serviceable parts inside. Refer servicing to qualified personnel only.

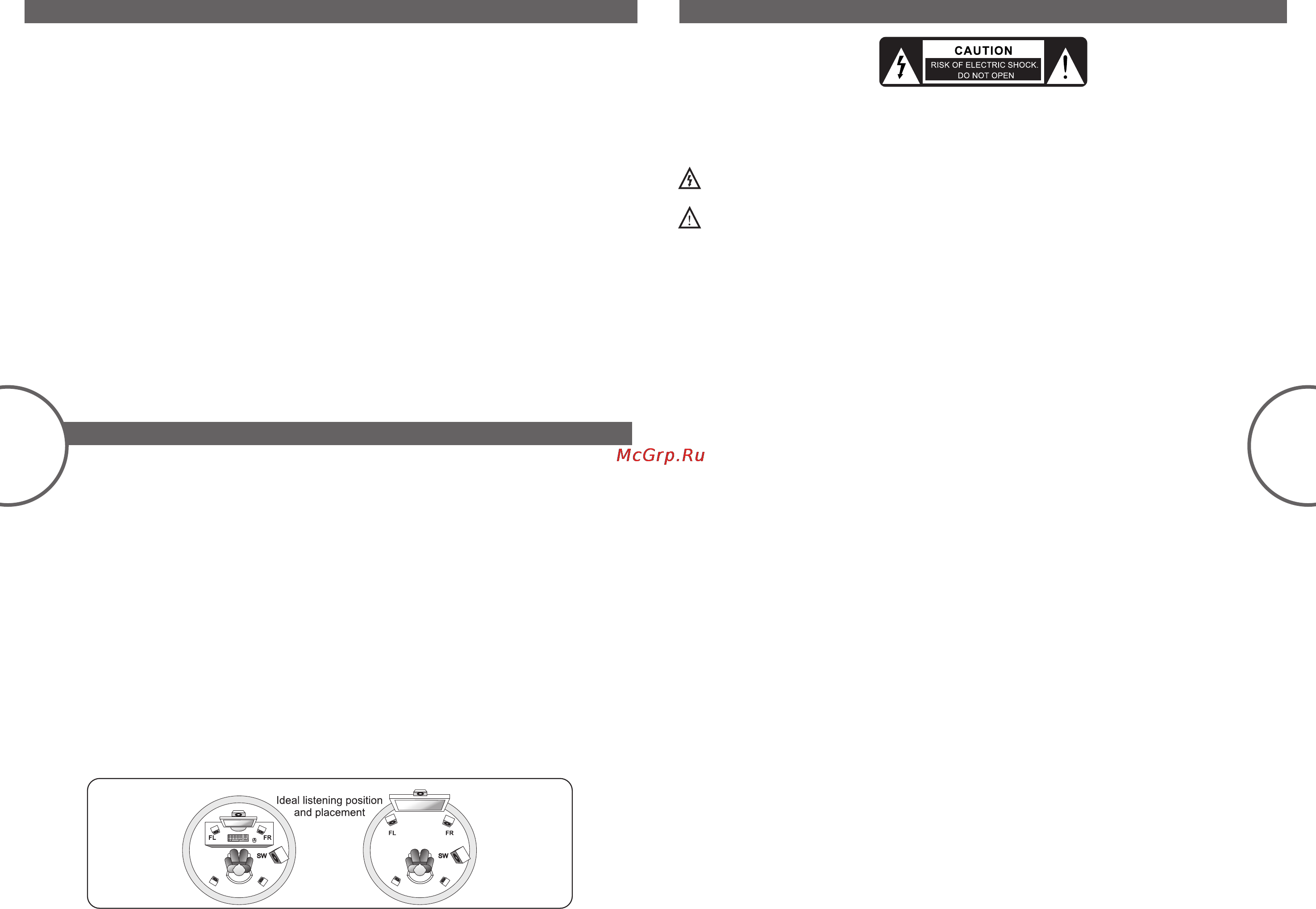

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage

within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying the product.

Explanation of Graphical Symbols:

Connections

1. Connect the satellites to the left and right RCA outputs at the rear panel of the subwoofer.

2. Place both satellites on extreme sides of the listening position.

3. Connect the rear satellites to the rear left and right outputs.

4. Place both satellites to the extreme sides at the rear of the listening position.

5. Place the subwoofer on the floor and with its back near the wall for more bass.

6. Connect the center satellite to the center output at the rear panel of the subwoofer, and place this

above the LCD monitor or TV.

For Stereo source;

7. Connect the playback device to the rear stereo RCA inputs with the included signal cable.

For 5.1 channel source;

8. Connect the 5 input channels respectively to the rear panel 5 channel RCA inputs.

For Coaxial source;

9. Use the included coaxial cable and connect from digital processor to the coaxial port at the rear of the

subwoofer.

For Optical source;

10. Connect from the digital processor to the TOSlink port at the rear of the subwoofer with the included

optical cable.

11. Next, connect the power cable at the rear of the subwoofer to the AC power supply source. Please

ensure the AC power supply match the power requirement printed at the rear panel.

12. For the remote control, please ensure fresh battery is correctly loaded.

1. Ensure the master volume is at the lowest setting.

2. Turn on the main AC power and switch on the speaker system from the rear power switch.

3. The power LED will illuminate and the default 5.1 mode will be displayed.

4. Start the playback device and song.

5. Adjust the volume on the media player, and speaker master volume to your preferred listening level.

6. For sound effects, bass and front levels can be adjusted from the front panel or remote control.

7. For remote control, simply point directly at the subwoofer and adjust the volume control. The remote

control features input selection, sound effect level adjustments and mute.

8. The volume control is factory defaulted at the value 16.

9. For more input options, depress the master volume to toggle the different input source types. The

toggle will loop the selections from 5.1, to AU 16, CO 16, OP 16, and then back to 5.1 again. The LED

display 5.1 represents the source selection from the 5.1 channel connections. AU 16 represents the

AUX stereo channel, CO 16 represents the Coaxial connection, and OP 16 represents the optical

TOSlink connection.

10. The system can be placed temporary on hold by depressing the ST-BY button on the front panel or

remote control.

11. For short pause during playback, depress the mute button to silence the system.

Operations

CE N

SL SR SL SR

CE N

FL - front left

FR - front right

SW - subwoofer

SL - surround left

SR - surround right

CE N - center

80-M1910-97-0001-01 2012-05-09 (Change remote control and front panel)
